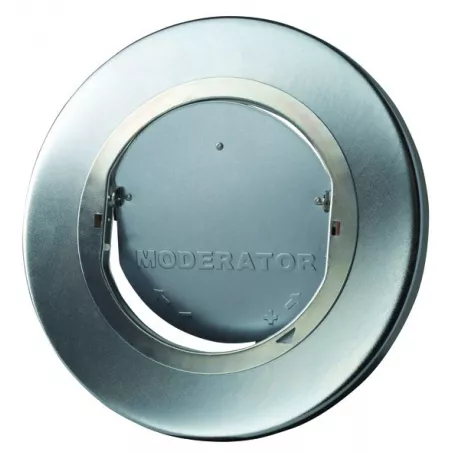

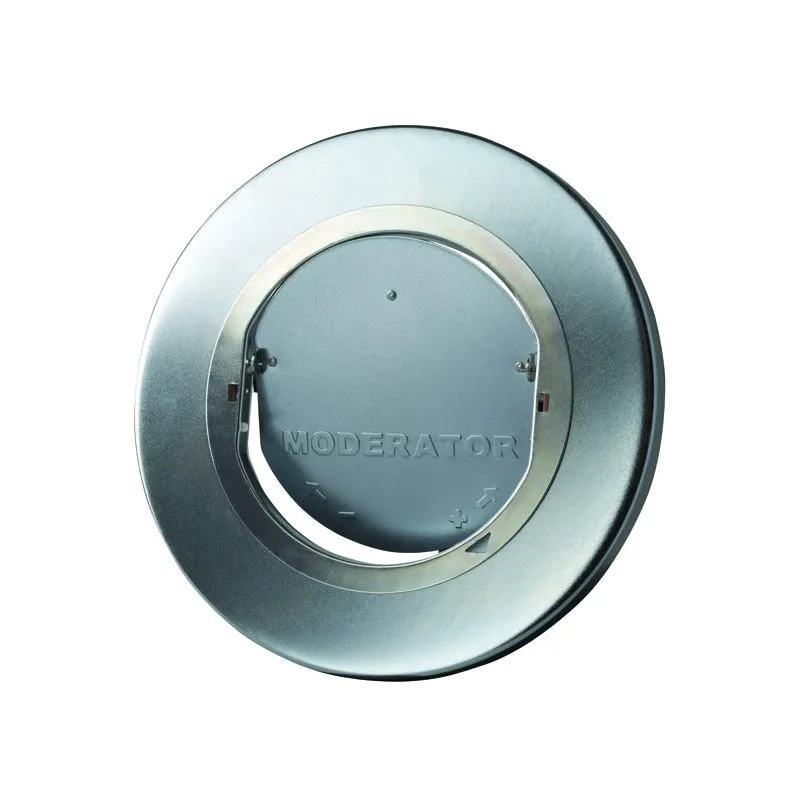

MODERATOR Steel Draft Stabilizer for Chimney Flues

Function:

The MODERATOR draft stabilizer improves draft efficiency. It acts as a safety valve in the event of an explosion

Models: B
Series: Diameter 280 to 344 mm;
M Series: Diameter 400 to 448 mm with adjustable counterweight.

Plus de détails
1
ø 97 à 140
Are you an individual?
Are you a professional?

Log in to find out your discount.

€63.42 Tax included

52.85 € tax excl.

Unité de vente : Pièce
STABMOA000000B1
Dimensions: Ø 97 À 140
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information MODERATOR Steel Draft Stabilizer for Chimney Flues

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional features:

With the MODERATOR, the flue gas temperature is maintained between 120 and 130°C, allowing the stove to operate for 24 hours.
Combustion is thus very steady, and the draft is maintained at 1.2 mm Hg.

"B" Series for residential use:

Simple adjustment, no measuring device required
. Maximum damper opening.
No knob. Very wide and flexible adjustment by rotating the damper. Automatic
centering and positioning thanks to an anti-overpressure mounting. Outer
damper bearing and shafts made of stainless steel and in no contact with the flue gas.

"M" Series for industrial use:

Stainless steel damper shaft. Stainless steel
anti-clogging cup-shaped damper shaft
bearing. Rigid aluminum die-cast frame, oven-baked epoxy paint.
Stainless steel mounting springs
. Adjustment knob made of insulating material.

Caractéristiques techniques MODERATOR Steel Draft Stabilizer for Chimney Flues

Data sheet

Reference
STABMOA000000B1
Matière
Acier
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830008666

Download documentation

FT SB1

Fiche technique Stabilisateur de tirage MODERATOR en acier

Download (632.51KB)

Caractéristiques liées à la version du produit MODERATOR Steel Draft Stabilizer for Chimney Flues

Voici la liste des références et poids correspondants aux options séléctionnées.
STABMOA000000B1 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 97 À 140
Dimensions Ø 97 À 140
Packed weight 0,21kg
52.85 € tax excl.
Consulter
STABMOA000000B2 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 140 À 200
Dimensions Ø 140 À 200
Packed weight 0,504kg
67.02 € tax excl.
Consulter
STABMOA000000B3 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 200 À 280
Dimensions Ø 200 À 280
Packed weight 1,4175kg
171.41 € tax excl.
Consulter
STABMOA000000M4 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 280 À 344
Dimensions Ø 280 À 344
Packed weight 3,15kg
481.91 € tax excl.
Consulter
STABMOA000000M5 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 400 À 448
Dimensions Ø 400 À 448
Packed weight 5,04kg
794.43 € tax excl.
Consulter
Référence - Désignation Dimensions Packed weight Prix
STABMOA000000B1 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 97 À 140 Ø 97 À 140 0,21kg 52.85 € tax excl.
STABMOA000000B2 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 140 À 200 Ø 140 À 200 0,504kg 67.02 € tax excl.
STABMOA000000B3 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 200 À 280 Ø 200 À 280 1,4175kg 171.41 € tax excl.
STABMOA000000M4 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 280 À 344 Ø 280 À 344 3,15kg 481.91 € tax excl.
STABMOA000000M5 - MODERATOR Steel Draft Stabilizer for Chimney Flues - Ø 400 À 448 Ø 400 À 448 5,04kg 794.43 € tax excl.
