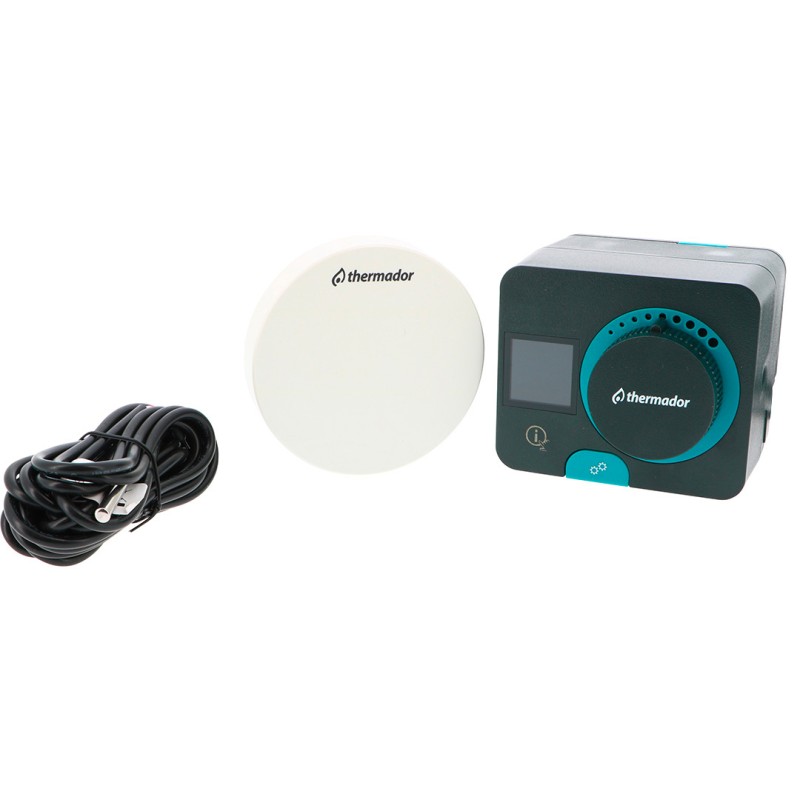

Compact programmable heating and cooling controller

Application:

It is used to control the mixing valve and circulation pump to regulate the flow temperature, in heating or cooling, according to the outdoor temperature.

The compact, weather-compensated heating controller is integrated into the actuator housing.

It can be mounted directly on more than 20 mixing valves from different manufacturers.

It can also be used in systems without an outdoor sensor, but requires the use of a room unit.

It is integrated into the actuator housing.

Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€577.51 Tax included

481.26 € tax excl.

Unité de vente : Pièce
RECOPRCR0000000
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Programmable compact controller for heating and cooling

Technical specifications:

  • Dimensions: (L x H x W) 86.5 x 80.3 x 95 mm
  • Controller weight: ~ 800 - 1000 g
  • Controller housing: PC - thermoplastic
  • Torque: 5 Nm
  • Angle of rotation: 90
  • Rotation speed: 2 min / 90 °
  • Type of operation: 3-point, PID
  • Supply voltage: 230 V ~, 50 Hz
  • Operating power consumption: Max. 3.5W
  • Standby power consumption: Max. 0.5W
  • Circulation pump control: 2-point (ON/OFF)
  • Relay output: Electronic relay, 1 (1) A ~, 250 V~
  • Degree of protection: IP42 to EN 60529
  • Protection class: I to EN 60730-1
  • Internal clock accuracy: ± 5 min/year
  • Ambient temperature: +5°C to +40°C
  • Relative humidity: max. 85% rH at 25°C
  • Storage temperature : -20 °C to +65 °C
  • Software class : A
  • Power-down data retention : Min. 10 years

Construction :

  • Controller
  • Outdoor temperature sensor
  • PT1000

Caractéristiques techniques Programmable compact controller for heating and cooling

Data sheet

Reference
RECOPRCR0000000
Unité de vente
Pièce

Download documentation

FT RA230AC

Fiche technique RA230AC

Download (1.66MB)

NM RA230AC

Notice de montage RA230AC

Download (2.01MB)
