Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4" 61 °c

Réhausseur de température pour chaudière
Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
search
  • Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • schéma Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • schéma Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • schéma Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • schéma Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • Dimension Kit complet THERMOVAR COMBI laiton + isolation 1"1/4
  • schéma démonté Kit complet THERMOVAR COMBI laiton + isolation 1"1/4

Photos non contractuelles

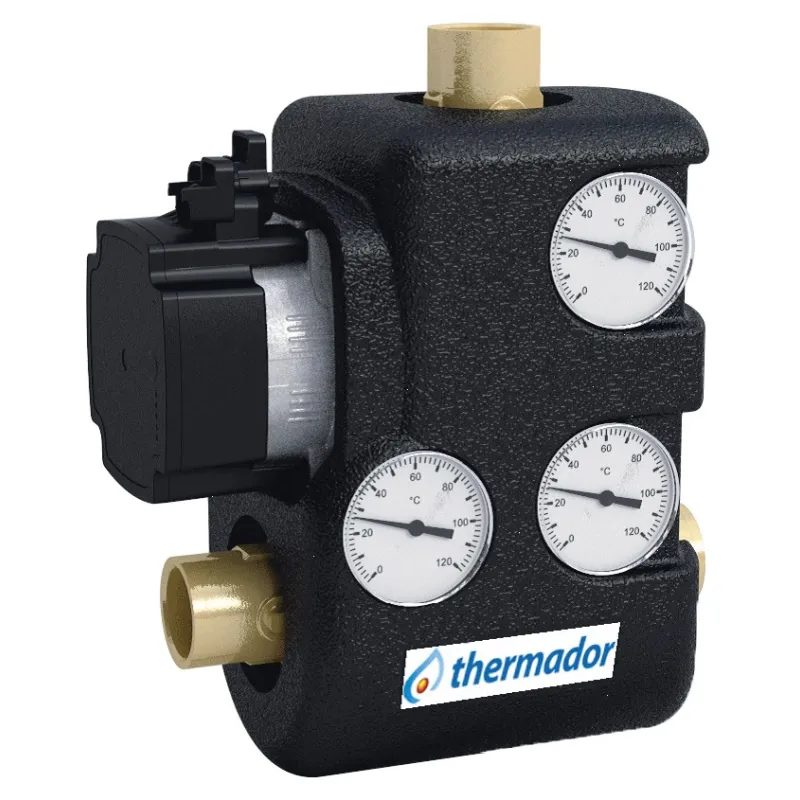

New-generation THERMOVAR kit with COMBI brass electronic circulator + insulation for solid fuel heating systems, 1-1/4"

Function:

In solid fuel heating systems, this module eliminates condensation (dew point)
in the boiler’s combustion chamber.

Available in 61°C or 72°C versions

Kits are delivered with insulation included. New brass body models.

Maximum glycol content: 50%

Compliant with ERP 2015

Plus de détails
Normes et certifications : ERP 2015Type de raccordement : Á visser BSP (pas du gaz)1
61 °c
Are you an individual?
Are you a professional?

Log in to find out your discount.

€770.92 Tax included

642.43 € tax excl.

Unité de vente : Le kit
KMOVAL610000F32
Temperature ranges: 61 °C
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4"

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Initially, it recirculates water through the boiler to help raise the temperature (Figure 1). When the boiler temperature reaches the setpoint of the Thermovar-combi cartridge (61°C or 72°C), the module mixes the return water from the buffer tank or the system return with the recirculation flow to maintain the return temperature to the boiler (Figure 2). Finally, when the return temperature from the tank or the system is sufficiently high, there is no longer any mixing with the recirculation flow (diagram 3). In the event of a power outage or circulator failure, circulation occurs via the thermosiphon effect (diagram 4).

Functional specifications:

  • Rated voltage: 230 VAC 50 Hz
  • Power consumption: Max. 52 W
  • Max. boiler power: 65 kW at 20°C T
  • Return temperature: 60°C or 70°C
  • Operating temperature: Min. +5°C / Max. +110°C
  • Ambient temperature: Min. +5°C / Max. +70°C
  • Max. operating pressure: 10 bar
  • Fluid: Water - Glycol max. 50%
  • Connections: 1-1/4"
  • Circulator: Grundfos UPM3 AUTO L xx-70
  • Max. flow rate: 2.8 m³/h
  • Valve body material: Brass EN1982 CB753S
  • Insulation material: Expanded polypropylene (EPP)

Caractéristiques techniques Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4"

Data sheet

Reference
KMOVAL610000F32
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FFF (femelle - femelle - femelle)
Diamètre
1"1/4
Pression maximum
10 bar
Température minimum
5°C
Température maximum
110°C
Fluide admissible
Bois et biomasse
Tension électrique
230V monophasé
Fréquence
50Hz
Normes et certifications
ERP 2015
Équipements
Coque d'isolation Thermomètre
Unité de vente
Le kit
Garantie fabricant
1 an

Specific References

ean13
3523830041694

Download documentation

FT TC61L

Fiche technique kit complet THERMOVAR COMBI laiton + isolation

Download (850.61KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4"

Voici la liste des références et poids correspondants aux options séléctionnées.
KMOVAL610000F32 - Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4" - 61 °C
Temperature ranges 61 °C
Packed weight 6,3kg
642.43 € tax excl.
Consulter
KMOVAL720000F32 - Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4" - 72 °C
Temperature ranges 72 °C
Packed weight 6,3kg
623.74 € tax excl.
Consulter
Référence - Désignation Temperature ranges Packed weight Prix
KMOVAL610000F32 - Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4" - 61 °C 61 °C 6,3kg 642.43 € tax excl.
KMOVAL720000F32 - Complete THERMOVAR COMBI Brass Kit + Insulation 1-1/4" - 72 °C 72 °C 6,3kg 623.74 € tax excl.
