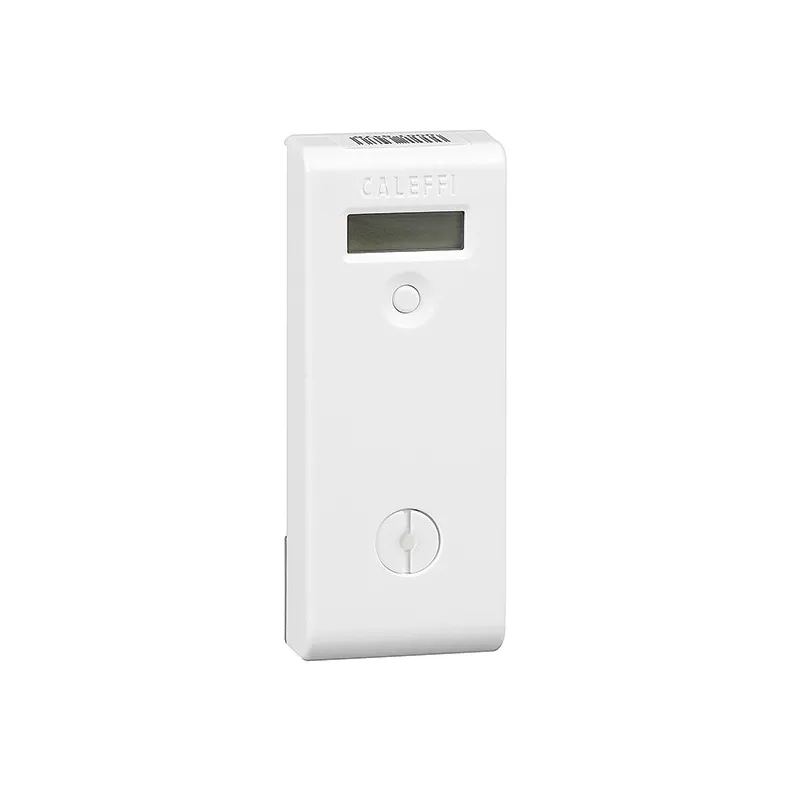

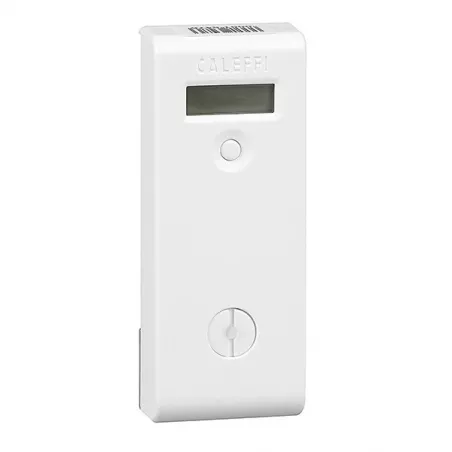

MONITOR 2.0 PULSE Radio Transmitter with Mounting Kit

• Lithium battery:

3 V (—--- ), maximum battery life of 10 years (under normal use for display and radio transmission queries).

• Materials:

Housing: PC, ABS

• Counting range:

Reading range: 0 to 999,999.999 Meter reading
recording: daily for 18 months and the last 36 month-end readings Acceptable
value range: 1 to 1,000 L per pulse
Unit of measurement: m³ - kWh

• Certifications:

Directive 1999/5/EEC (R&TTE)

• Display:

Display readout: Screen test, warnings and faults, current reading and previous fiscal year’s reading, previous fiscal year’s historical date, operating status, serial number.

• Transmission:

Wireless, bidirectional transmission, activated ONLY during the reading phase for 0.1 s, 868.0–868.6 MHz, 10 mW.

• Other properties / Features:

Capable of centralizing readings via a data concentrator.
Periodic self-diagnosis of proper operation. Selection
button. IP 31 protection
rating (with pulse cable connected).
Tamper-proof seal and internal auxiliary contact. Programmable fiscal
year change date. 6-digit liquid
crystal display.

• Environmental conditions:

Transport and storage temperature: 0–40°C
Operating ambient temperature: 10–40°C Maximum relative
humidity without condensation: 65%

• Mounting kit components:

Wall mounting screws: galvanized steel
Wall mounting anchors
