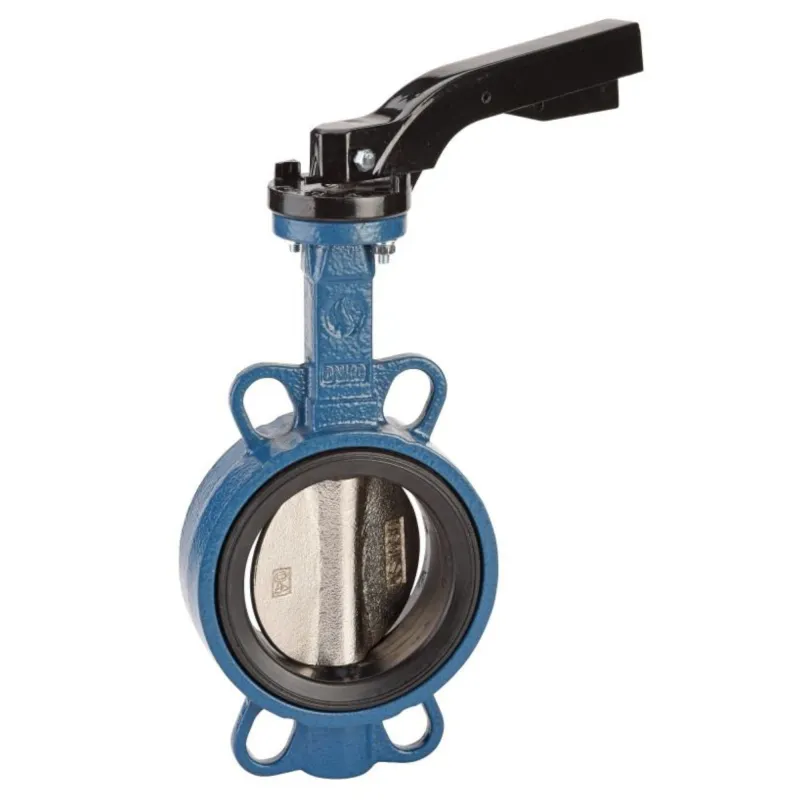

GL cast iron body butterfly valve with stainless steel disc and EPDM seal

Applications:

  • Cold and hot water, seawater, demineralized water, alcohol, lime milk, mercury, alkalis, sodium hydroxide
  • Minimum and maximum permissible temperature Ts: -10°C to +110°C (130°C peak)
  • Maximum allowable pressure Ps: 16 bar

Available in:

  • Lever control from DN32/40 to DN300
  • Size reducer available from DN32/40 to DN300 Ref. 1198
