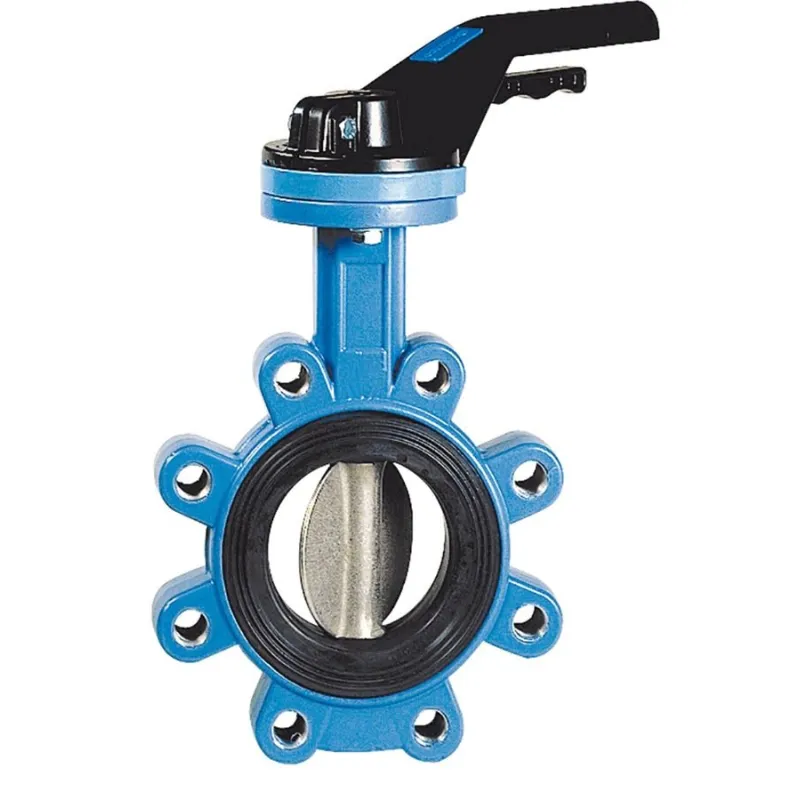

Butterfly valve with threaded lugs, cast iron body, cast iron or stainless steel disc, EPDM seal, ACS certified dn 300 entre brides pn16

Features:

• Long neck for thermal insulation
• Motorizable (ISO 5211 mounting plate with direct mounting)
• Threaded lugs
• Flanged mounting PN10/16 up to DN150,
• On request, PN16 or Class 150 (PN20) flange-to-flange mounting
• Through-shaft
• Removable EPDM dovetail sleeve
• Stainless steel butterfly valve up to and including DN100
• Cast iron butterfly valve with black Rilsan coating +/- 300 microns from DN125
• 9-position handle, padlockable up to DN150, lockable in all positions
• Rilsan-coated paint, RAL 5024, 250–300 microns thick
• 75 mm neck extension (optional)
• 30x30 mm square drive for plumber’s wrench (optional)

Construction:

• Size: DN32 to DN1400
• Connection: PN10/16 flanges
• Min. temperature: -20°C
• Max. temperature: +110°C
• Max. pressure: 16 bar up to DN300
• Material: GJS 500-7 cast iron body, EPDM ACS sleeve

Standards:

• ISO 9001:2015 certified manufacturer
• Designed in accordance with ISO 10631 and EN 593
• DIRECTIVE 2014/68/EU: CE No. 0038 or 0094 Risk
  Category III, Module H
• Certificate 3.1 available upon request
• Leak testing in accordance with EN 12266-1, Class A
• Flange connection in accordance with EN 1092-1 PN10/16
• Base plate in accordance with ISO 5211
• Spacing in accordance with the following standards:
  o ISO 5752 short series 20
  o EN 558 series 20 (NF 29305)
  o BS 5155 series 4
  o DIN 3202 part 3, series K1
  o API 609 Table 1 up to DN600
  o ASME B16.10 Table 8 column 3 up to DN350, column 4 from DN400 to 600
• ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 on request up to DN100
• Operational safety level SIL2 in accordance with IEC/EN 61508, SIL 3 possible depending on the system architecture
• A.C.S. Sanitary Compliance Certificate No. 19 ACC LY 080
• BUREAU VERITAS Marine Certification from DN32 to 1000 upon request
