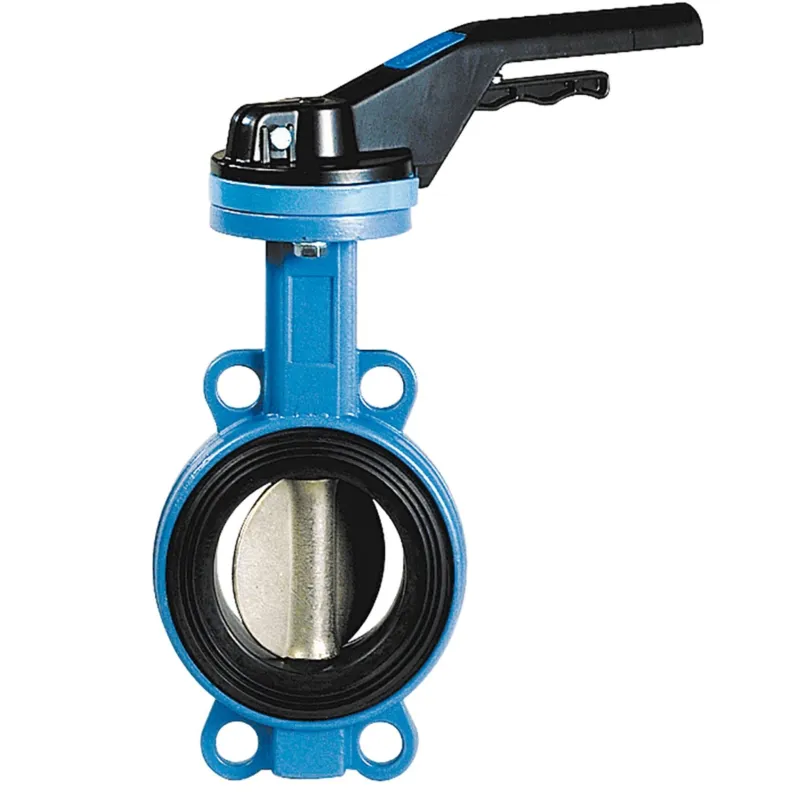

Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal dn 32/40 manchette fkm
Excellence TTV Series Butterfly Valve with Centering Ears, cast iron body, stainless steel disc, FKM or food-grade FKM seal
Applications:
- Applications: Acids, fats, hydrocarbons, gasoline, premium gasoline, argon, glycerin, oil, carbon dioxide, biogas
- Not recommended for: Steam and hot water above 130°C, Freon, ammonia, acetylene
Available upon request from DN350 to DN600 with bare spindle and with reducer mounted for DN350 and DN400
Available in:
- Lever control from DN 32 to DN 300
- Bare shaft from DN 350 to DN 600 (upon request)
- Control available via IP65 handwheel gearbox from DN 32 to DN 600
- Available with IP65 chain gear drive from DN 32 to DN 500
- On request, extension with custom length
- Available on request: CF8M stainless steel handle and stainless steel fasteners
1
dn 32/40
manchette fkm
Are you an individual?
Are you a professional?
Log in to find out your discount.
€287.16
Tax included
239.3 € tax excl.
Unité de vente : Pièce
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
Certificates materials pour Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal
Would you like to order materials that require a material certificate?
Here are the steps to follow :
1. Add product to cart.
2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).
Currently selected product reference : --
Complément d'information Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Specifications (Food-Grade FKM: see Technical Data Sheet 1154 FD below)
- Long neck for thermal insulation
- Motorizable (ISO 5211 mounting plate with direct mounting)
- Centering lugs
- Flanged mounting PN10/16 from DN32 to DN400 and CLASS 150 (PN20) from DN40 to DN400 inclusive (larger sizes available upon request)
- Mounting between PN10 flanges from DN450
- Through-shaft
- Removable FKM dovetail seal
- Stainless steel butterfly valve
- 9-position handle, lockable up to DN200, lockable in all positions and non-lockable from DN250 to 300
- Rilsan-coated paint, RAL 5024, 250–300 microns thick
- 75 mm neck extension (optional)
- 30x30 mm square drive for plumber’s wrench (optional)
Construction:
- Size: DN32 to DN300
- Connection: PN10/16 flanges
- Min. temperature: -5°C
- Max. temperature: +180°C
- Max. pressure: 16 bar up to DN300
- Material: GJS 500-7 cast iron body, FKM sleeve
Standards:
- ISO 9001:2015 certified manufacturer
- Designed in accordance with ISO 10631 and EN 593
- DIRECTIVE 2014/68/EU: CE No. 0038 Risk
Category III, Module H - Certificate 3.1 available upon request
- Leak testing in accordance with EN 12266-1, Class A
- Flange connection in accordance with EN 1092-1 PN10/16
- Base plate in accordance with ISO 5211
- Spacing in accordance with the following standards:
o ISO 5752 short series 20
o EN 558 series 20 (NF 29305)
o BS 5155 series 4
o DIN 3202 part 3, series K1
o API 609 Table 1 up to DN600
o ASME B16.10 Table 8 column 3 up to DN350, column 4 from DN400 to 600 - ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 on request
- Functional safety level SIL2 in accordance with IEC/EN 61508, SIL 3 possible depending on the system architecture
- BUREAU VERITAS Marine Certification from DN32 to 1000 upon request
Caractéristiques techniques Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal
Data sheet
- Reference
- 1154FIOL1620040
- Gamme
- Excellence
- Corps
- Fonte EN GJS-500-7
- Obturateur
- Inox ASTM A351 CF8M
- Membrane
- FKM FKM alimentaire
- Type de raccordement
- Entre brides PN10/16, Class 150 (PN20)
- Raccordement
- En fonction du modèle choisi
- Diamètre
- En fonction du modèle choisi
- Pression maximum
- 16 bar
- Température minimum
- -5°C
- Température maximum
- 180°C
- Normes et certifications
- ATEX Directive 2014/68/UE EN 12266-1 ISO 9001 : 2015 SIL IEC 61508 / IEC 61511
- Normalisation
- Directive 2014/68/UE
- Poid
- En fonction du modèle choisi
- Possibilité de certificat 3.1
- Oui
- Possibilité de marquage ATEX
- Oui
- Unité de vente
- Pièce
- Garantie fabricant
- 1 an
Download documentation
FT 1154
Fiche technique Robinet papillon à oreilles de centrage gamme excellence TTV corps fonte papillon inox manchette FKM
Download (1.24MB)Accessoires et équipements (vendus séparément)
Caractéristiques liées à la version du produit Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal
Voici la liste des références et poids correspondants aux options séléctionnées.1154FIOL1620300 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 300
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 300 |
| Packed weight | 33kg |
1154FIOL1620050 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 50
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 50 |
| Packed weight | 3,86kg |
1154FIOL1620125 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 125
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 125 |
| Packed weight | 7,8kg |
1154FIOL1620040 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 32/40
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 32/40 |
| Packed weight | 2,66kg |
1154FIOL1620100 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 100
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 100 |
| Packed weight | 6,2kg |
1154FIOL1620250 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 250
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 250 |
| Packed weight | 24,7kg |
1154FIOL1620080 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 80
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 80 |
| Packed weight | 4,8kg |
1154FIOL1620200 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 200
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 200 |
| Packed weight | 15kg |
1154FIOL1620065 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 65
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 65 |
| Packed weight | 4,6kg |
1154FIOL1620150 - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM - DN 150
| Type | Manchette FKM |
|---|---|
| Diameter DN | DN 150 |
| Packed weight | 9,4kg |
1154FIOL1620080-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 80
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 80 |
| Packed weight | 4,8kg |
1154FIOL1620200-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 200
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 200 |
| Packed weight | 14,7kg |
1154FIOL1620065-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 65
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 65 |
| Packed weight | 4,6kg |
1154FIOL1620150-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 150
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 150 |
| Packed weight | 9,4kg |
1154FIOL1620300-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 300
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 300 |
| Packed weight | 33kg |
1154FIOL1620050-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 50
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 50 |
| Packed weight | 3,86kg |
1154FIOL1620125-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 125
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 125 |
| Packed weight | 7,8kg |
1154FIOL1620040-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 32/40
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 32/40 |
| Packed weight | 2,66kg |
1154FIOL1620100-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 100
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 100 |
| Packed weight | 6,2kg |
1154FIOL1620250-FD - Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc, FKM Seal - Manchette FKM alimentaire - DN 250
| Type | Manchette FKM alimentaire |
|---|---|
| Diameter DN | DN 250 |
| Packed weight | 24,7kg |
Excellence TTV Series Butterfly Valve with Centering Ears, cast iron body, stainless steel disc, FKM or food-grade FKM seal
Applications:
- Applications: Acids, fats, hydrocarbons, gasoline, premium gasoline, argon, glycerin, oil, carbon dioxide, biogas
- Not recommended for: Steam and hot water above 130°C, Freon, ammonia, acetylene
Available upon request from DN350 to DN600 with bare spindle and with reducer mounted for DN350 and DN400
Available in:
- Lever control from DN 32 to DN 300
- Bare shaft from DN 350 to DN 600 (upon request)
- Control available via IP65 handwheel gearbox from DN 32 to DN 600
- Available with IP65 chain gear drive from DN 32 to DN 500
- On request, extension with custom length
- Available on request: CF8M stainless steel handle and stainless steel fasteners
