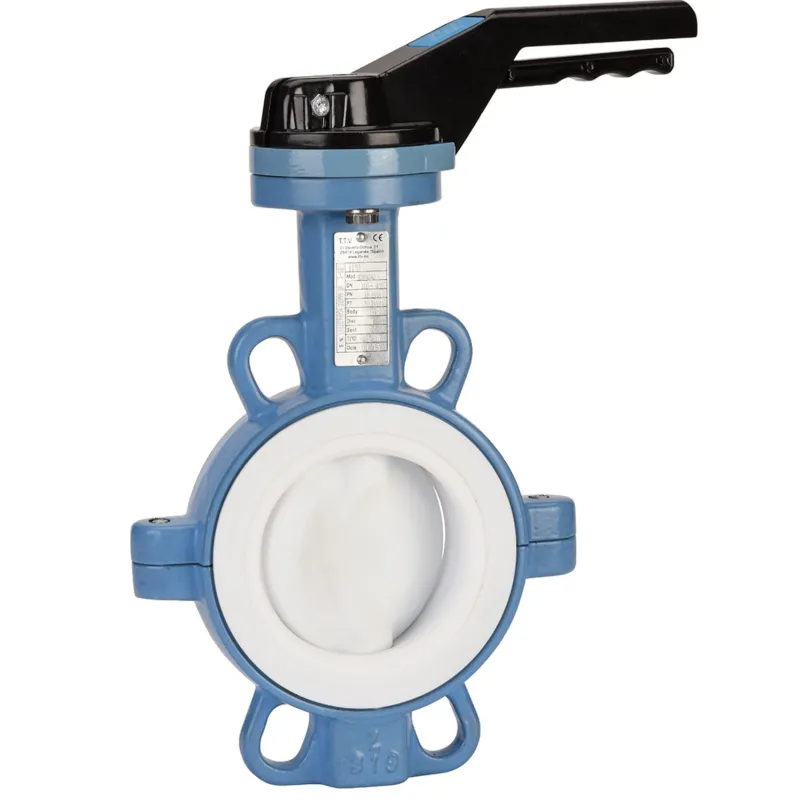

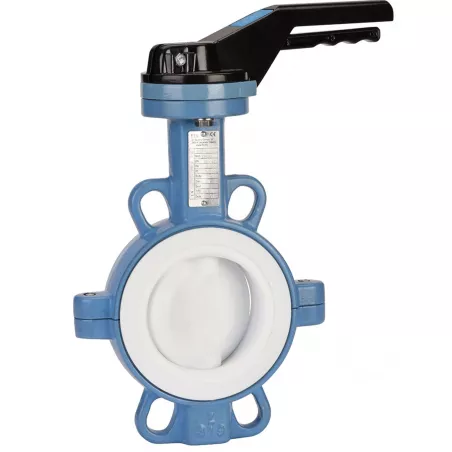

Excellence TTV Series Butterfly Valve with Centering Ears, Cast Iron Body, Stainless Steel Disc with PTFE Liner

Application:

  • For corrosive fluids (acids, etc.)
  • Minimum and maximum permissible temperature Ts: -25°C to +200°C

ON QUOTE for DN250 and DN300 with mounted reducer

Available in:

  • Lever-operated from DN 32/40 to DN 200
  • Optional IP65 handwheel gear drive from DN 32/40 to DN 200
  • Optional IP65 chain gear drive from DN 32/40 to DN 300
  • On request, extension with custom length
  • On request, stainless steel handle and hardware
Plus de détails
Normes et certifications : ATEXNormes et certifications : SIL IEC 61508 / IEC 615111Gamme : Excellence
dn 32/40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,351.58 Tax included

1126.32 € tax excl.

Unité de vente : Pièce
1155FEOL1620040
Diameter DN: DN 32/40
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Long collar for thermal insulation
  • Motorizable (ISO 5211 mounting plate)
  • Centering lugs
  • Fitting between PN10/16 flanges from DN32 to DN300 and Class 150 (PN20) from DN40 to DN300
  • Two-piece body
  • 2-piece shaft
  • 3 mm thick PTFE sleeve with 6 mm thick silicone core
  • PTFE-coated stainless steel butterfly valve
  • 9-position handle, lockable up to DN200
  • Rilsan-coated paint, RAL 5024, 250–300 microns thick
  • 75 mm neck extension (optional)
  • 30x30 mm square drive for plumber’s wrench (optional)

Construction:

  • Size: DN32/40 to DN300
  • Connection: Between PN10/16 and Class 150 (PN20) flanges
  • Min. temperature: -25°C
  • Max. temperature: +200°C
  • Max. Pressure: 16 bar up to DN150
  • Material: GJS 500-7 cast iron body, PTFE disc and seat

Standards:

  • ISO 9001:2015 certified manufacturer
  • Designed in accordance with ISO 10631 and EN 593
  • DIRECTIVE 2014/68/EU: CE No. 0038 Risk
    Category III, Module H
  • Certificate 3.1 available upon request
  • Leak testing in accordance with EN 12266-1, Class A
  • Flange connection in accordance with EN 1092-1 PN10/16
  • Base plate in accordance with ISO 5211
  • Spacing in accordance with the following standards:
    o ISO 5752 short series 20
    o EN 558 series 20 (NF 29305)
    o BS 5155 series 4
    o DIN 3202 part 3, series K1
    o API 609 Table 1 up to DN600
    o ASME B16.10 Table 8 column 3 up to DN350, column 4 from DN400 to 600
  • ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 on request
  • Functional safety level SIL2 according to IEC/EN 61508, SIL 3 possible depending on the system architecture
  • FDA-compliant PTFE sleeve
  • PTFE sleeve compatible with foodstuffs in accordance with Regulation (EC) No. 1935/2004 (Article 3)

Caractéristiques techniques Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner

Data sheet

Reference
1155FEOL1620040
Gamme
Excellence
Corps
Fonte EN GJS-500-7
Obturateur
Inox ASTM A351 CF8M
Membrane
PTFE
Type de raccordement
Entre brides PN10/16, Class 150 (PN20)
Raccordement
En fonction du modèle choisi
Diamètre
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
-25°C
Température maximum
200°C
Normes et certifications
ATEX Directive 2014/68/UE EN 12266-1 ISO 9001 : 2015 SIL IEC 61508 / IEC 61511
Normalisation
Directive 2014/68/UE
Poid
En fonction du modèle choisi
Possibilité de certificat 3.1
Oui
Possibilité de marquage ATEX
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 1155

Fiche technique Robinet papillon à oreilles de centrage gamme excellence TTV corps fonte papillon inox revetu manchette PTFE

Download (999KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner

Voici la liste des références et poids correspondants aux options séléctionnées.
1155FEOL1620040 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 32/40
Diameter DN DN 32/40
Packed weight 2,7kg
1126.32 € tax excl.
Consulter
1155FEOL1620050 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 50
Diameter DN DN 50
Packed weight 4,2kg
1142.64 € tax excl.
Consulter
1155FEOL1620065 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 65
Diameter DN DN 65
Packed weight 4,57kg
1181.18 € tax excl.
Consulter
1155FEOL1620080 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 80
Diameter DN DN 80
Packed weight 5,38kg
1197.5 € tax excl.
Consulter
1155FEOL1620100 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 100
Diameter DN DN 100
Packed weight 6,7kg
1448.43 € tax excl.
Consulter
1155FEOL1620125 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 125
Diameter DN DN 125
Packed weight 9,7kg
1714.54 € tax excl.
Consulter
1155FEOL1620150 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 150
Diameter DN DN 150
Packed weight 10,57kg
1956.14 € tax excl.
Consulter
1155FEOL1620200 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 200/PN10
Diameter DN DN 200/PN10
Packed weight 17kg
2578.19 € tax excl.
Consulter
Référence - Désignation Diameter DN Packed weight Prix
1155FEOL1620040 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 32/40 DN 32/40 2,7kg 1126.32 € tax excl.
1155FEOL1620050 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 50 DN 50 4,2kg 1142.64 € tax excl.
1155FEOL1620065 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 65 DN 65 4,57kg 1181.18 € tax excl.
1155FEOL1620080 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 80 DN 80 5,38kg 1197.5 € tax excl.
1155FEOL1620100 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 100 DN 100 6,7kg 1448.43 € tax excl.
1155FEOL1620125 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 125 DN 125 9,7kg 1714.54 € tax excl.
1155FEOL1620150 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 150 DN 150 10,57kg 1956.14 € tax excl.
1155FEOL1620200 - Excellence TTV Series Butterfly Valve with Centering Ears: Cast Iron Body, Stainless Steel Disc with PTFE Liner - DN 200/PN10 DN 200/PN10 17kg 2578.19 € tax excl.
