RBS 3-way ball valve, PN40, threaded 1/4" (8/13) lumière en l

Name: RBS 3-way ball valve, PN40, threaded 1/4 (8/13) lumière en l
Brand: THERSANE
SKU: 78000CEL0BFF008
Price: 153.31 EUR
Availability: InStock

Robinets à boisseau sphérique 3 voies

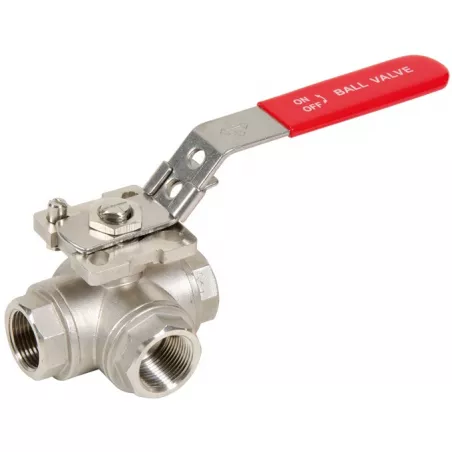

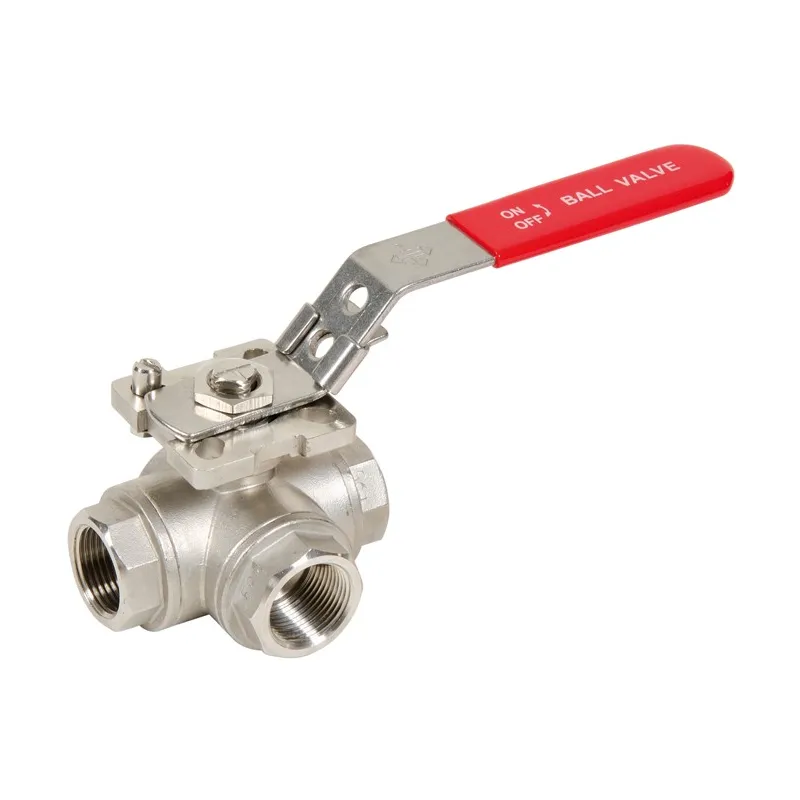

Robinet à tournant sphérique RBS 3 voies PN40 taraudé 780 781

Photos non contractuelles

RBS 3-way ball valve, PN40, female threaded, L- or T-shaped outlet

3-way ball valve, PN40, threaded ~3-way ball valve, PN40

Applications:

Chemicals, petrochemical industries, hydraulic systems, heating systems, air and water distribution Minimum and
maximum permissible temperatures Ts: -25°C to +180°C Maximum permissible
pressure Ps: 40 bar (see curve)

CCPU 3.1 material certificate available

Stainless steel 3-way valve with L-shaped port from DN 1/4" to 2" Stainless steel
3-way valve with T-shaped port from DN 1/4" to 2"

Plus de détails

Normes et certifications : TUV PED 97/23/CE

Type de raccordement : Á visser BSP (pas du gaz)

1/4" (8/13) lumière en l

Are you an individual?

Are you a professional?

€153.31 Tax included

127.76 € tax excl.

Unité de vente : Pièce

Reference : 78000CEL0BFF008

Diameter (in inches): 1/4" (8/13)

Type de vanne: Lumière en L

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour RBS 3-way ball valve, PN40, threaded

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 3-way ball valve, PN40, threaded

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Reduced bore
Non-ejectable shaft
PTFE seats reinforced with 15% glass
Dual antistatic system (ball between spindle-body and spindle-ball)
Lockable handle
Motorizable (ISO 5211 mounting plate)
Sealed on all 3 ports
L- or T-shaped port

Construction:

Reduced bore.
Body: ASTM A351 CF8M stainless steel.
PTFE gland + FKM O-ring.
Ball and non-injectable stem: ASTM A182 F316 stainless steel.
Seats: 15% glass-filled PTFE.
Red, lockable handle, 304 stainless steel.
L- or T-shaped light.
ISO 5211 mounting plate.
Sizes: DN 1/4" to 2"
Connection: BSP female cylindrical thread
Material: Stainless steel

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0036 Risk
Category II Module A1
Leak testing in accordance with API 598, Table 6
Cylindrical BSP threaded connection in accordance with ISO 7-1 Rp
Flange in accordance with ISO 5211
ATEX Group II Category 2 GD c T2 Zone 1 & 21 Zone 2 & 22 (optional marking)

Nominal Ø	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Passage diameter	9.5	11	12	15	20	25	32	40
PS	40	40	40	40	40	40	40	40
Track width	75	75	75	82	100	122	131	158

Caractéristiques techniques RBS 3-way ball valve, PN40, threaded

Data sheet

Reference: 78000CEL0BFF008
Type de vanne: RBS (Robinet à tournant sphérique)
Passage: Réduit
Corps: Inox ASTM A351 CF8M
Obturateur: Inox ASTM A182 F316
Siège: PTFE chargés 15 % verre.
Axe: Inéjectable Acier Inox ASTM A182 F316
Presse-étoupe: Joint torique FKM PTFE
Platine: Platine ISO 5211
Commande: Couleur rouge Réversible
Entraxe: En fonction du modèle choisi
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: Femelle
Diamètre: En fonction du modèle choisi
Débit: En fonction du modèle choisi
Pression de service: En fonction du modèle choisi
Température minimum: -25°C
Température maximum: 180°C
Fluide admissible: Fluides courants compatibles
Normes et certifications: ATEX CE TUV ISO 9001 TUV PED 97/23/CE Test d'étanchéité API 598
Normalisation: DIRECTIVE 97/23/CE : CE N° 0036
Équipements: Cadenassable Platine ISO
Possibilité de certificat 3.1: Oui
Possibilité de marquage ATEX: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Download documentation

FT 781

Fiche technique 781 robinet à tournant sphérique 3 voies taraudé lumière en T BSP

Download (1.36MB)

FT 780

Fiche technique 780 robinet à tournant sphérique 3 voies taraudé lumière en L

Download (1.34MB)

Accessoires et équipements (vendus séparément)

Quick view

CCPU 3.1 Material Certificate

€19.50

Caractéristiques liées à la version du produit RBS 3-way ball valve, PN40, threaded

Voici la liste des références et poids correspondants aux options séléctionnées.

78000CET0BFF008 - RBS 3-way ball valve, PN40, threaded - 1/4" (8/13) - Lumière en T

Diameter (in inches)	1/4" (8/13)
Type de vanne	Lumière en T
Packed weight	0,63kg

127.76 € tax excl.

Diameter (in inches)	3/8" (12/17)
Type de vanne	Lumière en T
Packed weight	0,63kg

Diameter (in inches)	1/2" (15/21)
Type de vanne	Lumière en L
Packed weight	0,7035kg

Diameter (in inches)	3/4" (20/27)
Type de vanne	Lumière en L
Packed weight	1,2495kg

Diameter (in inches)	1" (26/34)
Type de vanne	Lumière en L
Packed weight	1,785kg

Diameter (in inches)	1"1/4 (33/42)
Type de vanne	Lumière en T
Packed weight	2,6355kg

Diameter (in inches)	1"1/2 (40/49)
Type de vanne	Lumière en T
Packed weight	3,7485kg

Diameter (in inches)	2" (50/60)
Type de vanne	Lumière en T
Packed weight	6,0165kg

Référence - Désignation	Diameter (in inches)	Type de vanne	Packed weight	Prix
78000CET0BFF008 - RBS 3-way ball valve, PN40, threaded - 1/4" (8/13) - Lumière en T	1/4" (8/13)	Lumière en T	0,63kg	127.76 € tax excl.
78000CEL0BFF008 - RBS 3-way ball valve, PN40, threaded - 1/4" (8/13) - Lumière en L	1/4" (8/13)	Lumière en L	0,63kg	127.76 € tax excl.
78000CET0BFF010 - RBS 3-way ball valve, PN40, threaded - 3/8" (12/17) - Lumière en T	3/8" (12/17)	Lumière en T	0,63kg	127.76 € tax excl.
78000CEL0BFF010 - RBS 3-way ball valve, PN40, threaded - 3/8" (12/17) - Lumière en L	3/8" (12/17)	Lumière en L	0,63kg	127.76 € tax excl.
78000CEL0BFF015 - RBS 3-way ball valve, PN40, threaded - 1/2" (15/21) - Lumière en L	1/2" (15/21)	Lumière en L	0,7035kg	127.76 € tax excl.
78000CET0BFF015 - RBS 3-way ball valve, PN40, threaded - 1/2" (15/21) - Lumière en T	1/2" (15/21)	Lumière en T	0,7035kg	127.76 € tax excl.
78000CEL0BFF020 - RBS 3-way ball valve, PN40, threaded - 3/4" (20/27) - Lumière en L	3/4" (20/27)	Lumière en L	1,2495kg	169.85 € tax excl.
78000CET0BFF020 - RBS 3-way ball valve, PN40, threaded - 3/4" (20/27) - Lumière en T	3/4" (20/27)	Lumière en T	1,2495kg	169.85 € tax excl.
78000CEL0BFF025 - RBS 3-way ball valve, PN40, threaded - 1" (26/34) - Lumière en L	1" (26/34)	Lumière en L	1,785kg	216.55 € tax excl.
78000CET0BFF025 - RBS 3-way ball valve, PN40, threaded - 1" (26/34) - Lumière en T	1" (26/34)	Lumière en T	1,785kg	216.55 € tax excl.
78000CET0BFF032 - RBS 3-way ball valve, PN40, threaded - 1"1/4 (33/42) - Lumière en T	1"1/4 (33/42)	Lumière en T	2,6355kg	309.47 € tax excl.
78000CEL0BFF032 - RBS 3-way ball valve, PN40, threaded - 1"1/4 (33/42) - Lumière en L	1"1/4 (33/42)	Lumière en L	2,6355kg	309.47 € tax excl.
78000CET0BFF040 - RBS 3-way ball valve, PN40, threaded - 1"1/2 (40/49) - Lumière en T	1"1/2 (40/49)	Lumière en T	3,7485kg	405.47 € tax excl.
78000CEL0BFF040 - RBS 3-way ball valve, PN40, threaded - 1"1/2 (40/49) - Lumière en L	1"1/2 (40/49)	Lumière en L	3,7485kg	405.47 € tax excl.
78000CET0BFF050 - RBS 3-way ball valve, PN40, threaded - 2" (50/60) - Lumière en T	2" (50/60)	Lumière en T	6,0165kg	615.84 € tax excl.
78000CEL0BFF050 - RBS 3-way ball valve, PN40, threaded - 2" (50/60) - Lumière en L	2" (50/60)	Lumière en L	6,0165kg	615.84 € tax excl.
