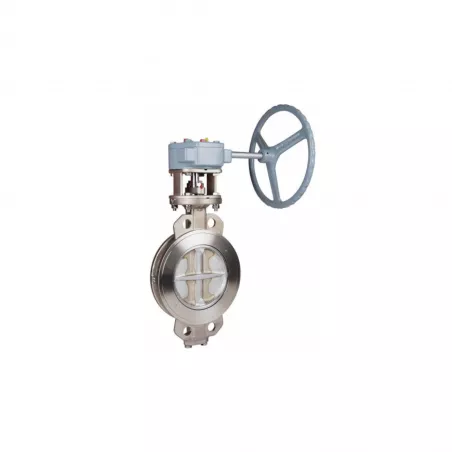

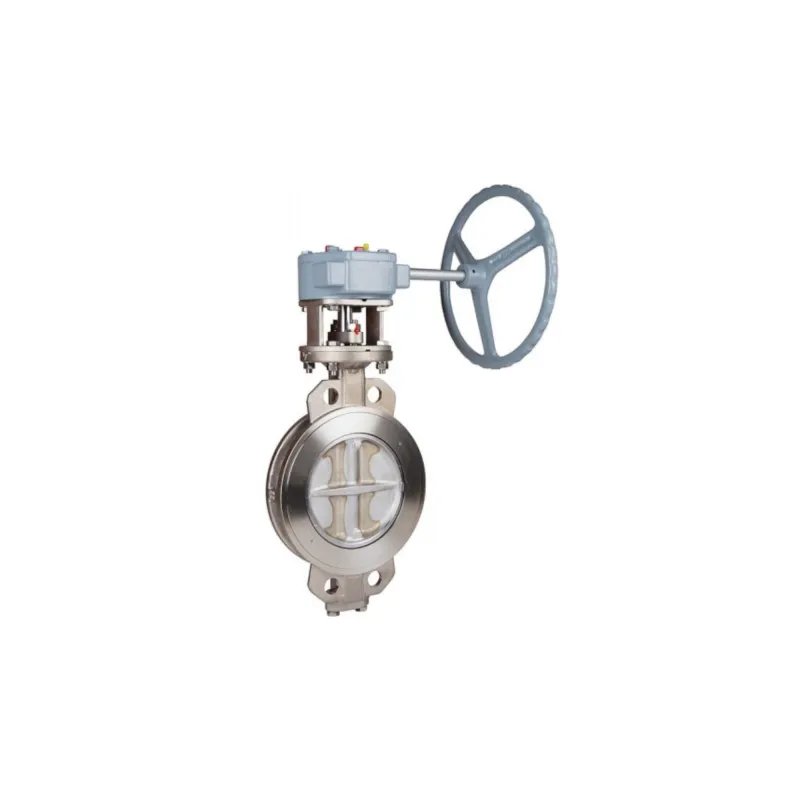

Stainless steel double-offset butterfly valve, PN25, flanged, with centering lugs

Applications:

  • District heating, geothermal energy, industrial refrigeration, shipbuilding, petrochemicals
  • Steam: 10 bar max
  • Min. and max. permissible temperature Ts: -29°C to +210°C
  • Max. allowable pressure Ps: 25 bar (see curve)
  • If installed at the end of the line, reverse the preferred installation direction

Available in:

  • Stainless steel body flanged valve with lever control from DN 50 to DN 150
  • Stainless steel body valve with centering lugs, handwheel-operated, from DN 200 to DN 500
  • Manual gear-operated valve with handwheel, DN 50 to DN 350
Plus de détails
Normes et certifications : ISO 9001Normes et certifications : ATEXNormes et certifications : TUV ISO 9001Normes et certifications : Sécurité feu ISO 10497Normes et certifications : TUV PED/2014/68/UEType de raccordement : Entre-brides PN251
dn 50
Are you an individual?
Are you a professional?

Log in to find out your discount.

€1,117.70 Tax included

931.42 € tax excl.

Unité de vente : Pièce
1114IIOLPN25050
Diameter DN: DN 50
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Stainless steel double-offset butterfly valve, PN25

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Stainless steel double-offset butterfly valve, PN25

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • 100% waterproof model
  • Model with centering lugs
  • Mounting between PN 25 flanges
  • Double eccentricity
  • Bidirectional use with preferred flow direction (indicated by an arrow on the body)
  • Fire safety in accordance with ISO 10497:2010
  • Motorizable (ISO 5211 mounting plate)
  • CF8M stainless steel butterfly valve
  • Through-shaft
  • Cast iron handle control with 10 positions, lockable up to DN150
  • Gear-driven control starting at DN200
  • Cast iron handle EN GJS-400-15 with silver paint RAL 9006

Construction:

  • Dimensions: DN 50 to DN 500
  • Connection: PN 25 flanges
  • Material: ASTM A351 CF8M stainless steel
  • Seat: PTFE reinforced with 15% graphite
  • Body: ASTM A351 CF8M stainless steel

Standards:

  • Manufactured in accordance with ISO 9001:2015
  • DIRECTIVE 2014/68/EU: CE No. 0035 Risk Category III, Module H
  • Designed in accordance with API 609
  • Marking in accordance with MSS SP-25
  • Leak testing in accordance with ISO 5208, Grade A
  • Flange connection in accordance with EN 1092-1 PN25
  • Base plate in accordance with ISO 5211
  • Spacing in accordance with EN 558 Series 20 (ISO 5752 Series 20)
  • Fire safety in accordance with ISO 10497:2010
  • ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 in accordance with Directive 2014/34/EU (optional marking)
  • Safety Integrity Level (SIL) 2 in accordance with IEC/EN 61508; SIL 3 possible depending on the system architecture

Caractéristiques techniques Stainless steel double-offset butterfly valve, PN25

Data sheet

Reference
1114IIOLPN25050
Corps
Inox ASTM A351 CF8M
Obturateur
Inox ASTM A351 CF8M
Siège
PTFE chargé 15% graphite
Axe
Inox ASTM A564 630
Joint
Graphite
Type de raccordement
Entre-brides PN25
Raccordement
En fonction du modèle choisi
Diamètre
En fonction du modèle choisi
Pression maximum
25 bar
Température minimum
-29°C
Température maximum
210°C
Fluide admissible
Contruction navale Eau chauffage Froid industriel Géothermie Industries pétrochimiques
Normes et certifications
ATEX ISO 9001 Sécurité feu ISO 10497 TUV ISO 9001 TUV PED/2014/68/UE Tests d’étanchéité ISO 5208, classe A
Normalisation
Directive 2014/68/UE
Possibilité de certificat 3.1
Oui
Possibilité de marquage ATEX
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 1114

Fiche technique robinet à papillon double excentration Wafer inox PN25
