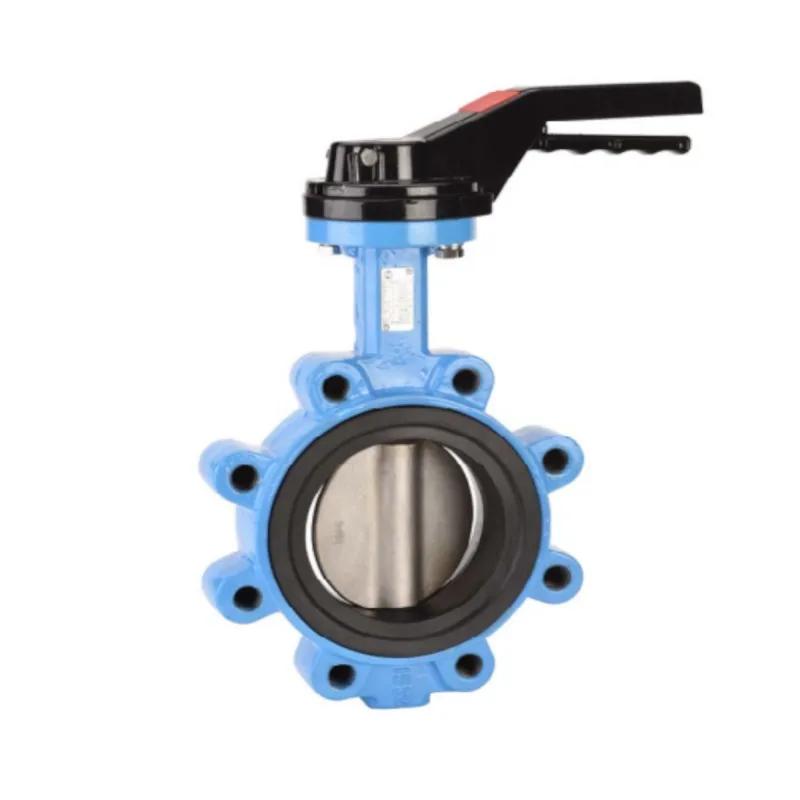

Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat dn 40 entre brides pn16
Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
Applications:
- Cold and hot water, seawater, demineralized water, alcohol, lime milk, mercury, alkalis, sodium hydroxide
- Minimum and maximum permissible temperature Ts: -20°C to +130°C
- Maximum allowable pressure Ps: 16 bar up to DN300, 10 bar above
- For temporary use, can be used at the end of the line (6 bar max)
- For permanent use, when mounted with a counterflange at the end, can be used at the end of the line (max. 10 bar)
Available in:
- Lever control from DN 40 to DN 300
- Handwheel-operated gear reducer from DN 350 to 600
- Handwheel-operated gear drive available from DN 40 to DN 300
1
dn 40
entre brides pn16
Are you an individual?
Are you a professional?
Log in to find out your discount.
€83.27
Tax included
69.39 € tax excl.
Unité de vente : Pièce
Are you an individual?
Save time and have it delivered to your workplace..
Are you a professional?
Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account
FREE SHIPPING
From €150 incl. VAT
For a cart not exceeding 30Kg
Certificates materials pour Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
Would you like to order materials that require a material certificate?
Here are the steps to follow :
1. Add product to cart.
2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).
Currently selected product reference : --
Complément d'information Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.
Features:
- Long collar for thermal insulation
- Motorizable (ISO 5211 mounting plate)
- Threaded lugs
- Fitting between PN10/16 flanges
- One-piece through-shaft (up to DN65)
- Removable high-temperature EPDM sleeve
- 9-position handle up to DN150 and 12-position handle from DN200 to 300, lockable in the open position
- Stainless steel butterfly valve
- Body coated with RAL 5012 epoxy electrostatic paint, 250 µm thick
Construction:
- Dimensions: DN 40 to DN 600
- Connection: PN10/16 flanges
- Material: EN GJS-400-15 cast iron
- Butterfly valve: Stainless steel ASTM A351 CF8M
- Body: Cast iron EN GJS-400-15
Standards:
- Manufactured in accordance with ISO 9001:2015
- Designed in accordance with BS 5155
- DIRECTIVE 2014/68/EU: CE No. 0035 Risk Category III, Module H
- Certificate 3.1 available upon request
- Leak testing in accordance with EN 12266-1, Class A
- Flange connection in accordance with EN 1092-1 PN10-16
- Base plate in accordance with ISO 5211
- Spacing in accordance with ISO 5752 short series 20, EN 558 series 20 (NF 29305), BS 5155 short/medium wafer, DIN 3202 part 3, series K1
Caractéristiques techniques Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
Data sheet
- Reference
- 1176FIOTPN16040
- Gamme
- Performance
- Corps
- Fonte EN GJS-400-15
- Joint
- EPDM
- Type de raccordement
- Entre brides PN10-16
- Raccordement
- En fonction du modèle choisi
- Diamètre
- En fonction du modèle choisi
- Pression maximum
- 16 Bars jusqu’au DN300 (10 bars au-delà)
- Température minimum
- -20°C
- Température maximum
- 130°C
- Fluide admissible
- Alcool Eau Eau de mer Eau démineralisée Hydroxyde de soude Lait de chaux Mercure Solutions alcalines
- Normes et certifications
- CE Directive 2014/68/UE ISO 9001 ISO 9001 DNV-G TUV PED/2014/68/UE
- Normalisation
- Directive 2014/68/UE
- Possibilité de certificat 3.1
- Oui
- Unité de vente
- Pièce
- Garantie fabricant
- 1 an
Download documentation
FT 1176
Fiche technique robinet à papillon Lug Performance fonte/EPDM Haute température pap. inox
Download (2.86MB)Accessoires et équipements (vendus séparément)
Caractéristiques liées à la version du produit Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
Voici la liste des références et poids correspondants aux options séléctionnées.1176FIOTPN10200 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 200
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 200 |
| Packed weight | 21,84kg |
1176FIOTPN10400 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 400
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 400 |
| Packed weight | 160,65kg |
1176FIOTPN10350 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 350
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 350 |
| Packed weight | 74,55kg |
1176FIOTPN10600 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 600
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 600 |
| Packed weight | 359,1kg |
1176FIOTPN10300 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 300
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 300 |
| Packed weight | 44,625kg |
1176FIOTPN10500 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 500
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 500 |
| Packed weight | 271,95kg |
1176FIOTPN10250 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 250
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 250 |
| Packed weight | 32,025kg |
1176FIOTPN10450 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN10 - DN 450
| Raccordement | Entre brides PN10 |
|---|---|
| Diameter DN | DN 450 |
| Packed weight | 187,95kg |
1176FIOTPN16080 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 80
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 80 |
| Packed weight | 6,3kg |
1176FIOTPN16200 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 200
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 200 |
| Packed weight | 21,84kg |
1176FIOTPN16400 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 400
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 400 |
| Packed weight | 160,65kg |
1176FIOTPN16050 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 50
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 50 |
| Packed weight | 4,305kg |
1176FIOTPN16600 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 600
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 600 |
| Packed weight | 359,1kg |
1176FIOTPN16150 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 150
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 150 |
| Packed weight | 13,125kg |
1176FIOTPN16350 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 350
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 350 |
| Packed weight | 74,55kg |
1176FIOTPN16065 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 65
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 65 |
| Packed weight | 4,935kg |
1176FIOTPN16500 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 500
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 500 |
| Packed weight | 271,95kg |
1176FIOTPN16125 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 125
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 125 |
| Packed weight | 10,5kg |
1176FIOTPN16300 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 300
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 300 |
| Packed weight | 44,625kg |
1176FIOTPN16040 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 40
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 40 |
| Packed weight | 3,255kg |
1176FIOTPN16100 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 100
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 100 |
| Packed weight | 8,19kg |
1176FIOTPN16250 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 250
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 250 |
| Packed weight | 32,025kg |
1176FIOTPN16450 - Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat - Entre brides PN16 - DN 450
| Raccordement | Entre brides PN16 |
|---|---|
| Diameter DN | DN 450 |
| Packed weight | 187,95kg |
Performance Series Cast Iron GS Body Butterfly Valve with Threaded Ears, Stainless Steel Disc, and High-Temperature EPDM Seat
Applications:
- Cold and hot water, seawater, demineralized water, alcohol, lime milk, mercury, alkalis, sodium hydroxide
- Minimum and maximum permissible temperature Ts: -20°C to +130°C
- Maximum allowable pressure Ps: 16 bar up to DN300, 10 bar above
- For temporary use, can be used at the end of the line (6 bar max)
- For permanent use, when mounted with a counterflange at the end, can be used at the end of the line (max. 10 bar)
Available in:
- Lever control from DN 40 to DN 300
- Handwheel-operated gear reducer from DN 350 to 600
- Handwheel-operated gear drive available from DN 40 to DN 300
