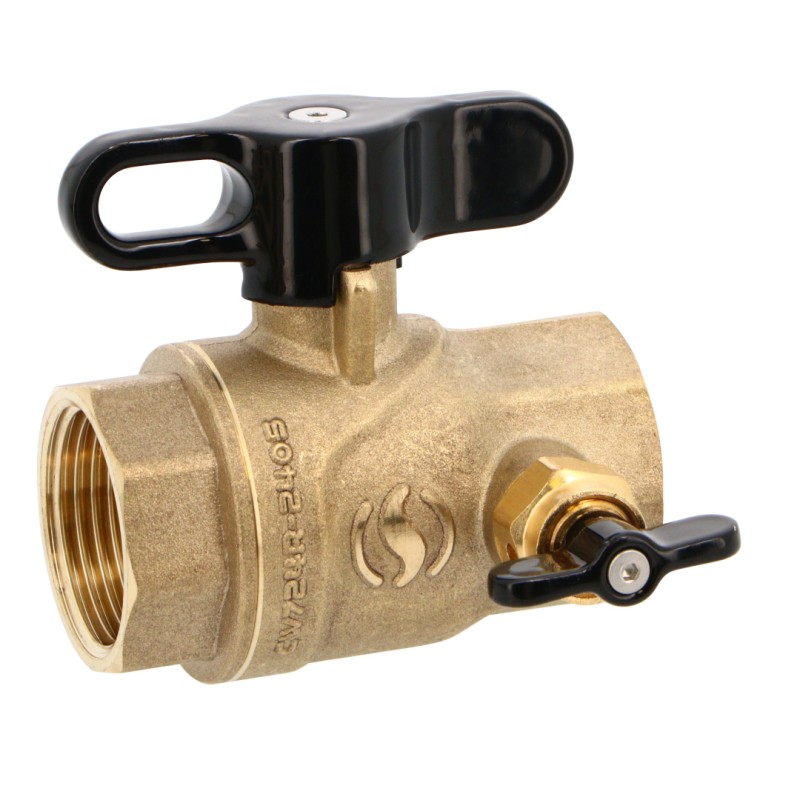

CW724R Serena lead-free ball valve with female drain, brass, black handle 1/2" (15/21)

Vannes à sphère laiton ACS sans PLOMB série SERENA
CW724R Serena lead-free ball valve with female drain, brass, black handle
search
  • CW724R Serena lead-free ball valve with female drain, brass, black handle
  • CW724R Serena lead-free ball valve with female drain, brass, black handle
  • CW724R Serena lead-free ball valve with female drain, brass, black handle

Photos non contractuelles

CW724R lead-free brass ball valve with female bleed, Serena black lever range

Brass ball valve ~ Brass ball valve

Application:

Water supply and distribution networks
Min. permissible temperature Ts : - 10°C
Max. permissible temperature Ts : + 120°C
Max. permissible pressure Ps : 40 bar

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Normes et certifications : Sans plombNormes et certifications : 4MSNormes et certifications : SANS PLOMB 724R DZRNormes et certifications : FDES Vérifiée iniesType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€15.25 Tax included

12.71 € tax excl.

Unité de vente : Pièce
530S0N000BFF015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW724R Serena lead-free ball valve with female drain, brass, black handle

Technical data :

  • CW724R 4MS non-dezincifying lead-free brass body
  • Brass complies with 4MS list of approved materials
  • Full bore
  • Injectable spindle
  • Stainless steel ball from DN3/4" upwards
  • Perforated ball (prevents water stagnation between ball and body)
  • PTFE gland
  • Wide flat span
  • Aluminum butterfly handle
  • Dacromet-coated handle and nut (salt spray protection)
  • DZR lead-free" body marking with CW724R, date of manufacture and logo
  • ACS marking on handle
  • Reversible handle
  • Handle with hole for locking the valve (using a Rilsan collar)

Construction:

  • CW724R-4MS non-dezincifying lead-free brass
  • Sphere DN1/4"-1/2" Brass CW724R 4MS and Sphere DN3/4" - 2" Stainless steel AISI 304
  • PTFE ball seals.
  • PTFE packing gland.
  • Injectable spindle.
  • Reversible handle.
  • Full bore.

Standardization :

  • ISO 9001:2015 and ISO 14001:2015 certified manufacturer
  • DIRECTIVE 2014/68/UE : Products excluded from the directive ( Article 4, § 3 )
  • A.C.S. sanitary conformity certificate N° 24 ACC LY 533
  • German certification DVGW W570-1, DIN EN 13828
  • Cylindrical BSP female thread and cylindrical BSP male thread to ISO 228-1

Caractéristiques techniques CW724R Serena lead-free ball valve with female drain, brass, black handle

Data sheet

Reference
530S0N000BFF015
Avis de l'équipe
Le plus économique
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton sans plomb non dézincifiable CW724R 4MS
Axe
Inéjectable
Presse-étoupe
PTFE
Commande
Couleur noire Poignée papillon Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi Voir tableau
Température minimum
-10°C
Température maximum
120°C
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
4MS Certification ACS FDES Vérifiée inies ISO 9001 : 2008 (BSI) SANS PLOMB 724R DZR Sans plomb
Normalisation
Directive 2014/68/UE
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

Caractéristiques liées à la version du produit CW724R Serena lead-free ball valve with female drain, brass, black handle

Voici la liste des références et poids correspondants aux options séléctionnées.
