Valves with pressure gauge mounted FF 3/4" type ZM

Soupapes avec manomètre monté
Soupapes avec manomètre monté FF 3/4" ZM
search
  • Soupapes avec manomètre monté FF 3/4" ZM
  • Soupapes avec manomètre monté FF 3/4" type ZM

Photos non contractuelles

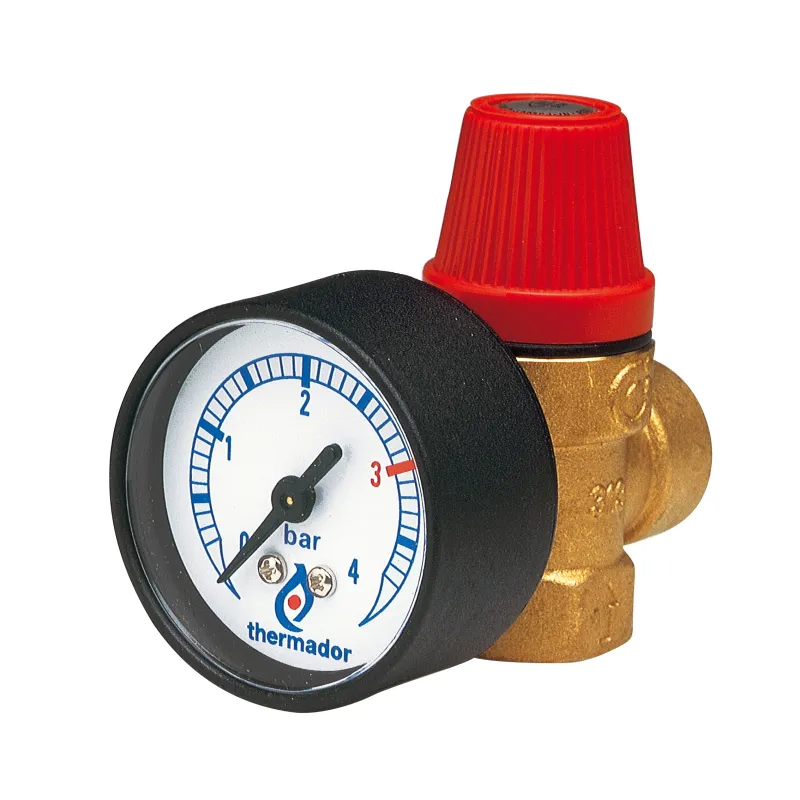

Valve with pressure gauge, 3/4" ZM brass body

Function:

Protection of heating and air conditioning systems against overpressure.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€39.36

39.36 € tax excl.

Unité de vente : Pièce
SSAZMLF20000F20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Valves with pressure gauge mounted FF 3/4" type ZM

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Permitted fluids: water, air
  • Nominal pressure PN10
  • Temperatures 5 / 110°C
  • The valves are manufactured in accordance with Directive 97/23/EC
  • PED category: IV
  • Valve with 3/4" ZM pressure gauge fitted Brass body
  • Calibration (bar): 3
  • Discharge capacity (kW): 100 / (kcal/h): 86,200
  • Connection diameter - Outlet: 3/4" F - 3/4" F

Construction:

  • Stamped brass body
  • EPDM seal & diaphragm
  • UNI 3823 stainless steel spring
  • ABS lever on brass models

Caractéristiques techniques Valves with pressure gauge mounted FF 3/4" type ZM

Data sheet

Reference
SSAZMLF20000F20
Matière
Laiton
Joint
EPDM
Membrane
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
3/4"
Tarage
3 bar
Pression nominale
PN 10
Température minimum
5°C
Température maximum
110°C
Fluide admissible
Air comprimé - Eau
Capacité d'évacuation
100 kW (86200 kcal/h)
Normes et certifications
Catégorie PED : IV - Directive 97/23/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830000431

Download documentation

FT soupapes nanomètre

Soupapes de sécurité chauffage avec manomètre

Download (1.05MB)
