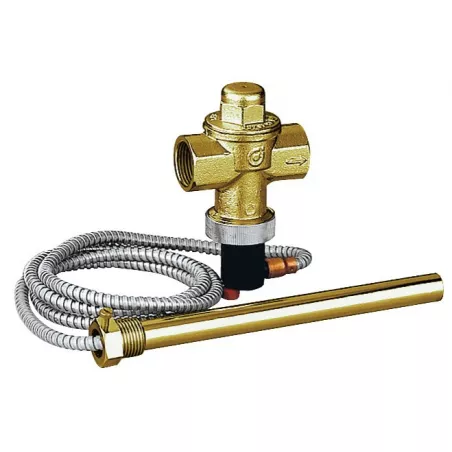

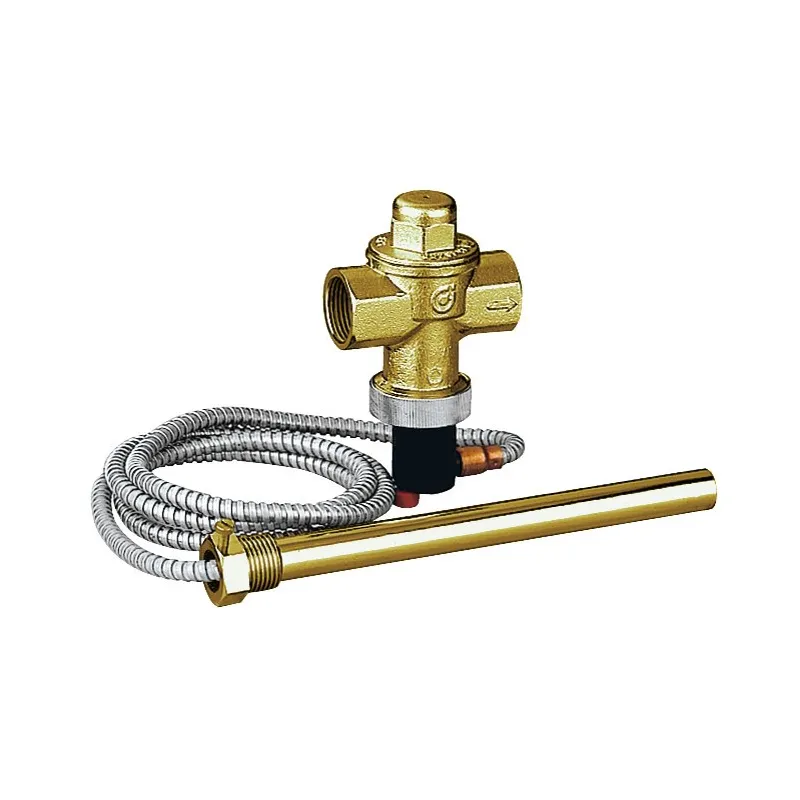

ST543 thermal safety valves for boilers equipped with a safety coil or a DHW tank

Function:

Thermal safety valves are used to protect solid fuel boilers.
In the event of accidental overheating, the boiler is cooled by opening the valve, which evacuates the hot water. The valve alone
cannot regulate the boiler temperature.

The installation of a heating safety valve remains mandatory.
Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€129.25 Tax included

107.71 € tax excl.

Unité de vente : Pièce
SSTEBLF20000F20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information ST543 Thermal Safety Valves

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Trigger temperature: 95°C
  • Maximum operating temperature: 110°C
  • Maximum pressure: 10 bar
  • Discharge flow rate at 110°C under Dp of 1 bar: 3000 l/h
  • Capillary length: 1300 mm

Construction:

  • Die-cast brass body, chrome-plated
  • Stainless steel spring
  • EPDM seals
  • 3/4" F connections

The ST543 valve is used on boilers equipped with a hot water tank or heat exchanger.
When the temperature limit is reached, the valve opens. It drains the hot water from the DHW tank, which is then replenished with cold water from the mains supply.

Caractéristiques techniques ST543 Thermal Safety Valves

Data sheet

Reference
SSTEBLF20000F20
Matière
Laiton chromé
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Pression maximum
10 bar
Température maximum
110°C
Température de début d'ouverture
95°C
Capacité d'évacuation
Pour 110°C sous Dp de 1 bar : 3000l/h
Longueur du caplaire
1300mm
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615015911

Download documentation

FT ST543

Fiche technique soupape de sécurité thermique ST543

Download (467.47KB)
