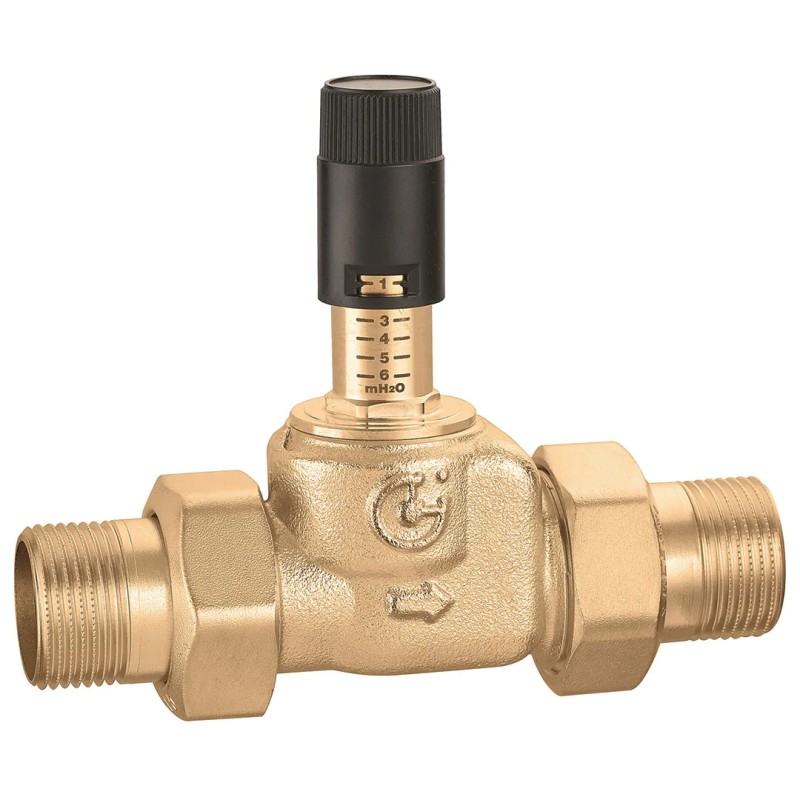

Soupape différentielle à échelle graduée 3/4'' MM montage en ligne
search
  • Soupape différentielle à échelle graduée 3/4'' MM montage en ligne

Photo non contractuelle

Graduated scale differential valve 3/4'' MM in-line mounting

Application:

The differential valve is used in circuits where the flow rate can vary significantly.

It provides a loop whose flow rate is proportional to the number of valves closing in the system, thus limiting the differential pressure generated by the pump.

  • Brass body
  • Max. temperature: 110°C.
  • Max. pressure: 10 bar.
  • Max. power: 100 kW.
  • Setting: 0.1 to 0.6 bar differential.
  • Connection diameter: 3/4" MM.
Plus de détails
Are you an individual?
Are you a professional?

Log in to find out your discount.

€90.98 Tax included

75.82 € tax excl.

Unité de vente : Pièce
SDEGML00000MM20
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information In-line differential valve with graduated scale

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction :

Materials :
  • Body: brass EN 12165 CW617N, brass EN 12165 CB7535 (SD20D)
  • Obturator: brass EN 12164 CW617N, PA6G30 (SD20D / SD20E)
  • Obturator seals: EPDM
  • O-ring seals: EPDM
  • Union gaskets: asbestos-free fiber NBR
  • Handle: ABS
  • Spring: stainless steel
Performance :
  • Medium: water, glycol water
  • Max. percentage of glycol: 30
  • Temperature range: 0°C - 110 °C and 0°C - 100 °C (SD20D and SD20E)
  • Max. working pressure: 10 bar
  • Calibration: 10-60 kPa (1-6 m EC) (SD20, SD33, SD20D and SD20E), 100-400 kPa (10-40 m EC) (SD20CL), 50-250 kPa (5-25 m EC) (SD33P)
  • Connections: 3/4" F (ISO 228-1) x M union (SD20, SD20CL and SD20E), 3/4" M (ISO 228-1) x M union (SD20D), 1 1/4" F (ISO 228-1) x M union (SD33 and SD33P)

    Caractéristiques techniques In-line differential valve with graduated scale

    Data sheet

    Reference
    SDEGML00000MM20
    Corps
    Laiton
    Joint
    EPDM
    Raccordement
    MM (mâle - mâle)
    Diamètre
    3/4"
    Pression maximum
    10 bar
    Température maximum
    110°C
    Puissance électrique
    100 kW
    Unité de vente
    Pièce

    Download documentation

    FT SD20

    Fiche technique soupapes de sûreté différentielles à échelle graduée SD20 / SD20Cl /SD33

    Download (2.82MB)
