Differential safety valves with graduated scale 3/4" (20/27) 1 - 6 m.c.e

Soupapes différentielles
Differential safety valves with graduated scale
search
  • Differential safety valves with graduated scale

Photo non contractuelle

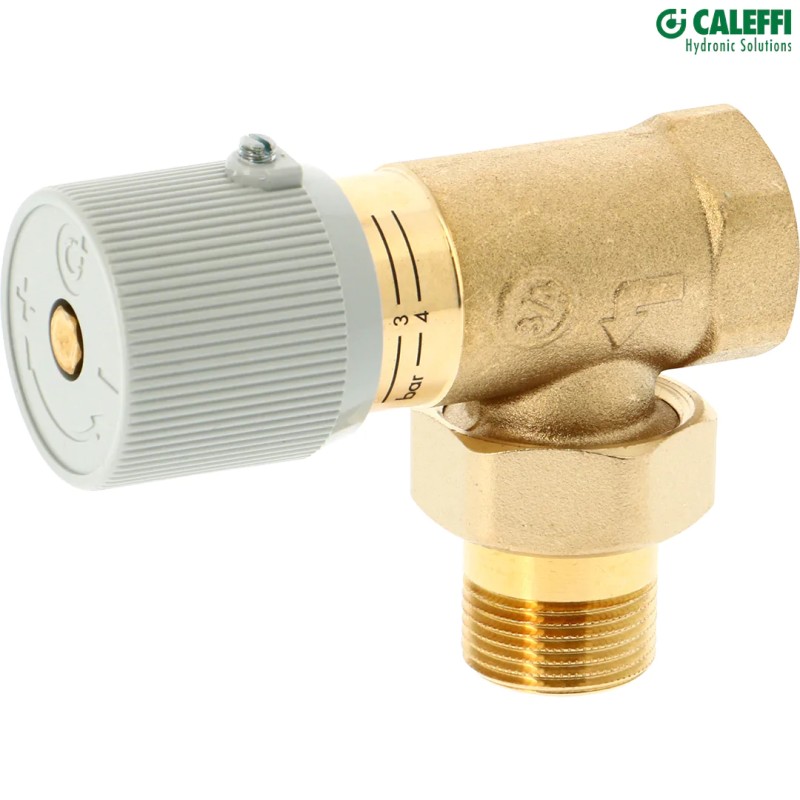

Differential safety valve with graduated scale

  • For adjustment from 0.1 to 0.6 bar
  • Except SD20CL: adjustment 10-40 m.c.e.

Function:

The differential relief valve opens, creating a bypass between the flow and return pipes when the thermostatic valves or zone valves close.
This prevents the circulator from overworking and eliminates noise in the system.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27) 1 - 6 m.c.e
Are you an individual?
Are you a professional?

Log in to find out your discount.

€53.23 Tax included

44.36 € tax excl.

Unité de vente : Pièce
SDEGRLF20000F20
Meter per water column: 1 - 6 m.c.e
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Differential safety valves with graduated scale

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Maximum temperature: 110°C.
  • Maximum pressure: 10 bar.
  • Adjustment: 0.1 to 0.6 bar differential. (except SD20CL: adjustment 10-40 m.c.e.)
  • Brass body.
  • Glycol: 30%.
  • Angle mounting, with removable nut

Construction:

  • Brass body
  • Ethylene propylene seals
  • Stainless steel spring
  • Reinforced plastic handle

Item code Fitting Power Characteristics reference
SD20 3/4" FM 46 kW adjustment 1-6 m.c.e. SDEGRLF20000F20
SD20CL 3/4" FM   10-40 m.c.e. adjustment SDICLF32000F32
SD33 1-1/4" FM 232 kW 1-6 m.c.e. setting SDEGRLF32000M32

3/4" FM adjustment 10-40 m.c.e. is a special model for air conditioning systems.

Caractéristiques techniques Differential safety valves with graduated scale

Data sheet

Reference
SDEGRLF20000F20
Matière
Laiton
Joint
Éthylène-propylène
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Pression maximum
10 bar
Température maximum
110°C
Fluide admissible
Eau Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523831000096

Download documentation

FT SD20

Fiche technique soupapes de sûreté différentielles à échelle graduée SD20 / SD20Cl /SD33

Download (2.82MB)

Caractéristiques liées à la version du produit Differential safety valves with graduated scale

Voici la liste des références et poids correspondants aux options séléctionnées.
SDEGRLF20000F20 - Differential safety valves with graduated scale - 1 - 6 m.c.e - 3/4" (20/27)
Meter per water column 1 - 6 m.c.e
Diameter (in inches) 3/4" (20/27)
Packed weight 0,42735kg
44.36 € tax excl.
Consulter
SDEGRLF32000M32 - Differential safety valves with graduated scale - 1 - 6 m.c.e - 1"1/4 (33/42)
Meter per water column 1 - 6 m.c.e
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,113kg
169.42 € tax excl.
Consulter
SDPICLF32000F32 - Differential safety valves with graduated scale - 10 - 40 m.c.e - 3/4" (20/27)
Meter per water column 10 - 40 m.c.e
Diameter (in inches) 3/4" (20/27)
Packed weight 0,4473kg
46.67 € tax excl.
Consulter
SDEGRL525F32M32 - Differential safety valves with graduated scale - 5 - 25 m.c.e - 1"1/4 (33/42)
Meter per water column 5 - 25 m.c.e
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,113kg
168.77 € tax excl.
Consulter
Référence - Désignation Meter per water column Diameter (in inches) Packed weight Prix
SDEGRLF20000F20 - Differential safety valves with graduated scale - 1 - 6 m.c.e - 3/4" (20/27) 1 - 6 m.c.e 3/4" (20/27) 0,42735kg 44.36 € tax excl.
SDEGRLF32000M32 - Differential safety valves with graduated scale - 1 - 6 m.c.e - 1"1/4 (33/42) 1 - 6 m.c.e 1"1/4 (33/42) 1,113kg 169.42 € tax excl.
SDPICLF32000F32 - Differential safety valves with graduated scale - 10 - 40 m.c.e - 3/4" (20/27) 10 - 40 m.c.e 3/4" (20/27) 0,4473kg 46.67 € tax excl.
SDEGRL525F32M32 - Differential safety valves with graduated scale - 5 - 25 m.c.e - 1"1/4 (33/42) 5 - 25 m.c.e 1"1/4 (33/42) 1,113kg 168.77 € tax excl.
