313 Series Brass Safety Valves, Type Z 1/2¨f 3 bar

Soupapes sans nanomêtre

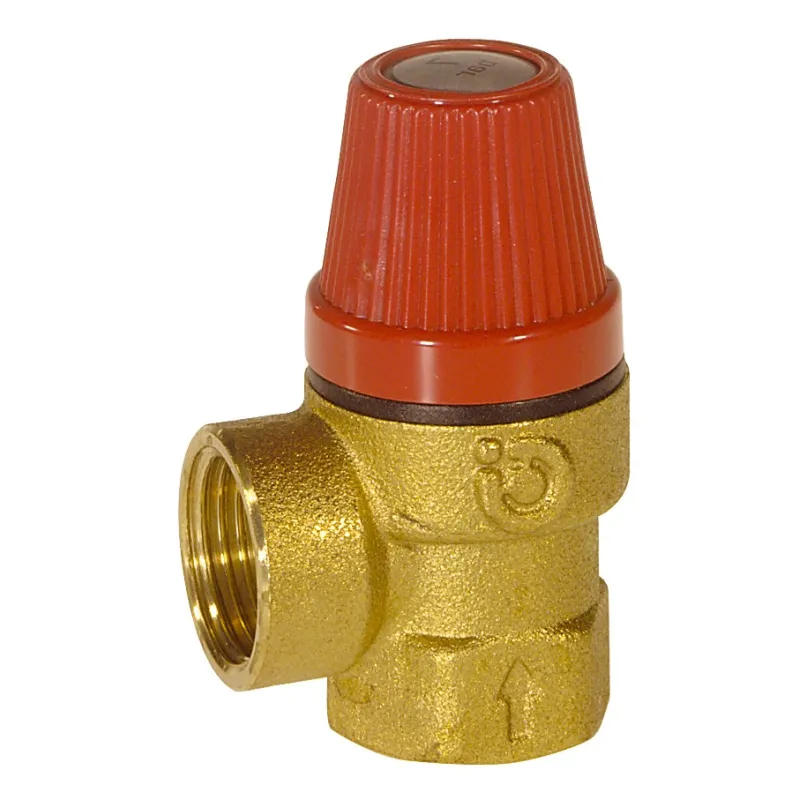

Soupapes de sécurité laiton série 313 Z
search
  • Soupapes de sécurité laiton série 313 Z
  • Soupapes de sécurité laiton série 313 type Z

Photos non contractuelles

Safety valve for heating and air conditioning, S15Z and S20Z series

FUNCTION:

Protects heating and air conditioning systems against overpressure.

Temperature 5/110°C

Plus de détails
Normes et certifications : NFType de raccordement : Á visser BSP (pas du gaz)1
1/2¨f 3 bar
Are you an individual?
Are you a professional?

Log in to find out your discount.

€15.64 Tax included

13.03 € tax excl.

Unité de vente : Pièce
SSSM1LF15000F15
Fittings - female exhaust ø: 1/2¨F
Calibration (bar): 3 bar
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 313 Series Brass Safety Valves, Type Z

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Construction:

  • Stamped brass body
  • EPDM seal & membrane
  • UNI 3823 stainless steel spring
  • ABS lever on brass models

Functional characteristics:

  • Permitted fluids: water, air
  • Nominal pressure PN10
  • Temperatures 5/110°C
  • The valves are manufactured in accordance with Directive 97/23/EC
  • PED category: IV



Type Calibration

Max. power

ø

 Code Reference
(bar)

(kW)

 (Kcal/h

Connection - Exhaust
313 1/2 Z 2.5 72.3 62 1/2"F - 1/2"F S15Z25 SSSM1LF15000F15
313 1/2 Z 3 82.5 71,000 1/2"F - 1/2"F S15Z SSSM1LF15001F15
3/4 Z 3 82.5 71,000 3/4"F - 3/4"F S20Z3 SSSM1LF20002F20
3/4 Z 4 103.3 89,000 3/4"F - 3/4"F S20Z4 SSSM1LF20003F20
3/4 Z 5 123.6 106,600 3/4"F - 3/4"F S20Z5 SSSM1LF20004F20

Caractéristiques techniques 313 Series Brass Safety Valves, Type Z

Data sheet

Reference
SSSM1LF15000F15
Matière
Laiton
Joint
EPDM
Membrane
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Tarage
En fonction du modèle choisi
Pression nominale
PN 10
Température minimum
5°C
Température maximum
110°C
Fluide admissible
Air comprimé Eau
Capacité d'évacuation
En fonction du modèle choisi
Normes et certifications
Catégorie PED : IV Directive 97/23/CE NF
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615003543

Download documentation

FT S15Z et S20Z série

Fiche Technique soupapes sécurité laiton S15Z et S20Z série

Download (662.63KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit 313 Series Brass Safety Valves, Type Z

Voici la liste des références et poids correspondants aux options séléctionnées.
SSSM1LF15001F15 - 313 Series Brass Safety Valves, Type Z - 1/2¨F - 2.5 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 2.5 bar
Packed weight 0,11235kg
14.43 € tax excl.
Consulter
SSSM1LF15000F15 - 313 Series Brass Safety Valves, Type Z - 1/2¨F - 3 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 3 bar
Packed weight 0,1428kg
13.03 € tax excl.
Consulter
SSSM1LF20004F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 5 bar
Fittings - female exhaust ø 3/4¨F
Calibration (bar) 5 bar
Packed weight 0,2016kg
31.3 € tax excl.
Consulter
SSSM1LF20003F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 4 bar
Fittings - female exhaust ø 3/4¨F
Calibration (bar) 4 bar
Packed weight 0,1848kg
30.71 € tax excl.
Consulter
SSSM1LF20002F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 3 bar
Fittings - female exhaust ø 3/4¨F
Calibration (bar) 3 bar
Packed weight 0,1848kg
30.32 € tax excl.
Consulter
Référence - Désignation Fittings - female exhaust ø Calibration (bar) Packed weight Prix
SSSM1LF15001F15 - 313 Series Brass Safety Valves, Type Z - 1/2¨F - 2.5 bar 1/2¨F 2.5 bar 0,11235kg 14.43 € tax excl.
SSSM1LF15000F15 - 313 Series Brass Safety Valves, Type Z - 1/2¨F - 3 bar 1/2¨F 3 bar 0,1428kg 13.03 € tax excl.
SSSM1LF20004F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 5 bar 3/4¨F 5 bar 0,2016kg 31.3 € tax excl.
SSSM1LF20003F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 4 bar 3/4¨F 4 bar 0,1848kg 30.71 € tax excl.
SSSM1LF20002F20 - 313 Series Brass Safety Valves, Type Z - 3/4¨F - 3 bar 3/4¨F 3 bar 0,1848kg 30.32 € tax excl.
