High-temperature safety valves 1/2¨f 4 bar

Soupapes sans nanomêtre

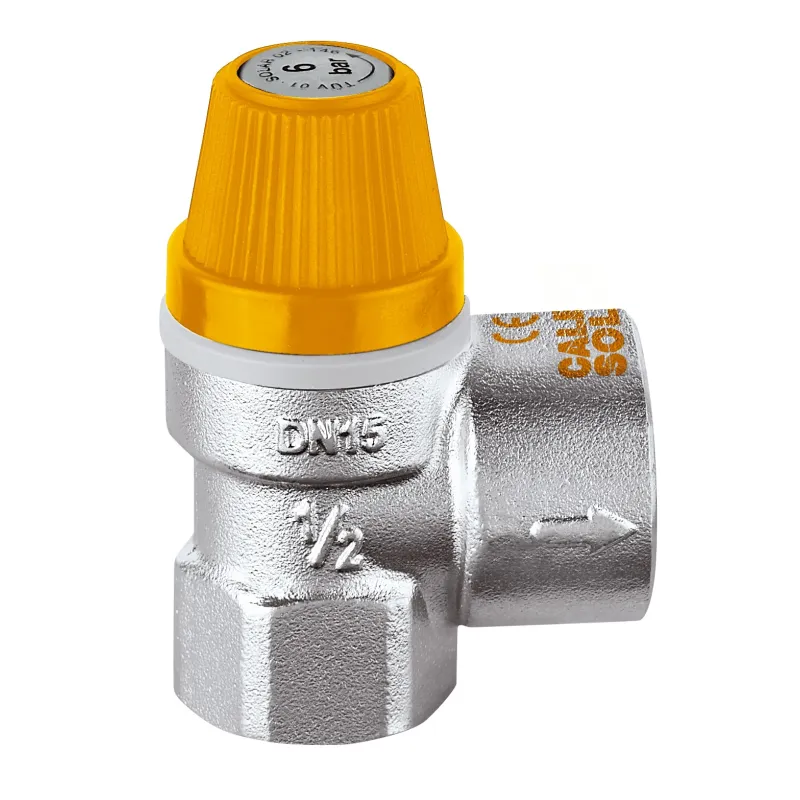

Soupapes de sécurité haute température SHT15C et SHT20G
search
  • Soupapes de sécurité haute température série SHT15C et SHT20G
  • Soupapes de sécurité haute température SHT15C et SHT20G

Photos non contractuelles

Safety valve for heating and air conditioning, SHT15C and SHT20G solar series

Function:

Protection of heating systems operating at high temperatures. Particularly suitable for solar installations.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/2¨f 4 bar
Are you an individual?
Are you a professional?

Log in to find out your discount.

€29.29 Tax included

24.41 € tax excl.

Unité de vente : Pièce
SHTGSLF15007F15
Fittings - female exhaust ø: 1/2¨F
Calibration (bar): 4 bar
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information High-temperature safety valves

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional characteristics:

  • Permitted fluids: water and glycol solutions
  • Maximum glycol percentage: 50% (brass model) 100% (bronze model)
  • Nominal pressure: PN10
  • Maximum temperature: +160°C (brass model) +120°C (bronze model)
  • PED category: IV
  • TUV SV100 7.7 certification (brass model)
  • TUV approval 2013 (bronze model)
  • Overpressure on opening: 10%
  • Closing deviation: 20%
  • Discharge power: 50 kW (brass model) 100 kW (bronze model)

Brass model construction:

  • Chrome-plated brass body Brass shaft
  • Seals: high-strength elastomers
  • Stainless steel spring

Bronze model construction:

  • Reinforced PA6G30 handle
  • Bronze body
  • Metal seat / high-strength EPDM
  • Integrated diaphragm protecting the spring

Caractéristiques techniques High-temperature safety valves

Data sheet

Reference
SHTGSLF15007F15
Matière
En fonction du modèle choisi
Joint
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Tarage
En fonction du modèle choisi
Pression nominale
PN 10
Température minimum
5°C
Température maximum
En fonction du modèle choisi
Fluide admissible
Eau - Eau glycolée
Capacité d'évacuation
En fonction du modèle choisi
Homologation
TUV 2013 - TUV SV100 7,7
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615075410

Download documentation

FT SHT15C et SHT20G

Fiche technique soupapes de sécurité haute température série SHT15C et SHT20G

Download (713.7KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit High-temperature safety valves

Voici la liste des références et poids correspondants aux options séléctionnées.
SHTGSLF15006F15 - High-temperature safety valves - 1/2¨F - 3 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 3 bar
Packed weight 0,2121kg
24.41 € tax excl.
Consulter
SHTGSLF15009F15 - High-temperature safety valves - 1/2¨F - 10 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 10 bar
Packed weight 0,2163kg
24.34 € tax excl.
Consulter
SHTGSLF15008F15 - High-temperature safety valves - 1/2¨F - 6 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 6 bar
Packed weight 0,2142kg
24.41 € tax excl.
Consulter
SHTGSLF15007F15 - High-temperature safety valves - 1/2¨F - 4 bar
Fittings - female exhaust ø 1/2¨F
Calibration (bar) 4 bar
Packed weight 0,2142kg
24.41 € tax excl.
Consulter
SHTGSBF20010F20 - High-temperature safety valves - 3/4¨F - 6 bar
Fittings - female exhaust ø 3/4¨F
Calibration (bar) 6 bar
Packed weight 0,4515kg
49.04 € tax excl.
Consulter
SHTGSBF20001F20 - High-temperature safety valves - 3/4¨F - 10 bar
Fittings - female exhaust ø 3/4¨F
Calibration (bar) 10 bar
Packed weight 0,45255kg
49.04 € tax excl.
Consulter
Référence - Désignation Fittings - female exhaust ø Calibration (bar) Packed weight Prix
SHTGSLF15006F15 - High-temperature safety valves - 1/2¨F - 3 bar 1/2¨F 3 bar 0,2121kg 24.41 € tax excl.
SHTGSLF15009F15 - High-temperature safety valves - 1/2¨F - 10 bar 1/2¨F 10 bar 0,2163kg 24.34 € tax excl.
SHTGSLF15008F15 - High-temperature safety valves - 1/2¨F - 6 bar 1/2¨F 6 bar 0,2142kg 24.41 € tax excl.
SHTGSLF15007F15 - High-temperature safety valves - 1/2¨F - 4 bar 1/2¨F 4 bar 0,2142kg 24.41 € tax excl.
SHTGSBF20010F20 - High-temperature safety valves - 3/4¨F - 6 bar 3/4¨F 6 bar 0,4515kg 49.04 € tax excl.
SHTGSBF20001F20 - High-temperature safety valves - 3/4¨F - 10 bar 3/4¨F 10 bar 0,45255kg 49.04 € tax excl.
