2-piece straight radiator kit consisting of a TTC thermostatic head and a chrome-plated straight thermostatic body 1/2" (15/21)

Têtes thermostatiques
tête thermostatique TTC et d'un corps thermostatique droit chromé
search
  • tête thermostatique TTC et d'un corps thermostatique droit chromé

Photo non contractuelle

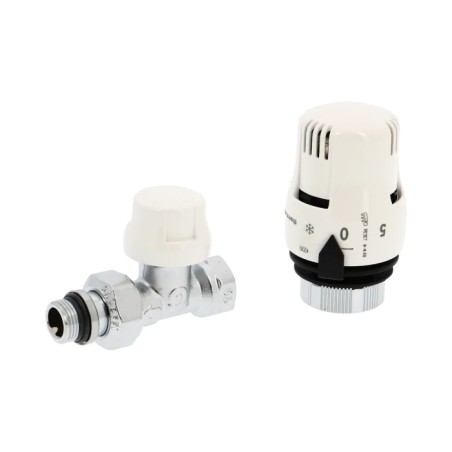

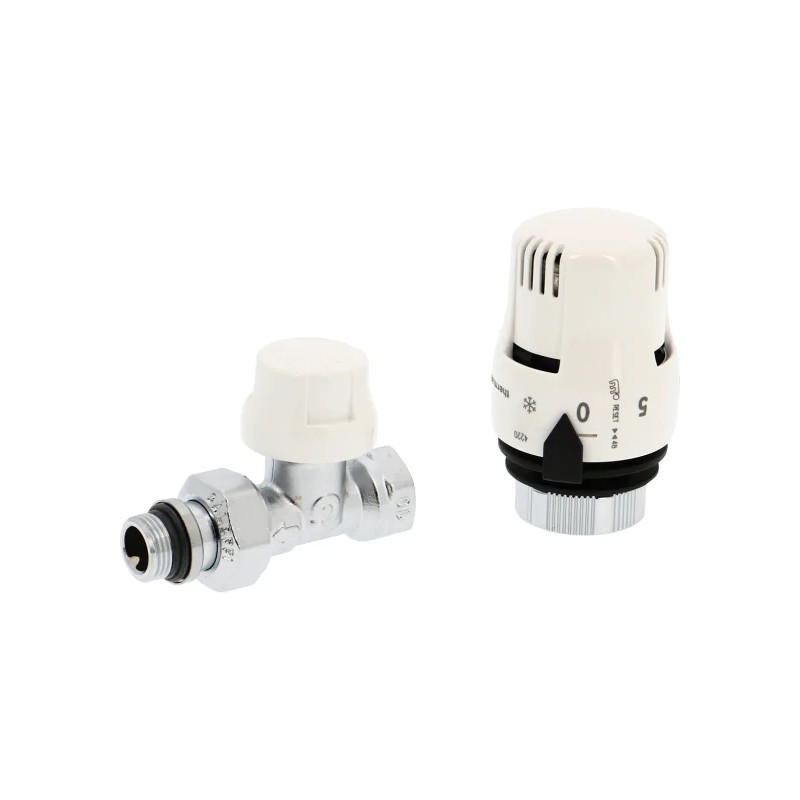

2-piece straight radiator kit consisting of a TTC thermostatic head and a straight chrome-plated thermostatic body

Usage:

The thermostatic valve automatically regulates the temperature emitted by the radiator by controlling the flow of incoming hot water. The thermostatic head is the driving force behind this.

The kit consists of a TTC thermostatic head and a CT15D straight thermostatic body with a self-sealing sleeve.

CA 0.2K certified.

Plus de détails
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€35.18 Tax included

29.32 € tax excl.

Unité de vente : Le kit
KID2R0000000015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 2-piece straight radiator kit consisting of a TTC thermostatic head and a chrome-plated straight thermostatic body

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Functional Features:

TTC Thermostatic Head:
  • Adjustment range: 5°C
  • Temperature adjustment range: 7 to 28°C
  • Freeze protection: 7°C
  • Storage temperature: -10 to 50°C
  • Pitch: 30 x 1.5
  • Water, glycol water: 30%
  • Maximum glycol percentage: 1 bar
  • Maximum operating pressure: 10 bar
  • Heat transfer fluid temperature range: 5 to 100 °C
  • Time variation: VT = 0.25
Thermostatic valve:
  • P max: 10 bar
  • Temperature range: 5 to 100°C
  • Diameter: 3/8"
  • Compatible fluids: water, glycol-water mixture
  • Max. glycol content: 30%
  • Max. differential pressure with control: 1 bar
  • Body: Brass EN 12165 CW617N, Chrome-plated
  • Control stem: Stainless steel
  • Seals: EPDM
  • Protective cap: ABS (RAL 9010)

Standardization

Value certified by EUROVENT CERTITA Certification.

TTC series thermostatic heads comply with EN 215

    Caractéristiques techniques 2-piece straight radiator kit consisting of a TTC thermostatic head and a chrome-plated straight thermostatic body

    Data sheet

    Reference
    KID2R0000000015
    Corps
    Laiton titré CW617N chromé
    Joint
    EPDM
    Unité de vente
    Le kit

    Download documentation

    FT KTCT12E

    Fiche technique KTCT12E

    Download (480.14KB)

    Caractéristiques liées à la version du produit 2-piece straight radiator kit consisting of a TTC thermostatic head and a chrome-plated straight thermostatic body

    Voici la liste des références et poids correspondants aux options séléctionnées.
