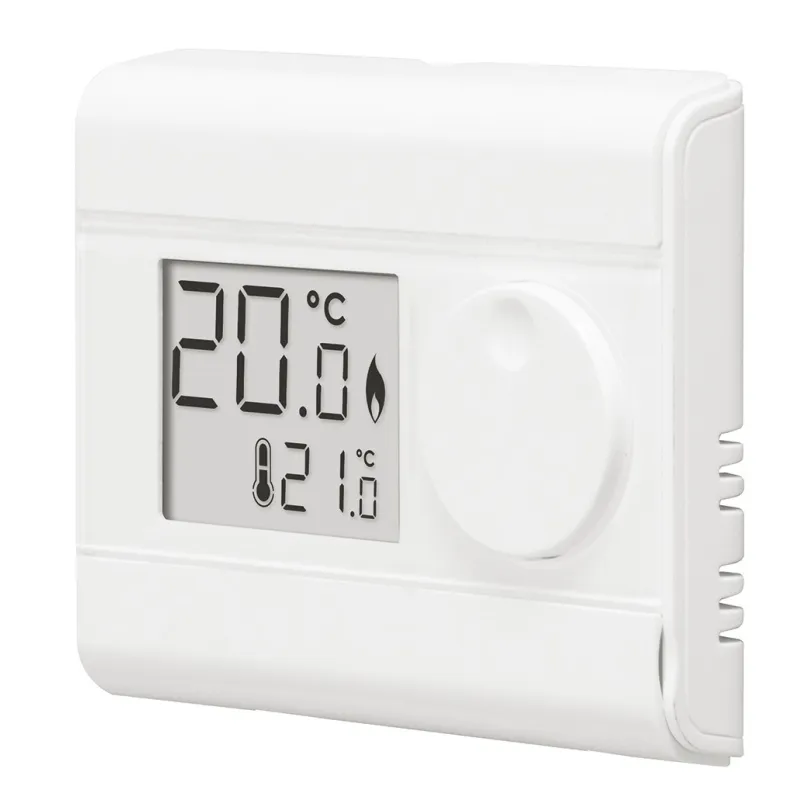

Wired programmable room thermostat

Technical specifications:

• Power supply: 2 x 1.5V LR6 alkaline batteries included—typical battery life 2 years.
• Setpoint temperature adjustment: between 5°C and 30°C in 0.5°C increments.
• Operating temperature: 0°C to 40°C.
• Protection rating: IP30 - Class II
• Output contact: changeover type or switchable normally open (NO) or normally closed (NC).
• Breaking capacity: 5(2)A / 24-250V 50-60Hz
• Connection: via screw terminal for 1 mm² to 1.5 mm² cable.
• Heating indicator: displayed on the screen during heating.
• Simple connection: 2- or 3-wire
• Dimensions: height 95 mm, width 120 mm, depth 30 mm (without wall mount)
• Mounting: wall-mounted or on a base for radio-wave models, and wall-mounted only for wired models.
• Color: White RAL 9016
• Net weight: 195 g
• Applicable standards: EN60730-1; EN60730-2-9; EN62311 in compliance with EC directives

Programmable models:

Programming:

• A program is pre-set but remains fully customizable for each day of the week with 3 adjustable comfort zones.
• Boost mode: The boost function provides comfort for 1 hour.
• Ease of use: a dedicated button for each function for maximum ease of adjustment.
• Control type: PID or ON/OFF, adjustable
• Advanced settings: Celsius or Fahrenheit, 12-hour or 24-hour display, room sensor calibration, programming lock, reset to default settings (factory settings).
