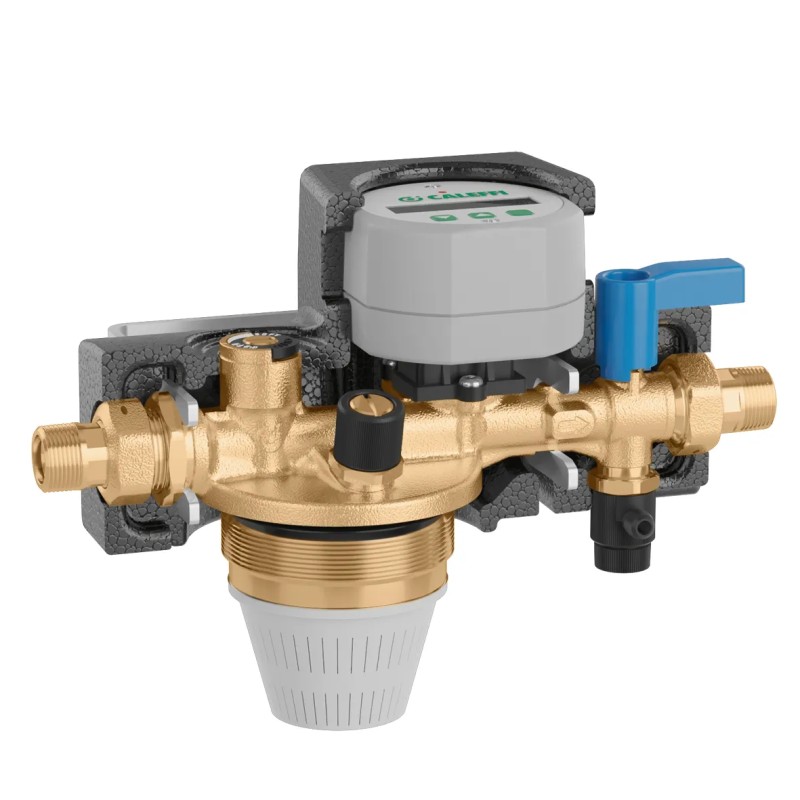

Water treatment unit

Compositions :

1. Check valve
2. Wall mounting bracket
3. Unit body
4. Drain valve
5. Downstream ball shut-off valve
6. Electronic controller
7. Volumetric meter
8. Electrical conductivity cell
9. By-pass control
10. Preformed insulation shell
11. Air bleed valve

Functional features :

Water treatment unit :

• Max. operating pressure: 6 bar
• Operating temperature range: 4 to 30°C
• KV: 0.6 m³/h

Demineralization :

• Nominal flow rate: 4 l/min
• Max. working pressure: 4 bar
• Working temperature range: 4 to 30 °C
• Storage temp. Storage : 5 to 40 °C
• Electrical conductivity : <10 µS/cm
• Connections : 2" 1/2-8 NPS

Softener :

• Nominal flow rate: 4 l/min
• Max. working pressure: 4 bar
• Working temperature range: 4 to 30 °C
• Storage temp. Storage: 5 to 40 °C
• Electrical conductivity: <0.1 °f/°dH
• Connections: 2" 1/2-8 NPS

Construction:

Water treatment unit :

• Water treatment unit: Brass body EN 12164 CW617N
• Male / Male connection 3/4" diameter
• With valve, flowmeter, pre-equipped for drain and sample connection
• Cartridge thread 2"1/2 NPSM.

Insulating shell :

• Material: EPP
• Density: 30 kg/m³
• Temperature range -40 to 110°C

Demineralization:

• The cartridge demineralizes water by ion exchange.

Softening:

• The cartridge contains resins for water softening by cation exchange.
