  • Tube PER pré-gainé double

Photo non contractuelle

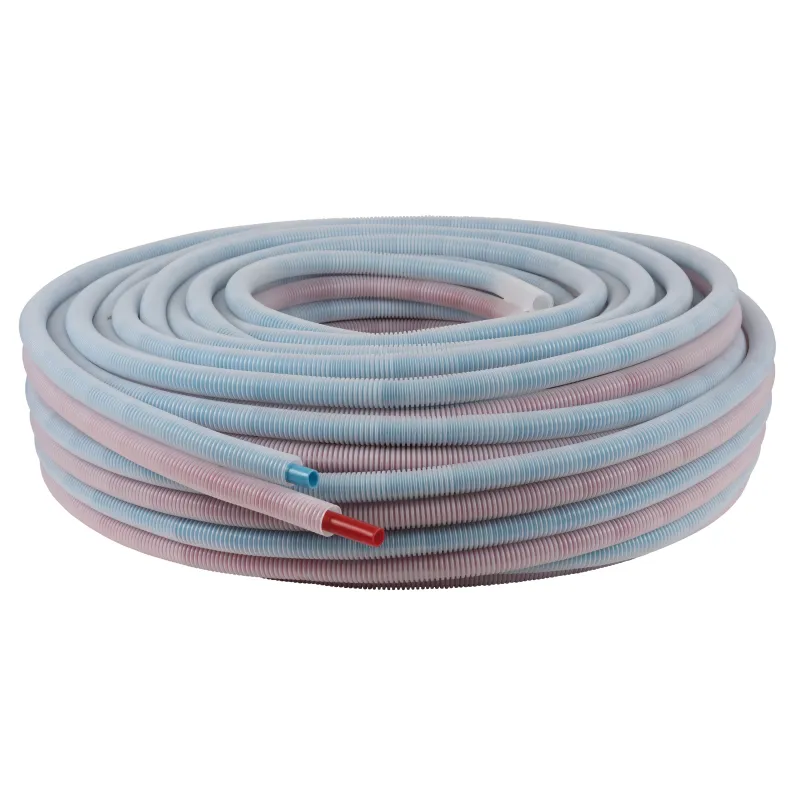

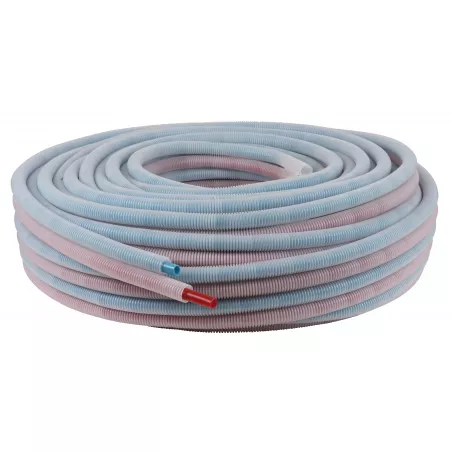

Double-walled blue and red pre-insulated PER tubing

Diameter 13 x 16 Sold in 50-meter rolls

Description:

Piping system based on PE-Xa pipes designed for heating systems, hot and cold domestic water distribution, and closed-loop cold or chilled water circuits.

Standards and certifications:

  • CSTB Technical Approval
  • Compliance with ISO 10508
  • Compliance with EN ISO 15875
  • ACS Certificate of Sanitary Conformity
Plus de détails
Frais de livraison : Des frais de livraison supplémentaires de 15 € sont requis et excluent l'option de livraison gratuite pour les paniers pesant moins de 30 kg. Cependant, la livraison gratuite reste possible pour les paniers dont le montant dépasse 500 €.
Normes et certifications : Certification ACSNormes et certifications : Avis technique CSTBFluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€141.65 Tax included

118.04 € tax excl.

Unité de vente : Couronne
PERPD013X16T050
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Double-walled pre-insulated PER pipe

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

The sleeves are welded every 60 cm and can be detached as needed.
The translucent sleeve, which is just as durable, provides the user with better visibility of the product’s features and markings.

Applications:

  • Class 2: 6 bar – Domestic hot water supply (and domestic cold water 20 °C / 10 bar)
  • Class 4: 6 bar – Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar – High-temperature radiators,
  • "Chilled Water" Class: 10 bar

Technical specifications:

  • Cross-linked polyethylene (PE-Xa) tubing
  • Coefficient of thermal expansion 0.16 mm/m·K
  • Thermal conductivity 0.35 W/m·K
  • Translucent HDPE sheath
  • Sheath welded every 60 cm and detachable

To secure the pre-sheathed pipe (single or double) to the concrete slab, use FIXATUB plastic clamps, at a rate of one clamp per meter on average.

Be sure to take expansion and contraction into account during the design and installation of the system. Pipes must be able
to expand freely without causing damage to supports, fittings (especially valves), and wall penetrations (when pipes are installed exposed or in conduits).

You must:

  • Either ensure that the pipes are guided to a fixed point
  • Or allow for free movement of the pipes between two connections

Caractéristiques techniques Double-walled pre-insulated PER pipe

Data sheet

Reference
PERPD013X16T050
Système
PER/PB
Matière
Polyéthylène réticulé PE-Xb
Type de raccordement
Sertissage radial Sertissage à glissement
Diamètre
En fonction du modèle choisi
Pression maximum
Entre 6 et 10 bar (voir champs d'application)
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Avis technique CSTB Certification ACS Conformité EN ISO 15875 Conformité ISO 10508
Équipements
Gaine plastique
Unité de vente
Couronne
Garantie fabricant
1 an

Specific References

ean13
3519610029754

Download documentation

FT112

Fiche technique Tube PER pré-gainé double FT112-V1

Download (627.17KB)
