Uncoated PER BAO tube 13 - 16 120 mètres

Tubes hydrodistribution
Tube PER BAO nu
search
  • Tube PER BAO nu

Photo non contractuelle

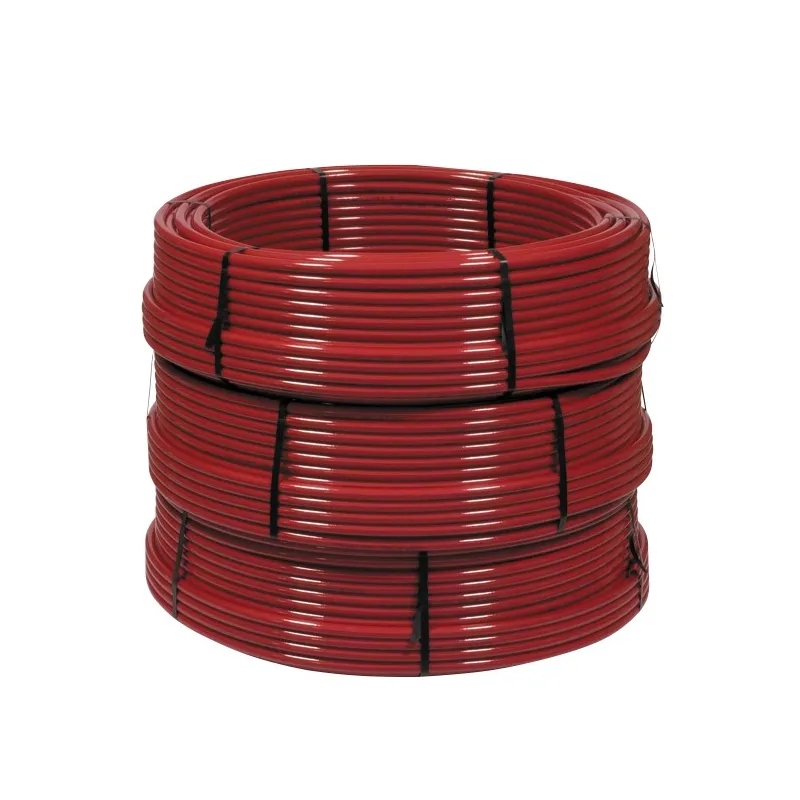

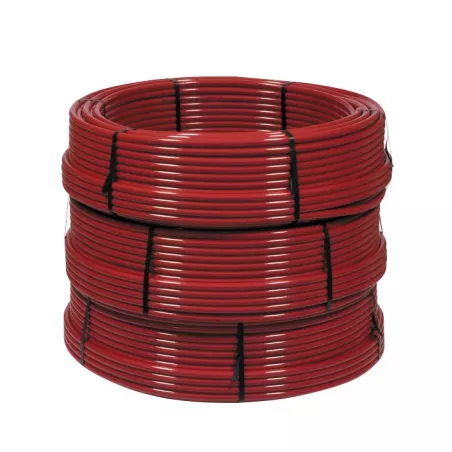

PER tube with red oxygen barrier (BAO)

Description:

Piping system based on PE-Xa pipes with an oxygen barrier, designed for heating installations.

Standards and certification:

  • CSTB Technical Approval
  • Compliance with ISO 10508
  • Compliance with EN ISO 15875

To be used exclusively with radial-type press fittings (click here).

Slip-on fittings cannot be used due to the tube’s outer diameter (which is larger than the inner diameter of the brass ring).

Class 4, Class 5 for heating only.

Plus de détails
Frais de livraison : Des frais de livraison supplémentaires de 15 € sont requis et excluent l'option de livraison gratuite pour les paniers pesant moins de 30 kg. Cependant, la livraison gratuite reste possible pour les paniers dont le montant dépasse 500 €.
Normes et certifications : Avis technique CSTB1
13 - 16 120 mètres
Are you an individual?
Are you a professional?

Log in to find out your discount.

€138.49 Tax included

115.41 € tax excl.

Unité de vente : Couronne
PERBAO13X160120
Diameter Ø: 13 - 16
Length: 120 mètres
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Uncoated PER BAO tube

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

  • Class 4: 6 bar - Low-temperature radiators, underfloor heating,
  • Class 5: 6 bar - High-temperature radiators,

Technical specifications:

  • Cross-linked polyethylene (PE-Xa) tubing
  • EVOH oxygen barrier
  • Coefficient of thermal expansion 0.16 mm/m·K
  • Thermal conductivity 0.35 W/m·K

Be sure to take expansion and contraction into account during the design and installation of the system. Pipes must be able
to expand freely without causing damage to supports, fittings (especially valves), and wall penetrations (when pipes are installed exposed or in conduits).

It is necessary to:

  • Either ensure that the pipes are guided to a fixed point
  • Or allow for free movement of the pipes between two connections

Caractéristiques techniques Uncoated PER BAO tube

Data sheet

Reference
PERBAO13X160120
Système
PER/PB
Matière
Polyéthylène réticulé PE-Xb
Type de raccordement
Sertissage radial
Diamètre
En fonction du modèle choisi
Pression maximum
6 bar
Fluide admissible
Eau chauffage
Normes et certifications
Avis technique CSTB Conformité EN ISO 15875 Conformité ISO 10508
Unité de vente
Couronne
Garantie fabricant
1 an

Specific References

ean13
3519610009862

Download documentation

FT116

Fiche technique Tube PER BAO nu FT116-V1

Download (218.37KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Uncoated PER BAO tube

Voici la liste des références et poids correspondants aux options séléctionnées.
PERBAO13X160120 - Uncoated PER BAO tube - 13 - 16 - 120 mètres
Diameter Ø 13 - 16
Length 120 mètres
Packed weight 10,458kg
115.41 € tax excl.
Consulter
PERBAO13X160240 - Uncoated PER BAO tube - 13 - 16 - 240 mètres
Diameter Ø 13 - 16
Length 240 mètres
Packed weight 20,916kg
230.85 € tax excl.
Consulter
PERBAO16X200120 - Uncoated PER BAO tube - 16 x 20 - 120 mètres
Diameter Ø 16 x 20
Length 120 mètres
Packed weight 16,254kg
153.89 € tax excl.
Consulter
PERBAO16X200240 - Uncoated PER BAO tube - 16 x 20 - 240 mètres
Diameter Ø 16 x 20
Length 240 mètres
Packed weight 32,508kg
307.78 € tax excl.
Consulter
PERBAO20X250050 - Uncoated PER BAO tube - 20 x 25 - 50 mètres
Diameter Ø 20 x 25
Length 50 mètres
Packed weight 8,925kg
119.86 € tax excl.
Consulter
Référence - Désignation Diameter Ø Length Packed weight Prix
PERBAO13X160120 - Uncoated PER BAO tube - 13 - 16 - 120 mètres 13 - 16 120 mètres 10,458kg 115.41 € tax excl.
PERBAO13X160240 - Uncoated PER BAO tube - 13 - 16 - 240 mètres 13 - 16 240 mètres 20,916kg 230.85 € tax excl.
PERBAO16X200120 - Uncoated PER BAO tube - 16 x 20 - 120 mètres 16 x 20 120 mètres 16,254kg 153.89 € tax excl.
PERBAO16X200240 - Uncoated PER BAO tube - 16 x 20 - 240 mètres 16 x 20 240 mètres 32,508kg 307.78 € tax excl.
PERBAO20X250050 - Uncoated PER BAO tube - 20 x 25 - 50 mètres 20 x 25 50 mètres 8,925kg 119.86 € tax excl.
