RBS 2-piece stainless steel ball valve, ASTM A351 CF8M 1/4" (8/13) red flat handle

Name: RBS 2-piece stainless steel ball valve, ASTM A351 CF8M 1/4 (8/13) red flat handle
Brand: THERSANE
SKU: 70600CCD0BFF008
Price: 16.88 EUR
Availability: InStock

Vannes à sphère acier inox

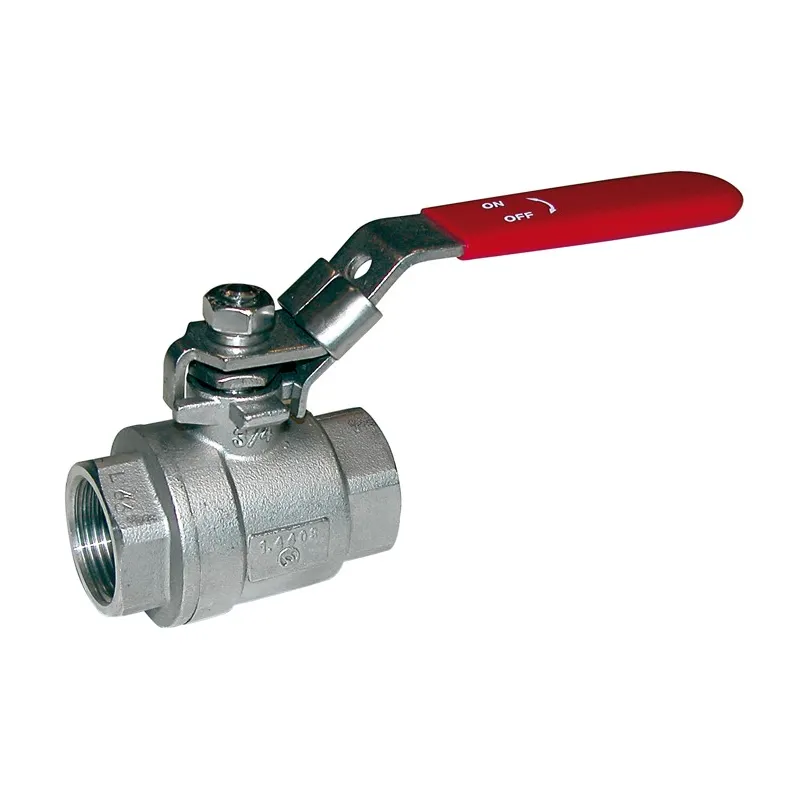

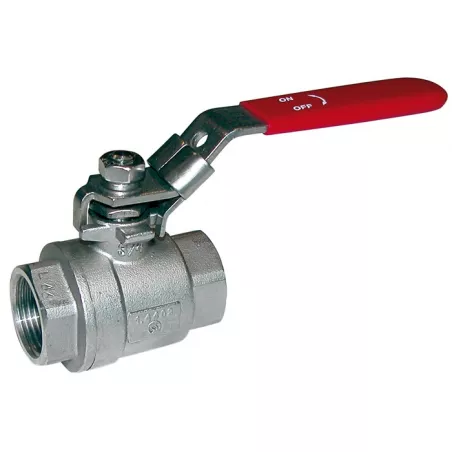

Robinet à tournant sphérique série 706 RBS 2 pièces inox ASTM A351 CF8M

Photos non contractuelles

RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, female-female

2-piece stainless steel ball valve PN63 ~ 2-piece stainless steel ball valve PN63

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -20°C to +180°C Maximum permissible
pressure Ps: 63 bar up to DN3/4“, 50 bar from 1" to 1-1/4", 40 bar from 1-1/2" to 2", 25 bar from 2-1/2" to 3", 16 bar at 4" (see curve)

CCPU 3.1 material certificate available

Stainless steel valve with BSP threads, red handle, from DN 1/4" to DN 4", red handle or butterfly lever

Plus de détails

Normes et certifications : TUV PED 97/23/CE

Type de raccordement : Á visser BSP (pas du gaz)

1/4" (8/13) red flat handle

Are you an individual?

Are you a professional?

€16.88 Tax included

14.07 € tax excl.

Unité de vente : Pièce

Reference : 70600CCD0BFF008

Diameter (in inches): 1/4" (8/13)

Handle type: Red flat handle

Red flat handle
Red butterfly lever

Quantity

Consulter les produits disponibles sous forme de liste

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Your PRO THERSANE access

Ranges / Conditions / Benefits

View benefits

FREE SHIPPING

From €150 incl. VAT

For a cart not exceeding 30Kg

NEED HELP?

(+33) 04 28 54 00 69

Certificates materials pour RBS 2-piece stainless steel ball valve, ASTM A351 CF8M

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece stainless steel ball valve, ASTM A351 CF8M

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

Full-size
Non-ejectable shaft
PTFE gland
Lockable handle
Solid ball
2-piece model

Construction:

Stainless steel ball, ASTM A351 CF8M.
PTFE gland.
Non-ejectable shaft: ASTM A182 F316 stainless steel.
PTFE seat.
Padlockable handle.
Sizes: 1/4" to 4"
Connection: BSP threaded
Material: Stainless steel

Standardization:

Manufactured in accordance with ISO 9001:2008
DIRECTIVE 97/23/EC: CE No. 0035 Risk
Category III Module H
Leak testing in accordance with ISO 5208, Class A
Cylindrical BSP female threaded connection in accordance with ISO 228-1
Female NPT threaded connection in accordance with ANSI B1.20

Nominal Ø	1/4"	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2 1/2"	3"
Passage diameter	9.2	12.5	15	20	25	32	38	50	65	80
PS	63	63	63	63	50	50	40	40	25	25
Track width	48.6	52.5	59	65	76	90	102	122	157	176

Caractéristiques techniques RBS 2-piece stainless steel ball valve, ASTM A351 CF8M

Data sheet

Reference: 70600CCD0BFF008
Type de vanne: RBS (Robinet à tournant sphérique)
Passage: Intégral
Corps: Inox ASTM A351 CF8M
Obturateur: Sphère inox ASTM A351 CF8M
Axe: Inox ASTM A182 F316 Inéjectable
Presse-étoupe: PTFE
Joint: PTFE
Commande: Couleur rouge En fonction du modèle choisi Réversible
Entraxe: En fonction du modèle choisi
Type de raccordement: Á visser BSP (pas du gaz)
Raccordement: FF (femelle - femelle)
Diamètre: En fonction du modèle choisi
Débit: En fonction du modèle choisi
Pression de service: En fonction du modèle choisi
Température minimum: -20°C
Température maximum: 180°C
Fluide admissible: Fluides courants compatibles
Normes et certifications: CE ISO 9001 WCS TUV PED 97/23/CE Tests d’étanchéité ISO 5208, classe A
Normalisation: Directive 97/23/CE : CE N° 0035
Équipements: Cadenassable
Possibilité de certificat 3.1: Oui
Unité de vente: Pièce
Garantie fabricant: 1 an

Download documentation

FT 706

Fiche technique 706 robinet à tournant sphérique 2 pièces inox femelle femelle BSP DIN 3202 M3

Download (1.96MB)

Accessoires et équipements (vendus séparément)

Quick view

CCPU 3.1 Material Certificate

€19.50

Quick view

Red butterfly valve handle for RBS valves

From €5.18

Caractéristiques liées à la version du produit RBS 2-piece stainless steel ball valve, ASTM A351 CF8M

Voici la liste des références et poids correspondants aux options séléctionnées.

70600CCD0BFF008 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1/4" (8/13) - Red flat handle

Diameter (in inches)	1/4" (8/13)
Handle type	Red flat handle
Packed weight	0,20475kg

14.07 € tax excl.

Diameter (in inches)	3/8" (12/17)
Handle type	Red butterfly lever
Packed weight	0,2394kg

Diameter (in inches)	1/2" (15/21)
Handle type	Red flat handle
Packed weight	0,2982kg

Diameter (in inches)	3/4" (20/27)
Handle type	Red flat handle
Packed weight	0,404kg

Diameter (in inches)	1" (26/34)
Handle type	Red flat handle
Packed weight	0,6405kg

Diameter (in inches)	1"1/4 (33/42)
Handle type	Red flat handle
Packed weight	1,0458kg

Diameter (in inches)	1"1/2 (40/49)
Handle type	Red flat handle
Packed weight	1,6695kg

Diameter (in inches)	2" (50/60)
Handle type	Red flat handle
Packed weight	2,6901kg

Diameter (in inches)	2"1/2 (66/76)
Handle type	Red flat handle
Packed weight	5,5965kg

Diameter (in inches)	3" (80/90)
Handle type	Red flat handle
Packed weight	8,12385kg

Diameter (in inches)	4" (102/114)
Handle type	Red flat handle
Packed weight	13,65kg

Référence - Désignation	Diameter (in inches)	Handle type	Packed weight	Prix
70600CCD0BFF008 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1/4" (8/13) - Red flat handle	1/4" (8/13)	Red flat handle	0,20475kg	14.07 € tax excl.
70610CCD0BFF008 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1/4" (8/13) - Red butterfly lever	1/4" (8/13)	Red butterfly lever	0,20475kg	14.07 € tax excl.
70610CCD0BFF010 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 3/8" (12/17) - Red butterfly lever	3/8" (12/17)	Red butterfly lever	0,2394kg	14.07 € tax excl.
70600CCD0BFF010 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 3/8" (12/17) - Red flat handle	3/8" (12/17)	Red flat handle	0,2394kg	14.07 € tax excl.
70600CCD0BFF015 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1/2" (15/21) - Red flat handle	1/2" (15/21)	Red flat handle	0,2982kg	14.92 € tax excl.
70610CCD0BFF015 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1/2" (15/21) - Red butterfly lever	1/2" (15/21)	Red butterfly lever	0,2982kg	14.92 € tax excl.
70600CCD0BFF020 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 3/4" (20/27) - Red flat handle	3/4" (20/27)	Red flat handle	0,404kg	20.61 € tax excl.
70610CCD0BFF020 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 3/4" (20/27) - Red butterfly lever	3/4" (20/27)	Red butterfly lever	0,3885kg	20.61 € tax excl.
70600CCD0BFF025 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1" (26/34) - Red flat handle	1" (26/34)	Red flat handle	0,6405kg	27.43 € tax excl.
70610CCD0BFF025 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1" (26/34) - Red butterfly lever	1" (26/34)	Red butterfly lever	0,6405kg	27.43 € tax excl.
70600CCD0BFF032 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1"1/4 (33/42) - Red flat handle	1"1/4 (33/42)	Red flat handle	1,0458kg	42.67 € tax excl.
70600CCD0BFF040 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 1"1/2 (40/49) - Red flat handle	1"1/2 (40/49)	Red flat handle	1,6695kg	64.03 € tax excl.
70600CCD0BFF050 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 2" (50/60) - Red flat handle	2" (50/60)	Red flat handle	2,6901kg	101.27 € tax excl.
70600CCD0BFF065 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 2"1/2 (66/76) - Red flat handle	2"1/2 (66/76)	Red flat handle	5,5965kg	221.23 € tax excl.
70600CCD0BFF080 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 3" (80/90) - Red flat handle	3" (80/90)	Red flat handle	8,12385kg	315.74 € tax excl.
70600CCD0BFF100 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M - 4" (102/114) - Red flat handle	4" (102/114)	Red flat handle	13,65kg	782.6 € tax excl.
