RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) 1/4" (8/13)

Vannes à sphère acier inox

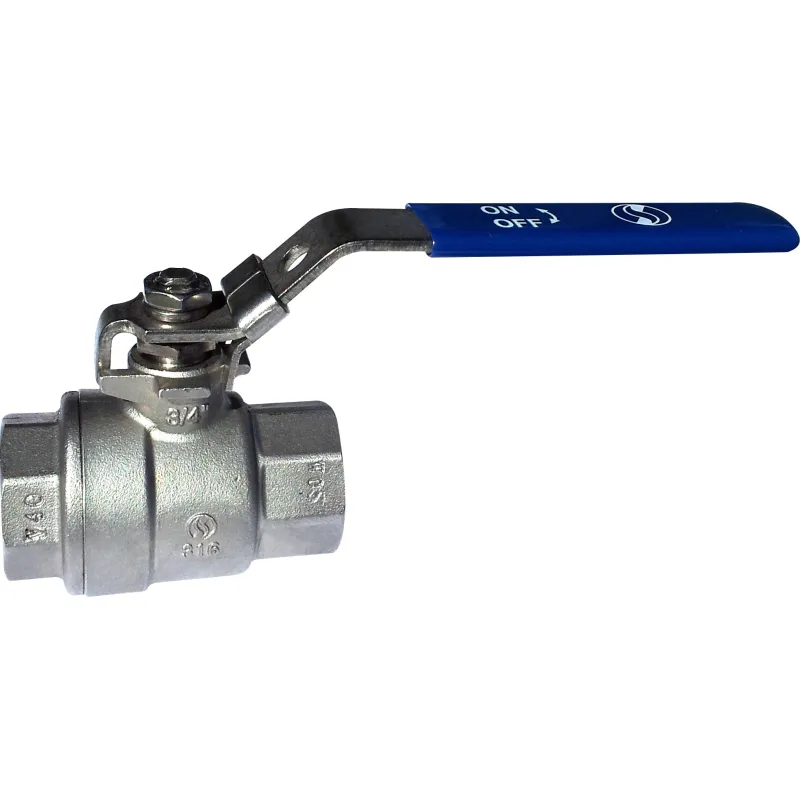

Robinet à tournant sphérique RBS 2 pièces inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
search
  • Robinet à tournant sphérique RBS 2 pièces inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
  • Robinet à tournant sphérique RBS 2 pièces acier inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
  • RBS NOMENCLATURE 715
  • RBS DIMENSIONS ( en mm ) 715
  • RBS COURBE PRESSION - TEMPERATURE ( HORS VAPEUR ) 715

Photos non contractuelles

RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, padlockable, BSP threaded (ISO 228-1), PN63, female-female

2-piece PN63 steel ball valve

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -20°C to +180°C Maximum permissible
pressure Ps: 63 bar up to DN3/4“, 50 bar from 1" to 1-1/4", 40 bar from 1-1/2" to 2", 25 bar from 2-1/2" to 3", 16 bar at 4" (see curve)

CCPU 3.1 material certificate available

Female/female BSP threaded stainless steel with blue handle from DN 1/4" to DN 4"

Plus de détails
Normes et certifications : CENormes et certifications : Certification IQNETNormes et certifications : TUV PED 97/23/CEType de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€17.90 Tax included

14.92 € tax excl.

Unité de vente : Pièce
71500CCD0BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1)

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1)

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • PTFE gland
  • Lockable handle
  • Solid ball
  • 2-piece model

Construction:

  • Stainless steel ball, ASTM A351 CF8M.
  • PTFE gland.
  • Non-ejectable shaft: ASTM A182 F316 stainless steel.
  • PTFE seat.
  • Padlockable handle.
  • Sizes: DN 1/4" to 4"
  • Connection: BSP threaded (ISO 228-1)
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category II Module D1
  • Leak testing in accordance with EN 12266-1, Class A
  • Cylindrical BSP threaded connections in accordance with ISO 228-1

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2 1/2" 3" 4"
Passage diameter 11.6 11.6 15 20 25 32 38 50 65 76 94
PS 63 63 63 63 50 50 40 40 25 25 16
Track width 46.8 48.5 58 65.7 77 90 98 121 145 166 214

Caractéristiques techniques RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1)

Data sheet

Reference
71500CCD0BFF008
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
Sphère inox ASTM A351 CF8M
Siège
PTFE chargé 3% verre
Axe
Inéjectable
Presse-étoupe
PTFE
Commande
Couleur bleu En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
180°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
CE Certification IQNET TUV PED 97/23/CE Tests d’étanchéité EN 12266-1, Classe A
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 715

Fiche technique 715 Robinet à tournant sphérique RBS 2 pièces acier inox ASTM A351 CF8M taraudé BSP (ISO 228-1)

Download (801.37KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1)

Voici la liste des références et poids correspondants aux options séléctionnées.
71500CCD0BFF008 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,21kg
14.92 € tax excl.
Consulter
71500CCD0BFF010 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,2289kg
14.92 € tax excl.
Consulter
71500CCD0BFF015 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,273kg
15.76 € tax excl.
Consulter
71500CCD0BFF020 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,3885kg
21.81 € tax excl.
Consulter
71500CCD0BFF025 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,651kg
29.02 € tax excl.
Consulter
71500CCD0BFF032 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,008kg
45.18 € tax excl.
Consulter
71500CCD0BFF040 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,5015kg
67.8 € tax excl.
Consulter
71500CCD0BFF050 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,604kg
106.63 € tax excl.
Consulter
71500CCD0BFF065 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 5,145kg
233.12 € tax excl.
Consulter
71500CCD0BFF080 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 7,5075kg
332.9 € tax excl.
Consulter
71500CCD0BFF100 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3"1/2 (90/102)
Diameter (in inches) 3"1/2 (90/102)
Packed weight 17,325kg
828.56 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
71500CCD0BFF008 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/4" (8/13) 1/4" (8/13) 0,21kg 14.92 € tax excl.
71500CCD0BFF010 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/8" (12/17) 3/8" (12/17) 0,2289kg 14.92 € tax excl.
71500CCD0BFF015 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/2" (15/21) 1/2" (15/21) 0,273kg 15.76 € tax excl.
71500CCD0BFF020 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/4" (20/27) 3/4" (20/27) 0,3885kg 21.81 € tax excl.
71500CCD0BFF025 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1" (26/34) 1" (26/34) 0,651kg 29.02 € tax excl.
71500CCD0BFF032 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/4 (33/42) 1"1/4 (33/42) 1,008kg 45.18 € tax excl.
71500CCD0BFF040 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/2 (40/49) 1"1/2 (40/49) 1,5015kg 67.8 € tax excl.
71500CCD0BFF050 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2" (50/60) 2" (50/60) 2,604kg 106.63 € tax excl.
71500CCD0BFF065 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2"1/2 (66/76) 2"1/2 (66/76) 5,145kg 233.12 € tax excl.
71500CCD0BFF080 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3" (80/90) 3" (80/90) 7,5075kg 332.9 € tax excl.
71500CCD0BFF100 - RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3"1/2 (90/102) 3"1/2 (90/102) 17,325kg 828.56 € tax excl.
