INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) 1/4" (8/13)

Vannes à sphère acier inox

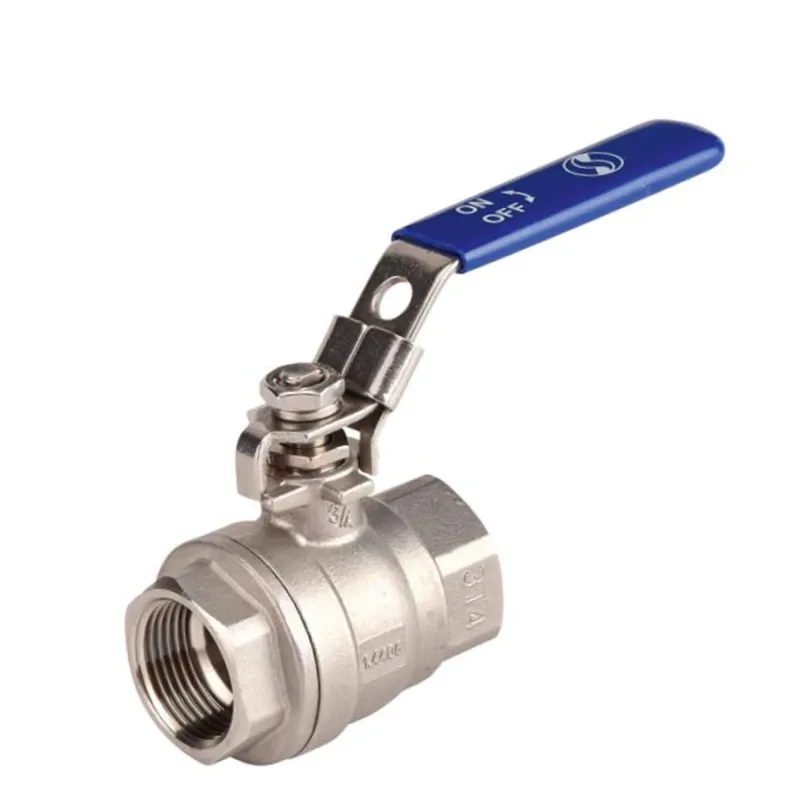

Robinet à tournant sphérique INITIALE RBS 2 pièces acier inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
search
  • Robinet à tournant sphérique INITIALE RBS 2 pièces acier inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
  • Robinet à tournant sphérique INITIALE RBS 2 pièces acier inox ASTM A351 CF8M taraudé BSP (ISO 228-1)
  • RBS NOMENCLATURE 7151
  • RBS DIMENSIONS ( en mm ) 7151
  • RBS COURBE PRESSION-TEMPERATURE ( HORS VAPEUR ) 7151

Photos non contractuelles

INITIALE RBS 2-piece stainless steel ball valve, ASTM A351 CF8M, BSP threaded (ISO 228-1)

2-piece PN63 carbon steel ball valve

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -20°C to +180°C Maximum permissible
pressure Ps: 63 bar up to DN3/4“, 50 bar from 1" to 1-1/4", 40 bar from 1-1/2" to 2", 25 bar from 2-1/2" to 3", 16 bar at 4" (see curve)

CCPU 3.1 material certificate available

Female/female BSP threaded stainless steel valve with blue handle, Initiale series, from DN 1/4" to DN 4"

Plus de détails
Normes et certifications : CENormes et certifications : TUV PED 97/23/CENormes et certifications : HEAD certificationType de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€10.92 Tax included

9.1 € tax excl.

Unité de vente : Pièce
71510CCD0BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1)

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1)

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • PTFE gland
  • 15% glass-filled PTFE seat
  • Lockable handle
  • Solid ball
  • 2-piece model

Construction:

  • Stainless steel ball, ASTM A351 CF8M.
  • PTFE gland.
  • Non-ejectable shaft: ASTM A182 F316 stainless steel.
  • PTFE seat.
  • Padlockable handle.
  • Sizes: DN 1/4" to 4"
  • Connection: BSP threaded (ISO 228-1)
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk Category III Module H
  • Leak testing in accordance with ISO 5208, Class A
  • Cylindrical BSP female threaded connection in accordance with ISO 228-1

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2 1/2" 3" 4"
Passage diameter 9.2 12.5 15 20 25 32 38 50 65 80 100
PS 63 63 63 63 50 50 40 40 25 25 16
Track width 36 42 48 58 68.5 80 90.5 109 139 157 200

Caractéristiques techniques INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1)

Data sheet

Reference
71510CCD0BFF008
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Acier A216WCB
Obturateur
Sphère inox ASTM A351 CF8M
Axe
Inéjectable
Presse-étoupe
PTFE
Commande
Couleur bleu En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
180°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
CE HEAD certification TUV PED 97/23/CE Tests d’étanchéité EN 12266-1, Classe A
Normalisation
DIRECTIVE 97/23/CE : CE N° 0036
Équipements
Cadenassable
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 7151

Fiche technique 7151 robinet à tournant sphérique INITIALE RBS 2 pièces acier inox ASTM A351 CF8M

Download (716.28KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1)

Voici la liste des références et poids correspondants aux options séléctionnées.
71510CCD0BFF008 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,11445kg
9.1 € tax excl.
Consulter
71510CCD0BFF010 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,14595kg
9.1 € tax excl.
Consulter
71510CCD0BFF015 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,22575kg
9.62 € tax excl.
Consulter
71510CCD0BFF020 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,34125kg
13.26 € tax excl.
Consulter
71510CCD0BFF025 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,5565kg
17.65 € tax excl.
Consulter
71510CCD0BFF032 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,85575kg
26.26 € tax excl.
Consulter
71510CCD0BFF040 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,3335kg
39.39 € tax excl.
Consulter
71510CCD0BFF050 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,13675kg
62.24 € tax excl.
Consulter
71510CCD0BFF065 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2"1/2 (66/76)
Diameter (in inches) 2"1/2 (66/76)
Packed weight 4,99275kg
135.88 € tax excl.
Consulter
71510CCD0BFF080 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3" (80/90)
Diameter (in inches) 3" (80/90)
Packed weight 7,056kg
194.09 € tax excl.
Consulter
71510CCD0BFF100 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 4" (102/114)
Diameter (in inches) 4" (102/114)
Packed weight 10,815kg
480.55 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
71510CCD0BFF008 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/4" (8/13) 1/4" (8/13) 0,11445kg 9.1 € tax excl.
71510CCD0BFF010 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/8" (12/17) 3/8" (12/17) 0,14595kg 9.1 € tax excl.
71510CCD0BFF015 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1/2" (15/21) 1/2" (15/21) 0,22575kg 9.62 € tax excl.
71510CCD0BFF020 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3/4" (20/27) 3/4" (20/27) 0,34125kg 13.26 € tax excl.
71510CCD0BFF025 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1" (26/34) 1" (26/34) 0,5565kg 17.65 € tax excl.
71510CCD0BFF032 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/4 (33/42) 1"1/4 (33/42) 0,85575kg 26.26 € tax excl.
71510CCD0BFF040 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 1"1/2 (40/49) 1"1/2 (40/49) 1,3335kg 39.39 € tax excl.
71510CCD0BFF050 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2" (50/60) 2" (50/60) 2,13675kg 62.24 € tax excl.
71510CCD0BFF065 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 2"1/2 (66/76) 2"1/2 (66/76) 4,99275kg 135.88 € tax excl.
71510CCD0BFF080 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 3" (80/90) 3" (80/90) 7,056kg 194.09 € tax excl.
71510CCD0BFF100 - INITIALE RBS 2-piece ball valve, stainless steel ASTM A351 CF8M, BSP threaded (ISO 228-1) - 4" (102/114) 4" (102/114) 10,815kg 480.55 € tax excl.
