RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M 1/4" (8/13)

Vannes à sphère acier inox

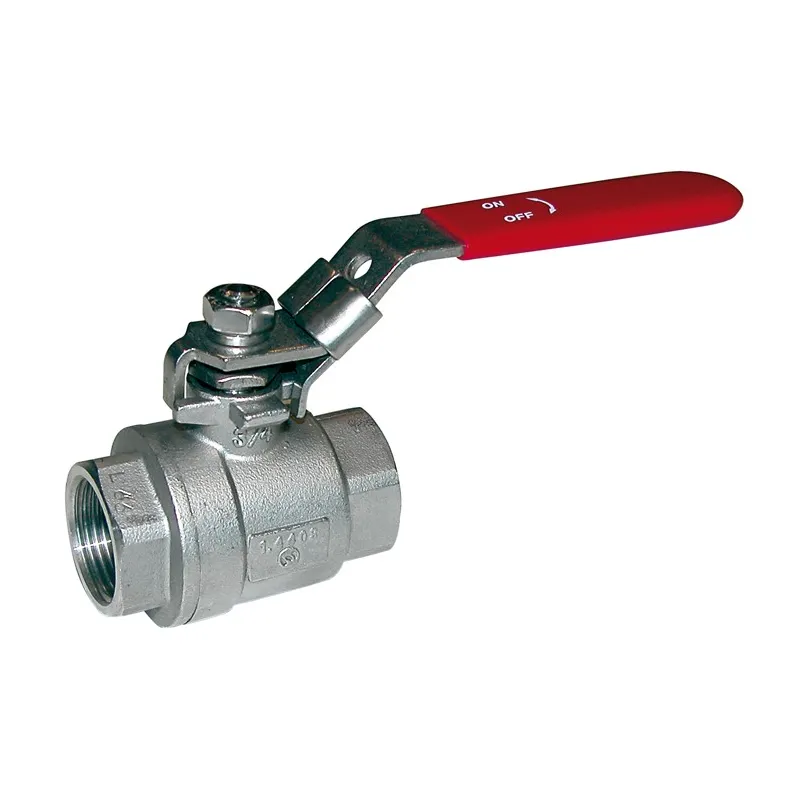

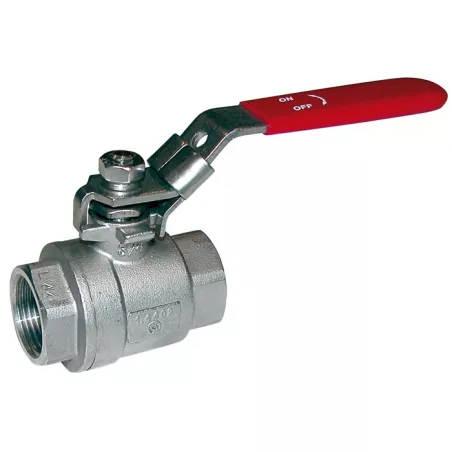

Robinet à tournant sphérique RBS 2 pièces taraudé NPT série 704
search
  • Robinet à tournant sphérique RBS 2 pièces taraudé NPT série 704
  • Robinet à tournant sphérique RBS 2 pièces taraudé NPT inox ASTM A351 CF8M
  • Robinet à tournant sphérique RBS NOMENCLATURE 704 706
  • Robinet à tournant sphérique RBS DIMENSIONS ( en mm ) 704
  • Robinet à tournant sphérique RBS 2 COURBE PRESSION - TEMPERATURE ( HORS VAPEUR ) 704

Photos non contractuelles

RBS 2-piece ball valve, NPT threaded, stainless steel ASTM A351 CF8M, female-female

2-piece stainless steel ball valve PN63 ~ 2-piece stainless steel ball valve PN63

Applications:

Chemical and pharmaceutical industries, petrochemical industries, hydraulic systems, compressed air Minimum and maximum
permissible temperature Ts: -20°C to +180°C Maximum permissible
pressure Ps: 63 bar up to DN3/4“, 50 bar from 1" to 1-1/4", 40 bar from 1-1/2" to 2", 25 bar from 2-1/2" to 3", 16 bar at 4" (see curve)

CCPU 3.1 material certificate available

Stainless steel valve with NPT threads and red handle, from DN 1/4" to DN 2" with red handle

Plus de détails
Normes et certifications : CENormes et certifications : ISO 9001 WCSNormes et certifications : TUV PED 97/23/CEType de raccordement : Á visser NPT1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€33.38 Tax included

27.82 € tax excl.

Unité de vente : Pièce
70400CCD0NFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • PTFE gland
  • Lockable handle
  • Solid ball
  • 2-piece model

Construction:

  • Stainless steel ball, ASTM A351 CF8M.
  • PTFE gland.
  • Non-ejectable shaft: ASTM A182 F316 stainless steel.
  • PTFE seat.
  • Padlockable handle.
  • Sizes: 1/4" to 4"
  • Connection: NPT threaded
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III Module H
  • Leak testing in accordance with ISO 5208, Class A
  • NPT female threaded connection in accordance with ANSI B1.20

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Passage diameter 9.2 12.5 15 20 25 32 38 50
PS 63 63 63 63 50 50 40 40
Track width 48.6 52.5 59 65 76 90 102 122

Caractéristiques techniques RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M

Data sheet

Reference
70400CCD0NFF008
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
Sphère inox ASTM A351 CF8M
Axe
Inéjectable
Presse-étoupe
PTFE
Joint
PTFE
Commande
Couleur rouge En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser NPT
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
180°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
CE ISO 9001 WCS TUV PED 97/23/CE Tests d’étanchéité ISO 5208, classe A
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 704

Fiche technique 704 robinet à tournant sphérique inox femelle femelle NPT DIN3202 M3

Download (1.9MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M

Voici la liste des références et poids correspondants aux options séléctionnées.
70400CCD0NFF008 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,20475kg
27.82 € tax excl.
Consulter
70400CCD0NFF010 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,2394kg
27.82 € tax excl.
Consulter
70400CCD0NFF015 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,2982kg
30.23 € tax excl.
Consulter
70400CCD0NFF020 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,3885kg
42.12 € tax excl.
Consulter
70400CCD0NFF025 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,6405kg
56.78 € tax excl.
Consulter
70400CCD0NFF032 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,0458kg
75.08 € tax excl.
Consulter
70400CCD0NFF040 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,6695kg
103.68 € tax excl.
Consulter
70400CCD0NFF050 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,7195kg
151.91 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
70400CCD0NFF008 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1/4" (8/13) 1/4" (8/13) 0,20475kg 27.82 € tax excl.
70400CCD0NFF010 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 3/8" (12/17) 3/8" (12/17) 0,2394kg 27.82 € tax excl.
70400CCD0NFF015 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1/2" (15/21) 1/2" (15/21) 0,2982kg 30.23 € tax excl.
70400CCD0NFF020 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 3/4" (20/27) 3/4" (20/27) 0,3885kg 42.12 € tax excl.
70400CCD0NFF025 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1" (26/34) 1" (26/34) 0,6405kg 56.78 € tax excl.
70400CCD0NFF032 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1"1/4 (33/42) 1"1/4 (33/42) 1,0458kg 75.08 € tax excl.
70400CCD0NFF040 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 1"1/2 (40/49) 1"1/2 (40/49) 1,6695kg 103.68 € tax excl.
70400CCD0NFF050 - RBS 2-piece ball valve, NPT, stainless steel, ASTM A351 CF8M - 2" (50/60) 2" (50/60) 2,7195kg 151.91 € tax excl.
