RBS 2-piece high-temperature solar ball valve 1/4" (8/13)

Vannes à sphère acier inox
Robinet à tournant sphérique RBS 2 pièces solaire 714
search
  • Robinet à tournant sphérique RBS 2 pièces solaire 714
  • Robinet à tournant sphérique RBS 2 pièces solaire haute température
  • Robinet à tournant sphérique RBS 2 pièces solaire NOMENCLATURE 714
  • Robinet à tournant sphérique RBS 2 pièces solaire DIMENSIONS ( en mm ) 714
  • Robinet à tournant sphérique RBS 2 pièces solaire COURBE PRESSION - TEMPERATURE ( HORS VAPEUR )714

Photos non contractuelles

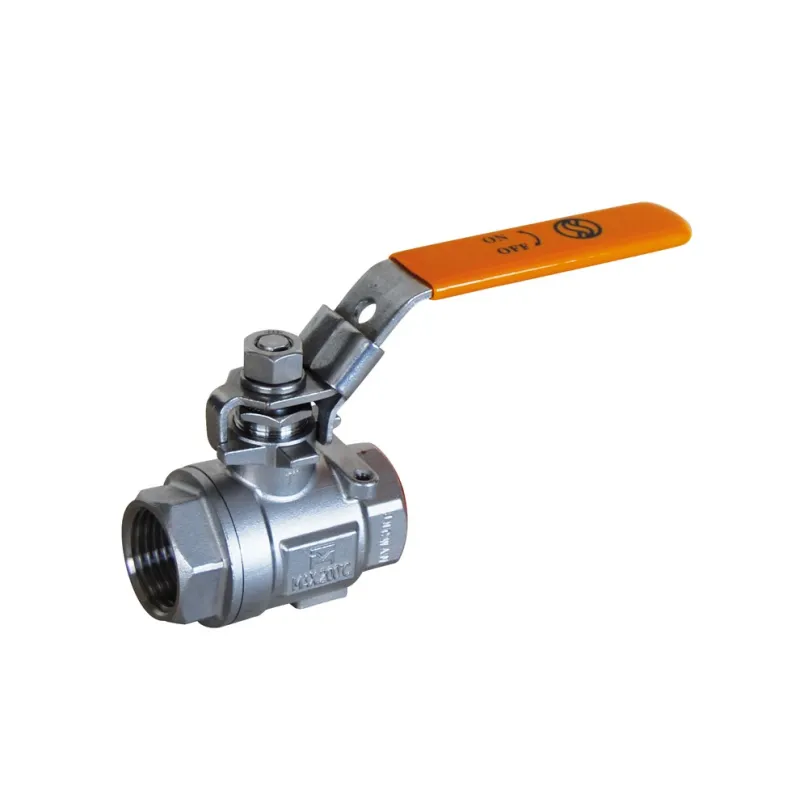

RBS 2-piece ball valve for high-temperature solar applications (Female-Female)

2-piece solar ball valve ~ Solar 2-piece ball valve

Application:

For solar
steam applications, max. 11 bar. Minimum and
maximum permissible temperatures Ts: -20°C to +200°C. Maximum permissible
pressure Ps: 63 bar (see curve)

CCPU 3.1 material certificate available

Stainless steel valve with solar handle, sizes DN 1/4" to DN 2"

Plus de détails
Normes et certifications : CENormes et certifications : ISO 9001 Bureau VERITASNormes et certifications : ATEXNormes et certifications : TUV PED 97/23/CENormes et certifications : Étanchéité TA LUFTType de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€42.90 Tax included

35.75 € tax excl.

Unité de vente : Pièce
71400CCD0BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour RBS 2-piece high-temperature solar ball valve

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information RBS 2-piece high-temperature solar ball valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Solar application
  • Full-width
  • Non-ejectable shaft
  • Graphite-filled PTFE seats
  • Lockable handle
  • Atex
  • Dual antistatic system
  • Sealing in accordance with TA LUFT standard
  • 2-piece model
  • Solid ball

Construction:

  • Body and ball: ASTM A351 CF8M stainless steel.
  • Non-ejectable shaft: 316 stainless steel.
  • Dual anti-static system.
  • Graphite-filled PTFE seats.
  • FKM O-ring.
  • Body seal and gland: Graphite-filled PTFE.
  • Lockable handle: ASTM A351 CF8M stainless steel.
  • Dimensions: DN 1/4" to 2"
  • Connection: Female / female cylindrical BSP
  • Material: Stainless steel

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: CE No. 0035 Risk
    Category III Module H
  • Leak testing in accordance with API 598, Table 6
  • Cylindrical BSP female threaded connection in accordance with ISO 7/1 Rp
  • ATEX Group II, Category 2, G/2D, Zone 1 & 21, Zone 2 & 22 (optional marking)
  • Sealing in accordance with TA LUFT/5.2.6.4 & VDI 2440/3.3.1.3

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Passage diameter 11.6 12.5 15 20 25 32 38 50
PS 63 63 63 63 63 63 63 63
Track gauge 50.8 50.8 58 65.6 78.7 90 105 124

Caractéristiques techniques RBS 2-piece high-temperature solar ball valve

Data sheet

Reference
71400CCD0BFF008
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
Inox ASTM A351 CF8M Sphère inox ASTM A351 CF8M
Siège
PTFE chargé graphite
Axe
Inéjectable
Presse-étoupe
PTFE chargé graphite
Joint
FKM
Commande
Couleur jaune En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-20°C
Température maximum
200°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
ATEX CE ISO 9001 Bureau VERITAS TUV PED 97/23/CE Test d'étanchéité API 598 Étanchéité TA LUFT
Normalisation
Directive 97/23/CE : CE N° 0035
Équipements
Cadenassable
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT 714

Fiche technique Robinet à tournant sphérique RBS 2 pièces solaire haute température 714

Download (813.95KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit RBS 2-piece high-temperature solar ball valve

Voici la liste des références et poids correspondants aux options séléctionnées.
71400CCD0BFF008 - RBS 2-piece high-temperature solar ball valve - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,21kg
35.75 € tax excl.
Consulter
71400CCD0BFF010 - RBS 2-piece high-temperature solar ball valve - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,21kg
36.27 € tax excl.
Consulter
71400CCD0BFF015 - RBS 2-piece high-temperature solar ball valve - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,3465kg
38.45 € tax excl.
Consulter
71400CCD0BFF020 - RBS 2-piece high-temperature solar ball valve - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,4935kg
51.48 € tax excl.
Consulter
71400CCD0BFF025 - RBS 2-piece high-temperature solar ball valve - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,7875kg
76.86 € tax excl.
Consulter
71400CCD0BFF032 - RBS 2-piece high-temperature solar ball valve - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 1,155kg
131.98 € tax excl.
Consulter
71400CCD0BFF040 - RBS 2-piece high-temperature solar ball valve - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,89kg
198.02 € tax excl.
Consulter
71400CCD0BFF050 - RBS 2-piece high-temperature solar ball valve - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 2,835kg
290.06 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
71400CCD0BFF008 - RBS 2-piece high-temperature solar ball valve - 1/4" (8/13) 1/4" (8/13) 0,21kg 35.75 € tax excl.
71400CCD0BFF010 - RBS 2-piece high-temperature solar ball valve - 3/8" (12/17) 3/8" (12/17) 0,21kg 36.27 € tax excl.
71400CCD0BFF015 - RBS 2-piece high-temperature solar ball valve - 1/2" (15/21) 1/2" (15/21) 0,3465kg 38.45 € tax excl.
71400CCD0BFF020 - RBS 2-piece high-temperature solar ball valve - 3/4" (20/27) 3/4" (20/27) 0,4935kg 51.48 € tax excl.
71400CCD0BFF025 - RBS 2-piece high-temperature solar ball valve - 1" (26/34) 1" (26/34) 0,7875kg 76.86 € tax excl.
71400CCD0BFF032 - RBS 2-piece high-temperature solar ball valve - 1"1/4 (33/42) 1"1/4 (33/42) 1,155kg 131.98 € tax excl.
71400CCD0BFF040 - RBS 2-piece high-temperature solar ball valve - 1"1/2 (40/49) 1"1/2 (40/49) 1,89kg 198.02 € tax excl.
71400CCD0BFF050 - RBS 2-piece high-temperature solar ball valve - 2" (50/60) 2" (50/60) 2,835kg 290.06 € tax excl.
