2-piece dead-man's ball valve ASTM A351 CF8M stainless steel 1/4" (8/13)

Vannes à sphère acier inox

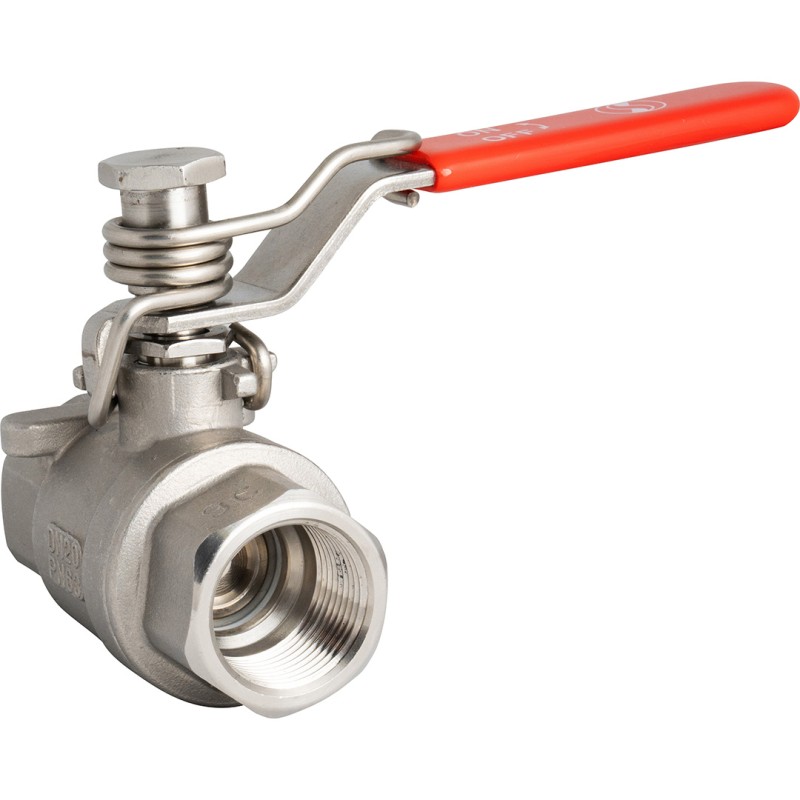

Robinet à tournant sphérique poignée homme mort 2 pièces inox
search
  • Robinet à tournant sphérique poignée homme mort 2 pièces inox
  • Construction vanne poignée homme mort
  • Dimensions vanne poignée homme mort
  • Courbe pression température vanne poignée homme mort

Photos non contractuelles

RBS 2 pieces stainless steel ASTM A351 CF8M Female-Female

Robinet à tournant sphérique 2 pièces PN63 inox ~ 2 pieces stainless steel ball valve PN63

Application:

Dead-man system on 2-piece DIN M3 full bore stainless steel ball valve for fluid shut-off in chemical and pharmaceutical networks, petrochemical industries, hydraulic installations and compressed air.


Gap standardized to EN 16722 Series M3 (DIN long M3). Sealing is ensured by a PTFE gland and 15% glass-filled PTFE seats.


Compatible with explosive atmospheres, ATEX Zone 1&21 and Zone 2&22, thanks to a double antistatic system.

CCPU 3.1 material certificate available

BSP threaded stainless steel valve with red handle from DN 1/4" to DN 1" with red handle.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€43.06 Tax included

35.88 € tax excl.

Unité de vente : Pièce
70620CCD0BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel

Technical features :

  • Deadman system (spring-return in closed position)
  • ATEX
  • Full passage
  • Injectable shaft
  • PTFE cable gland
  • Double antistatic system
  • Full ball
  • 2-piece model

Construction :

  • ASTM A351 CF8M stainless steel body
  • 15% glass-filled PTFE seat
  • Sphere AISI 316 stainless steel
  • Body gasket PTFE
  • Stainless steel nipple ASTM A351 CF8M
  • Injector pin AISI 316 stainless steel
  • Sliding washer PTFE
  • Packing gland PTFE
  • Gland AISI 304 stainless steel
  • Washer AISI 304 stainless steel
  • Return spring AISI 301 stainless steel
  • Handle nut AISI 304
  • Handle stainless steel AISI 304
  • Plastic handle sheath
  • Dimensions : DN 1/4" to 1
  • Connection: BSP threaded

Standardization :

  • Manufacturer certified ISO 9001 : 2015 and ISO 14001 :2015
  • DIRECTIVE 2014/68/EU: Compatible for Group 1 Liquids and Gases o DN1/4"-1": Article 4, §3 (SEP), no CE marking
  • 3.1 certificate on request
  • Tightness tested to API 598 standard
  • Cylindrical BSP female thread connection to ISO 228-1
  • Spacing to EN 16722 Series M3 ( DIN 3202 M3 )
  • Compatible with ATEX zone Group II Category 2 G/2D T2 Zone 1 & 21 Zone 2 &22 ( optional marking )

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1"
Passage Ø 10 12.5 15 20 25
PS 63 63 63 63 50
Spacing 50 60 75 80 90

Caractéristiques techniques 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel

Data sheet

Reference
70620CCD0BFF008
Type de vanne
RBS (Robinet à tournant sphérique)
Passage
Intégral
Corps
Inox ASTM A351 CF8M
Obturateur
Inox AISI 316
Axe
Inox AISI 316 Inéjectable
Presse-étoupe
PTFE
Joint
PTFE
Commande
Couleur rouge Poignée homme mort
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Débit
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi
Température minimum
-25°C
Température maximum
180°C
Fluide admissible
Fluides courants compatibles
Normes et certifications
Ecartement suivant la norme EN 16722 Série M3 ( DIN 3202 M3 ) Fabricant certifié ISO 9001 : 2015 et ISO 14001 :2015 Test d'étanchéité API 598
Normalisation
DIRECTIVE 2014/68/UE : Compatible pour Liquides et Gaz du Groupe 1 o DN1/4"-1" : Article 4, §3 (SEP), pas de marquage CE
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel

Voici la liste des références et poids correspondants aux options séléctionnées.
70620CCD0BFF008 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,24kg
35.88 € tax excl.
Consulter
70620CCD0BFF010 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,24kg
36.89 € tax excl.
Consulter
70620CCD0BFF015 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,36kg
39.94 € tax excl.
Consulter
70620CCD0BFF020 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,53kg
52.03 € tax excl.
Consulter
70620CCD0BFF025 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,8kg
74.78 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
70620CCD0BFF008 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1/4" (8/13) 1/4" (8/13) 0,24kg 35.88 € tax excl.
70620CCD0BFF010 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 3/8" (12/17) 3/8" (12/17) 0,24kg 36.89 € tax excl.
70620CCD0BFF015 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1/2" (15/21) 1/2" (15/21) 0,36kg 39.94 € tax excl.
70620CCD0BFF020 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 3/4" (20/27) 3/4" (20/27) 0,53kg 52.03 € tax excl.
70620CCD0BFF025 - 2-piece dead-man's ball valve ASTM A351 CF8M stainless steel - 1" (26/34) 1" (26/34) 0,8kg 74.78 € tax excl.
