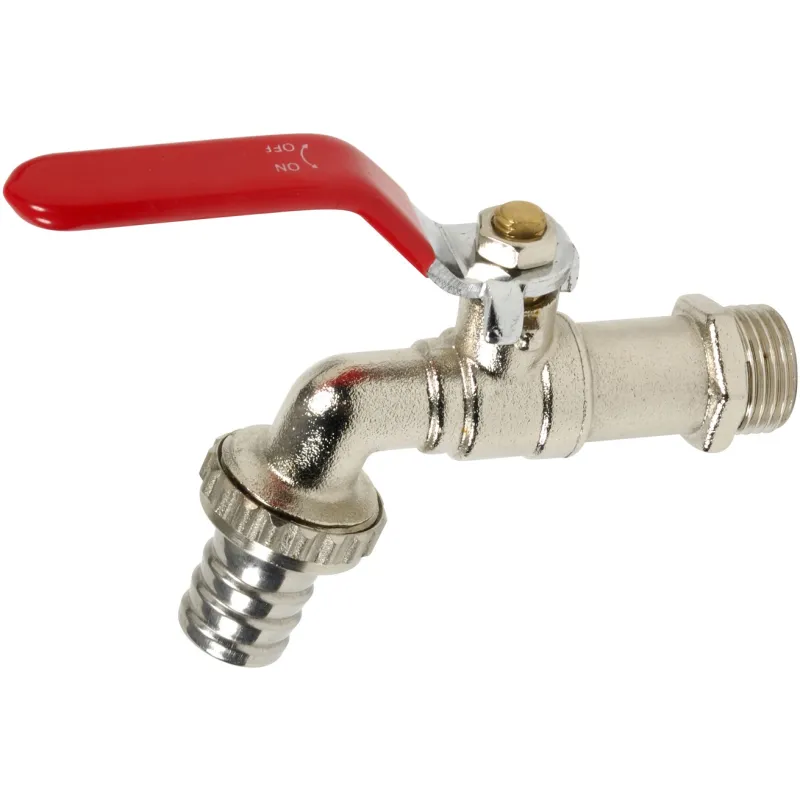

Nickel-plated brass tap with a flat steel handle or a red butterfly handle, ACS-certified

Ball valve for water supply ~
Bib cock ball valve

Use:

  • Water distribution systems
  • Minimum permissible temperature Ts: +0°C
  • Maximum permissible temperature Ts: +60°C
  • Maximum allowable pressure PN: 16 bar

Male BSP with fluted nipple and flat red steel handle from 1/2" to 1"
Male BSP with fluted nipple and red butterfly handle from 1/2" to 3/4"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
red flat handle 1/2" - 3/4" - 19
Are you an individual?
Are you a professional?

Log in to find out your discount.

€8.93 Tax included

7.44 € tax excl.

Unité de vente : Pièce
69600N000152019
Ø Nominal - Raccord au nez - tétine: 1/2" - 3/4" - 19
Handle type: Red flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Nickel-plated brass sampling valve, PN16

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Nose connection
  • Built-in spray diffuser
  • Solid ball
  • PTFE gland
  • Red flat steel handle or butterfly lever

Construction:

  • Body: CW617N-grade nickel-plated brass
  • Ball: CW617N-grade brass
  • Ball seals: PTFE
  • PTFE gland
  • Built-in spray break
  • Size: DN 1/2" to 1"
  • Connections: Male, grooved
  • Material: Brass

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 09 ACC LY 198
  • Cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/2" 3/4" 3/4"
Nose fitting 3/4" 3/4" 1"
Nipple 19 19 20.5
PS 16 16 16

Caractéristiques techniques Nickel-plated brass sampling valve, PN16

Data sheet

Reference
69600N000152019
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton titré CW617N nickelé
Obturateur
Joint de sphère PTFE Sphère laiton titré CW617N
Siège
PTFE
Presse-étoupe
PTFE
Commande
Couleur rouge En fonction du modèle choisi Réversible
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
0°C
Température maximum
60°C
Fluide admissible
Arrosage et irrigation Eau Eau sanitaire et potable
Normes et certifications
Certification ACS ISO 9001 : 2008 (BSI)
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781103500

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT 696

Fiche technique Vanne de puisage laiton nickelés certifié ACS 696

Download (950.12KB)

Caractéristiques liées à la version du produit Nickel-plated brass sampling valve, PN16

Voici la liste des références et poids correspondants aux options séléctionnées.
69600N000152019 - Nickel-plated brass sampling valve, PN16 - 1/2" - 3/4" - 19 - Red flat handle
Ø Nominal - Raccord au nez - tétine 1/2" - 3/4" - 19
Handle type Red flat handle
Packed weight 0,18165kg
7.44 € tax excl.
Consulter
69600NP00152019 - Nickel-plated brass sampling valve, PN16 - 1/2" - 3/4" - 19 - Red butterfly lever
Ø Nominal - Raccord au nez - tétine 1/2" - 3/4" - 19
Handle type Red butterfly lever
Packed weight 0,168kg
7.44 € tax excl.
Consulter
69600NP00202019 - Nickel-plated brass sampling valve, PN16 - 3/4" - 3/4" - 19 - Red butterfly lever
Ø Nominal - Raccord au nez - tétine 3/4" - 3/4" - 19
Handle type Red butterfly lever
Packed weight 0,18165kg
9.04 € tax excl.
Consulter
69600N000202019 - Nickel-plated brass sampling valve, PN16 - 3/4" - 3/4" - 19 - Red flat handle
Ø Nominal - Raccord au nez - tétine 3/4" - 3/4" - 19
Handle type Red flat handle
Packed weight 0,21525kg
9.04 € tax excl.
Consulter
69600N000202520 - Nickel-plated brass sampling valve, PN16 - 3/4" - 1" - 20.5 - Red flat handle
Ø Nominal - Raccord au nez - tétine 3/4" - 1" - 20.5
Handle type Red flat handle
Packed weight 0,252kg
12.55 € tax excl.
Consulter
Référence - Désignation Ø Nominal - Raccord au nez - tétine Handle type Packed weight Prix
69600N000152019 - Nickel-plated brass sampling valve, PN16 - 1/2" - 3/4" - 19 - Red flat handle 1/2" - 3/4" - 19 Red flat handle 0,18165kg 7.44 € tax excl.
69600NP00152019 - Nickel-plated brass sampling valve, PN16 - 1/2" - 3/4" - 19 - Red butterfly lever 1/2" - 3/4" - 19 Red butterfly lever 0,168kg 7.44 € tax excl.
69600NP00202019 - Nickel-plated brass sampling valve, PN16 - 3/4" - 3/4" - 19 - Red butterfly lever 3/4" - 3/4" - 19 Red butterfly lever 0,18165kg 9.04 € tax excl.
69600N000202019 - Nickel-plated brass sampling valve, PN16 - 3/4" - 3/4" - 19 - Red flat handle 3/4" - 3/4" - 19 Red flat handle 0,21525kg 9.04 € tax excl.
69600N000202520 - Nickel-plated brass sampling valve, PN16 - 3/4" - 1" - 20.5 - Red flat handle 3/4" - 1" - 20.5 Red flat handle 0,252kg 12.55 € tax excl.
