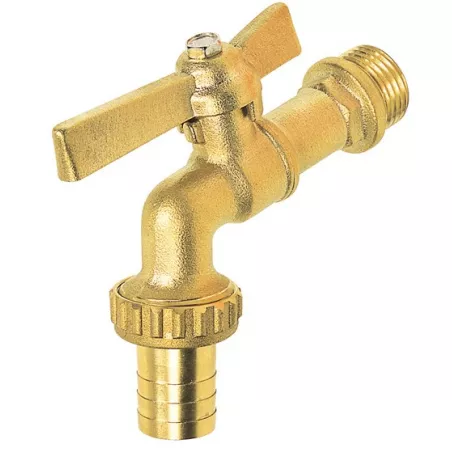

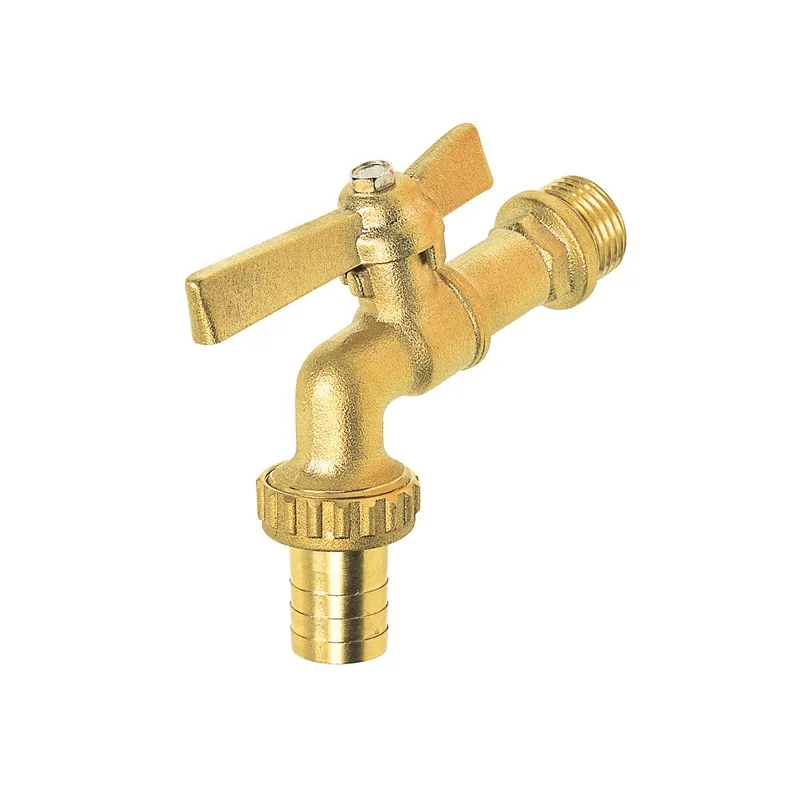

Brushed brass tap valve, PN16, with brass lever, 2/3 or 1/3

Vannes à sphère laiton de puisage
Vanne de puisage laiton brossé PN16 manette laiton 2/3 1/3
search
  • Vanne de puisage laiton brossé PN16 manette laiton 2/3 1/3
  • NOMENCLATURE MODELE AVEC MANETTE LAITON 681

Photos non contractuelles

Brushed brass tap valve with brass handle, 2/3" or 1/3", ACS certified

Ball valve for water supply ~
Bib cock ball valve

Use:

  • Water distribution systems
  • Minimum permissible temperature Ts: +0°C
  • Maximum permissible temperature Ts: +60°C
  • Maximum allowable pressure PN: 16 bar

Brushed brass body, male conical BSP thread with fluted nipple and brass 2/3-1/3 handle, DN 1/2"-3/4"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : CermetNormes et certifications : SincertType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€13.54 Tax included

11.28 € tax excl.

Unité de vente : Pièce
68100L000000015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Brushed brass tap valve, PN16, with brass lever, 2/3 or 1/3

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Nose connection
  • Built-in spray diffuser
  • Solid ball
  • PTFE gland
  • Brass lever handle
  • Standard locking system (9810K0000000000)

Construction:

  • Body: Brushed CW617N-grade brass
  • Ball: CW617N-grade brass, chrome-plated
  • Ball seals: PTFE
  • PTFE gland
  • Built-in spray break
  • Size: DN 1/2"-3/4"
  • Connections: Male, grooved
  • Material: Brass

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 13 ACC LY 152
  • Cylindrical BSP male thread in accordance with ISO 228-1

Caractéristiques techniques Brushed brass tap valve, PN16, with brass lever, 2/3 or 1/3

Data sheet

Reference
68100L000000015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton titré CW617N interne brossé
Obturateur
Joint de sphère PTFE Sphère laiton titré CW617N
Siège
PTFE
Presse-étoupe
PTFE
Commande
Poignée papillon
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
1/2" 3/4"
Pression de service
16B
Température minimum
0°C
Température maximum
60°C
Fluide admissible
Arrosage et irrigation Eau Eau sanitaire et potable
Normes et certifications
Cermet Certification ACS Sincert
Normalisation
Directive 97/23/CE : produits exclus (article 1, § 3.2)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781142738

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT 681

Fiche technique robinet de puisage ACS laiton 4MS brosse avec manette laiton 2/3-1/3

Download (660.67KB)
