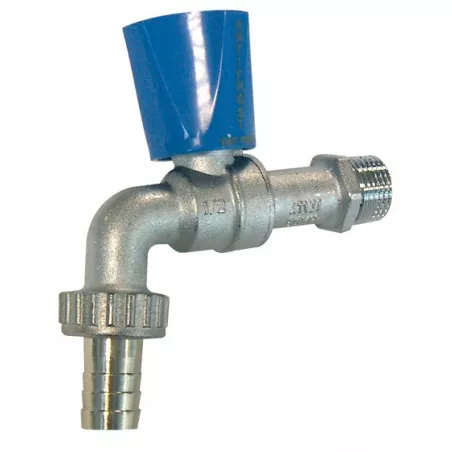

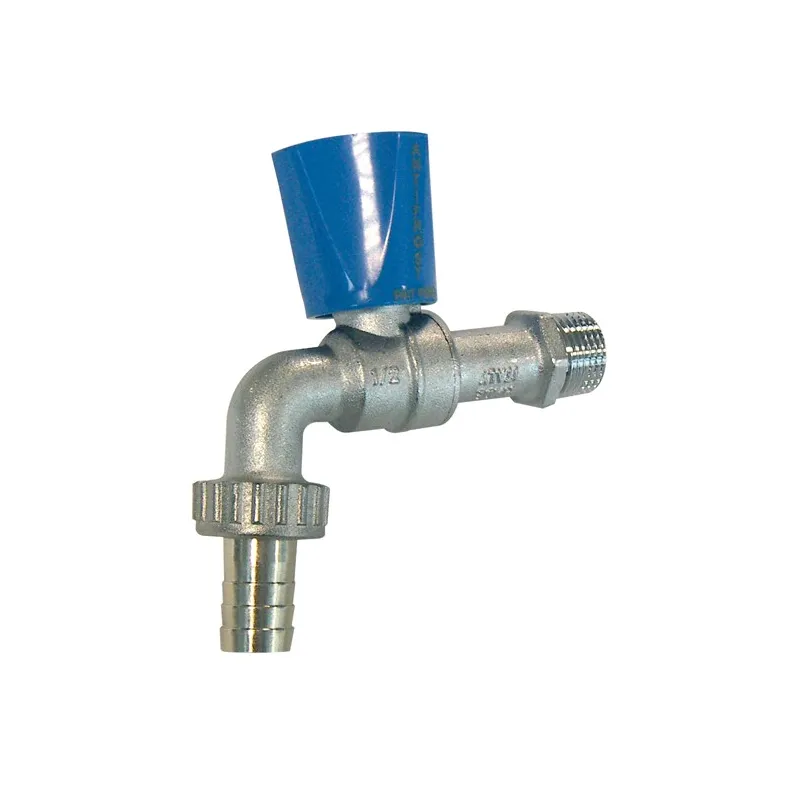

Frost-proof tap

Frost-proof tap ~
No Frost Bib Cock Valve

Application:

  • Water supply and distribution networks
  • Minimum permissible temperature Ts: -10°C
  • Maximum permissible temperature Ts: +90°C
  • Maximum allowable pressure PN: 30 bar

1/2" male inlet – 3/4" male outlet with 16 mm nipple

Plus de détails
Normes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€18.29 Tax included

15.24 € tax excl.

Unité de vente : Pièce
69800N000000015
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Freeze-proof tap

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Anti-freeze system
  • Quarter-turn operation via 3-position lever
  • Sealed with 2 NBR O-rings
  • Blue ABS handle
  • With nose connection and built-in spray guard

Construction:

  • Body and ball made of CW617N brass
  • Ball seals: PTFE
  • Two NBR O-rings
  • Blue ABS 3-position lever
  • Size: DN 1/2" - 3/4"
  • Connections: Male BSP
  • Material: Brass body

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Covers Article 3, § 3
  • Cylindrical male BSP thread in accordance with ISO 228-1

Nominal Ø 1/2"
Nose fitting 3/4"
Nipple 16
PS 30

Caractéristiques techniques Freeze-proof tap

Data sheet

Reference
69800N000000015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton titré CW617N chromé
Obturateur
Joint de sphère PTFE Sphère laiton titré CW617N
Siège
PTFE
Presse-étoupe
PTFE
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
Mâle
Diamètre
1/2" 3/4"
Pression de service
30B
Température minimum
-10°C
Température maximum
90°C
Fluide admissible
Arrosage et irrigation Eau Eau sanitaire et potable
Normes et certifications
ISO 9001 : 2008 (BSI)
Normalisation
Directive 97/23/CE : produits exclus (article 3, § 3)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781141496
