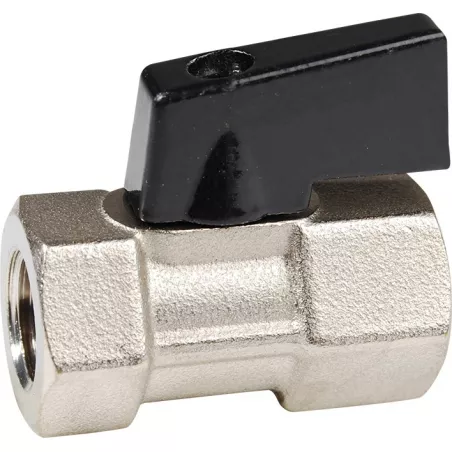

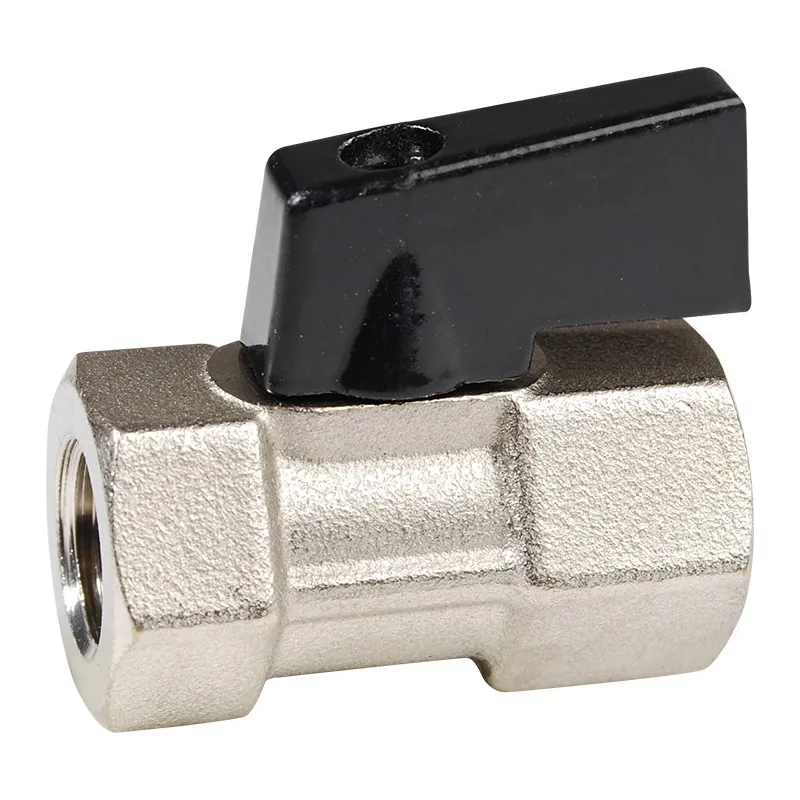

Mini nickel-plated brass ball valve, female-to-female 1/4" (8/13)

Vannes à sphère laiton mini et micro
Mini vanne à sphère laiton nickelé femelle - femelle
search
  • Mini vanne à sphère laiton nickelé femelle - femelle
  • NOMENCLATURE MODELES FEMELLE – FEMELLE ( REF.677-697 )
  • DIMENSIONS MODELES FEMELLE - FEMELLE ( en mm )677 697

Photos non contractuelles

Mini nickel-plated brass ball valve, female-to-female

Brass ball valve

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +90°C Maximum permissible
pressure Ps: 16 bar

Available in:

  • Female / Female from 1/4" to 1/2"
Plus de détails
Normes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)1
1/4" (8/13)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€7.30 Tax included

6.08 € tax excl.

Unité de vente : Pièce
67700N000BFF008
Diameter (in inches): 1/4" (8/13)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Mini nickel-plated brass ball valve, female-to-female

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Non-ejectable shaft
  • Solid ball
  • O-ring seal
  • Black aluminum lever

Construction:

  • Nickel-plated brass body
  • Brass ball
  • PTFE ball seals
  • NBR seal on the shaft
  • Size: 1/4" to 1/2"
  • Connection: Female, Female BSP
  • Material: Nickel-plated brass body

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/4" 3/8" 1/2"
Passage Ø 8 8 10
PS 16 16 16
Track gauge 42 42 44.5

Caractéristiques techniques Mini nickel-plated brass ball valve, female-to-female

Data sheet

Reference
67700N000BFF008
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Réduit
Corps
Laiton nickelé
Obturateur
Bille pleine - Joint de sphère PTFE - Sphère laiton
Siège
PTFE
Axe
Inéjectable - Joint d'axe NBR
Commande
Couleur noire
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
-10°C
Température maximum
90°C
Fluide admissible
Air comprimé - Eau
Normes et certifications
ISO 9001 : 2008 (BSI)
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598780002798

Download documentation

FT 677

Fiche technique mini vanne à sphère laiton 4MS femelle femelle BSP

Download (504.02KB)

Caractéristiques liées à la version du produit Mini nickel-plated brass ball valve, female-to-female

Voici la liste des références et poids correspondants aux options séléctionnées.
67700N000BFF008 - Mini nickel-plated brass ball valve, female-to-female - 1/4" (8/13)
Diameter (in inches) 1/4" (8/13)
Packed weight 0,0903kg
6.08 € tax excl.
Consulter
67700N000BFF010 - Mini nickel-plated brass ball valve, female-to-female - 3/8" (12/17)
Diameter (in inches) 3/8" (12/17)
Packed weight 0,0756kg
6.08 € tax excl.
Consulter
67700N000BFF015 - Mini nickel-plated brass ball valve, female-to-female - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,1155kg
6.08 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
67700N000BFF008 - Mini nickel-plated brass ball valve, female-to-female - 1/4" (8/13) 1/4" (8/13) 0,0903kg 6.08 € tax excl.
67700N000BFF010 - Mini nickel-plated brass ball valve, female-to-female - 3/8" (12/17) 3/8" (12/17) 0,0756kg 6.08 € tax excl.
67700N000BFF015 - Mini nickel-plated brass ball valve, female-to-female - 1/2" (15/21) 1/2" (15/21) 0,1155kg 6.08 € tax excl.
