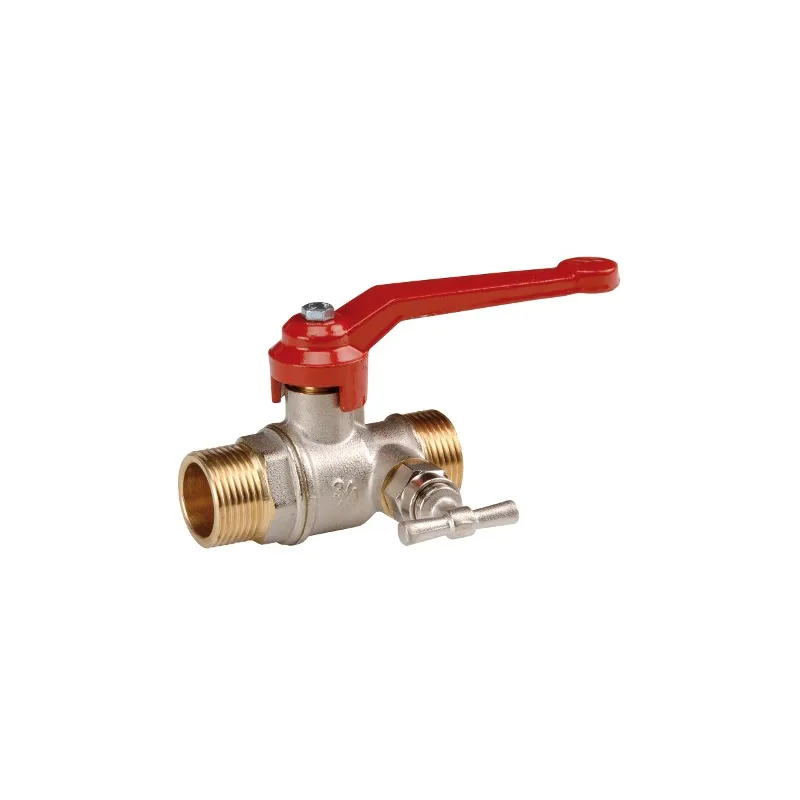

CW617N Titanium-Plated Brass Ball Valve with Male-to-Male Outlet 1/2" (15/21) red flat handle

Vannes à sphère laiton série à Purges
Vanne à sphère laiton titré CW617N à purge mâle - mâle poignée plate
search
  • Vanne à sphère laiton titré CW617N à purge mâle - mâle poignée plate
  • NOMENCLATURE MODELE MALE - MALE A PURGE AVEC POIGNEE ALUMINIUM
  • COURBE PRESSION - TEMPERATURE ( HORS VAPEUR ) 542 543

Photos non contractuelles

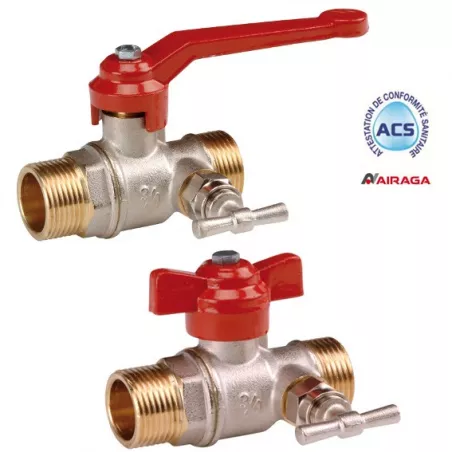

CW617N-grade brass ball valve with male-to-male drain, ACS-certified, reduced bore


Brass ball valve with drain

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressure Ps: 25 bar

Available in:

  • Male/Male with drain and red aluminum butterfly handle from DN 3/8" to 1"
  • Male / Male with drain and red aluminum handle from DN 3/8" to 1"
Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21) red flat handle
Are you an individual?
Are you a professional?

Log in to find out your discount.

€22.03 Tax included

18.36 € tax excl.

Unité de vente : Pièce
54300NAP0BMM015
Diameter (in inches): 1/2" (15/21)
Handle type: Red flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve with Male-to-Male Outlet

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Reduced bore
  • Solid ball
  • PTFE gland
  • Aluminum handle or aluminum butterfly lever
  • 1/8" bleed ports on 3/8" and 1/4" models, and 1/2" to 1" models

Construction:

  • Body: CW617N-alloyed brass, brushed interior and nickel-plated exterior.
  • Ball: Titanium-plated brass (CW617N), chrome-plated.
  • Ball seals: PTFE.
  • Dimensions: DN 3/8" to 1"
  • Connection: Male, Male BSP
  • With bleed
  • Material: Brass

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • A.C.S. Sanitary Compliance Certificate No. 13 ACC LY 137
  • Cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 3/8" 1/2" 3/4" 1"
Inlet/outlet diameter 9 12 15 20
PS 25 25 25 25
Track width 65 66 74 83

Supplied with drain and 1/4" plug, except for the 3/8" model: 1/8".

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve with Male-to-Male Outlet

Data sheet

Reference
54300NAP0BMM015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Bille pleine Joint de sphère PTFE Sphère laiton titré CW617N chromée
Siège
PTFE
Axe
Inéjectable
Presse-étoupe
PTFE
Joint
EPDM Torique
Commande
En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
25B
Température minimum
-10°C
Température maximum
120°C
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Certification ACS ISO 9001 : 2008 (BSI)
Normalisation
Directive 97/23/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8027704008172

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT 542

Fiche technique Vanne à sphère laiton 4MS à portée plate à purge manette M/M ACS

Download (938.37KB)

FT 543

Fiche technique vanne à sphère laiton 4MS à portée plate à purge poignée M/M ACS

Download (857.88KB)
