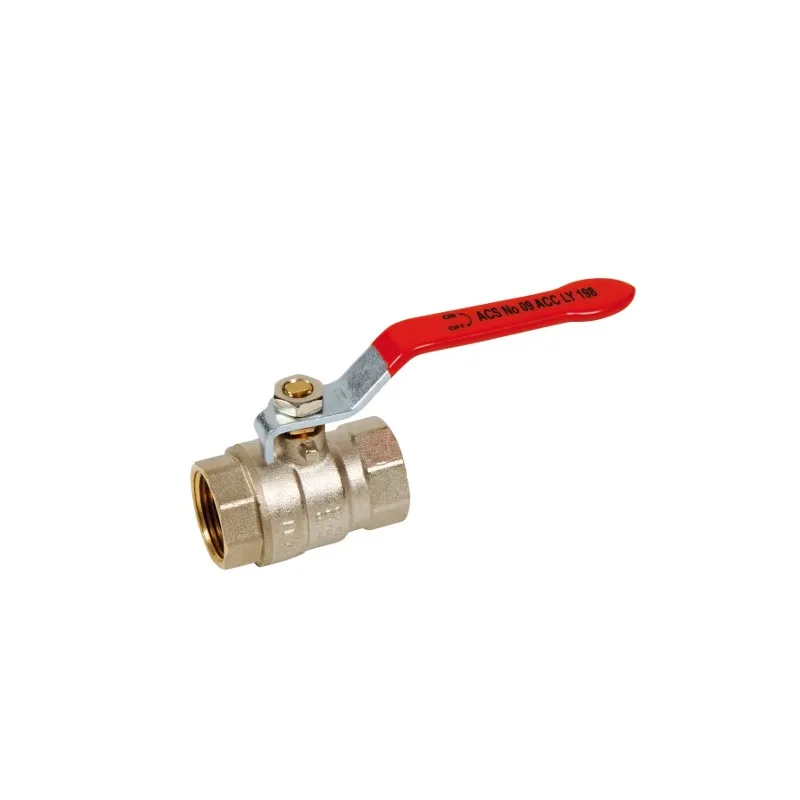

  • Vanne à sphère laiton femelle - femelle série bâtiment+ certifié ACS poignée acier plate rouge
  • Schéma Vanne à sphère laiton femelle - femelle série bâtiment+ certifié ACS
  • COURBE PRESSION TEMPERATURE serie BATIMENT

Photos non contractuelles

CW617N Titanium-Plated Brass Female-to-Female Ball Valve - Building+ Series, ACS Certified

Brass ball valve

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 30 bar up to DN 1", 20 bar for 1-1/4" and 1-1/2", 16 bar for 2", and 10 bar above

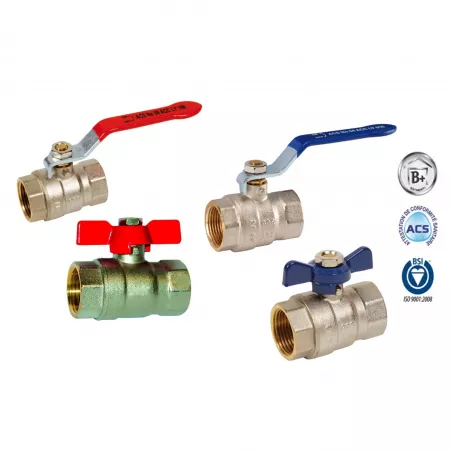

Available in:
Female/Female with red flat steel handle from 1/4" to 4"
Female/Female with red butterfly handle from 1/4" to 1"
Female/Female with blue flat steel handle from 1/4" to 2"
Female/Female with blue butterfly handle from 1/4" to 1"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : ISO 9001 : 2008 (BSI)Type de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/4" (8/13) red flat handle
Are you an individual?
Are you a professional?

Log in to find out your discount.

€4.64 Tax included

3.87 € tax excl.

Unité de vente : Pièce
58000N000BFF008
Diameter (in inches): 1/4" (8/13)
Handle type: Red flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve, Female-Female, Building+ Series, ACS Certified

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Solid ball
  • PTFE gland
  • Flat steel handle or aluminum butterfly lever
  • Dacromet-coated handle nut (salt spray protection)
  • Body marked “80S” with ACS, date of manufacture, and logo
  • ACS number on the handle
  • Reversible handle

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: CW614N-grade brass, chrome-plated.
  • PTFE ball seals.
  • PTFE gland.
  • Non-ejectable stem.
  • Reversible handle.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 469
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/4" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2 1/2" 3" 4"
Passage diameter 8 10 14.5 19 24.5 31 39.5 49.5 62 74 85
PS 30 30 30 30 30 20 20 16 10 10 10
Track gauge 44 44 49 56 66 76 87 103 132 148 168

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve, Female-Female, Building+ Series, ACS Certified

Data sheet

Reference
58000N000BFF008
