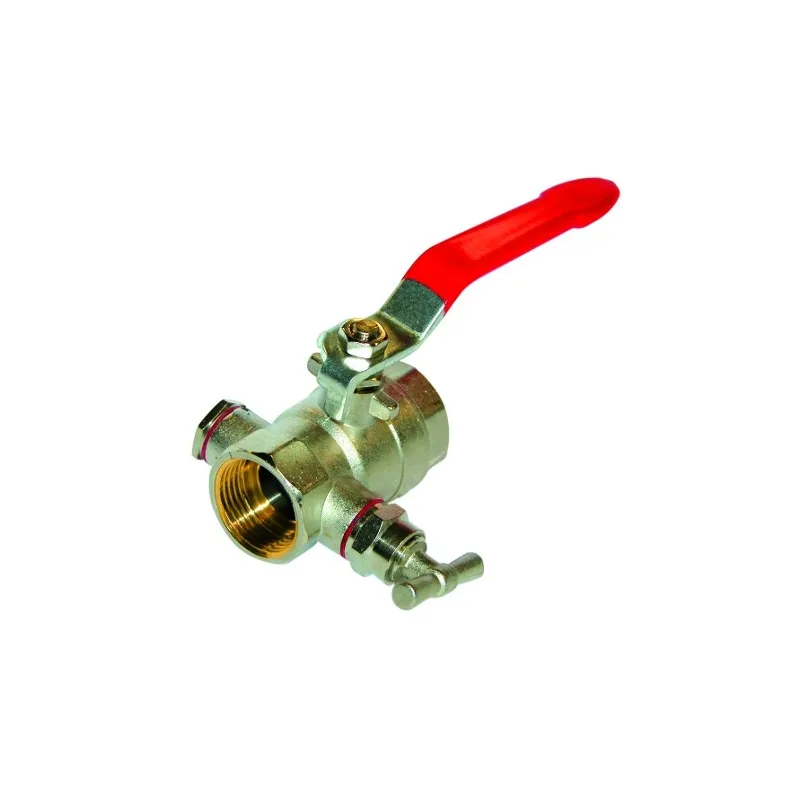

  • Vanne à sphère laiton titré CW617N femelle - femelle à purge série bâtiment+ certifié ACS poignée plate rouge
  • NOMENCLATURE FEMELLE – FEMELLE A PURGE serie BATIMENT
  • COURBE PRESSION TEMPERATURE serie BATIMENT

Photos non contractuelles

CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain,
Building+ Series, ACS Certified

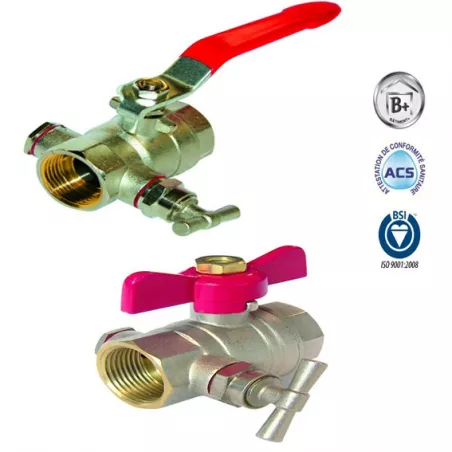

Brass ball valve

Application:

Water supply and distribution networks
Minimum permissible temperature Ts: -10°C Maximum permissible
temperature Ts: +120°C Maximum permissible
pressures Ps: 30 bar up to DN 1", 20 bar for 1-1/4" and 1-1/2", 16 bar for 2", and 10 bar for sizes larger than 2"

Available in:
Female/Female with 1/4" drain and flat red steel handle from 1/2" to 2"
Female/Female with 1/4" drain and red butterfly handle from 1/2" to 1"

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21) red flat handle
Are you an individual?
Are you a professional?

Log in to find out your discount.

€9.71 Tax included

8.09 € tax excl.

Unité de vente : Pièce
58500NAP0BFF015
Diameter (in inches): 1/2" (15/21)
Handle type: Red flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Full-size
  • Non-ejectable shaft
  • Solid ball
  • PTFE gland
  • Flat steel handle or aluminum butterfly lever
  • Dacromet-coated handle nut (salt spray protection)
  • Body marked “80S” with ACS, date of manufacture, and logo
  • ACS number on the handle
  • Reversible handle

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: CW614N-grade brass, chrome-plated.
  • PTFE ball seals.
  • PTFE gland.
  • Non-ejectable stem.
  • Reversible handle.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Sanitary Conformity Certificate A.C.S. No. 14 ACC LY 469
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
PS 30 30 30 20 20 16
Track width 52.5 59.5 69.5 79.5 91 106.5

Caractéristiques techniques CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified

Data sheet

Reference
58500NAP0BFF015
Avis de l'équipe
Le plus économique
Système
Bâtiment +
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Joint de sphère PTFE Sphère laiton titré CW614N chromée
Axe
Inéjectable
Presse-étoupe
PTFE
Commande
Couleur rouge En fonction du modèle choisi Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
En fonction du modèle choisi Voir tableau
Température minimum
-10°C
Température maximum
120°C
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
Certification ACS NF
Normalisation
Directive 97/23/CE
Équipements
Purge
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781100387

Download documentation

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

FT VSL bâtiment 580-588

Fiche technique Vannes à sphère laiton bâtiment+ 580

Download (2.64MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified

Voici la liste des références et poids correspondants aux options séléctionnées.
56000NAP0BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1/2" (15/21) - Red butterfly lever
Diameter (in inches) 1/2" (15/21)
Handle type Red butterfly lever
Packed weight 0,2352kg
8.09 € tax excl.
Consulter
58500NAP0BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1/2" (15/21) - Red flat handle
Diameter (in inches) 1/2" (15/21)
Handle type Red flat handle
Packed weight 0,2583kg
8.09 € tax excl.
Consulter
58500NAP0BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 3/4" (20/27) - Red flat handle
Diameter (in inches) 3/4" (20/27)
Handle type Red flat handle
Packed weight 0,3444kg
10.4 € tax excl.
Consulter
56000NAP0BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 3/4" (20/27) - Red butterfly lever
Diameter (in inches) 3/4" (20/27)
Handle type Red butterfly lever
Packed weight 0,30765kg
10.4 € tax excl.
Consulter
58500NAP0BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1" (26/34) - Red flat handle
Diameter (in inches) 1" (26/34)
Handle type Red flat handle
Packed weight 0,4725kg
15.18 € tax excl.
Consulter
56000NAP0BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1" (26/34) - Red butterfly lever
Diameter (in inches) 1" (26/34)
Handle type Red butterfly lever
Packed weight 0,4473kg
15.18 € tax excl.
Consulter
58500NAP0BFF032 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1"1/4 (33/42) - Red flat handle
Diameter (in inches) 1"1/4 (33/42)
Handle type Red flat handle
Packed weight 0,6825kg
22.2 € tax excl.
Consulter
58500NAP0BFF040 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1"1/2 (40/49) - Red flat handle
Diameter (in inches) 1"1/2 (40/49)
Handle type Red flat handle
Packed weight 0,987kg
31.82 € tax excl.
Consulter
58500NAP0BFF050 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 2" (50/60) - Red flat handle
Diameter (in inches) 2" (50/60)
Handle type Red flat handle
Packed weight 1,5435kg
49.69 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Handle type Packed weight Prix
56000NAP0BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1/2" (15/21) - Red butterfly lever 1/2" (15/21) Red butterfly lever 0,2352kg 8.09 € tax excl.
58500NAP0BFF015 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1/2" (15/21) - Red flat handle 1/2" (15/21) Red flat handle 0,2583kg 8.09 € tax excl.
58500NAP0BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 3/4" (20/27) - Red flat handle 3/4" (20/27) Red flat handle 0,3444kg 10.4 € tax excl.
56000NAP0BFF020 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 3/4" (20/27) - Red butterfly lever 3/4" (20/27) Red butterfly lever 0,30765kg 10.4 € tax excl.
58500NAP0BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1" (26/34) - Red flat handle 1" (26/34) Red flat handle 0,4725kg 15.18 € tax excl.
56000NAP0BFF025 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1" (26/34) - Red butterfly lever 1" (26/34) Red butterfly lever 0,4473kg 15.18 € tax excl.
58500NAP0BFF032 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1"1/4 (33/42) - Red flat handle 1"1/4 (33/42) Red flat handle 0,6825kg 22.2 € tax excl.
58500NAP0BFF040 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 1"1/2 (40/49) - Red flat handle 1"1/2 (40/49) Red flat handle 0,987kg 31.82 € tax excl.
58500NAP0BFF050 - CW617N Titanium-Plated Brass Female-to-Female Ball Valve with Drain, Building+ Series, ACS Certified - 2" (50/60) - Red flat handle 2" (50/60) Red flat handle 1,5435kg 49.69 € tax excl.
