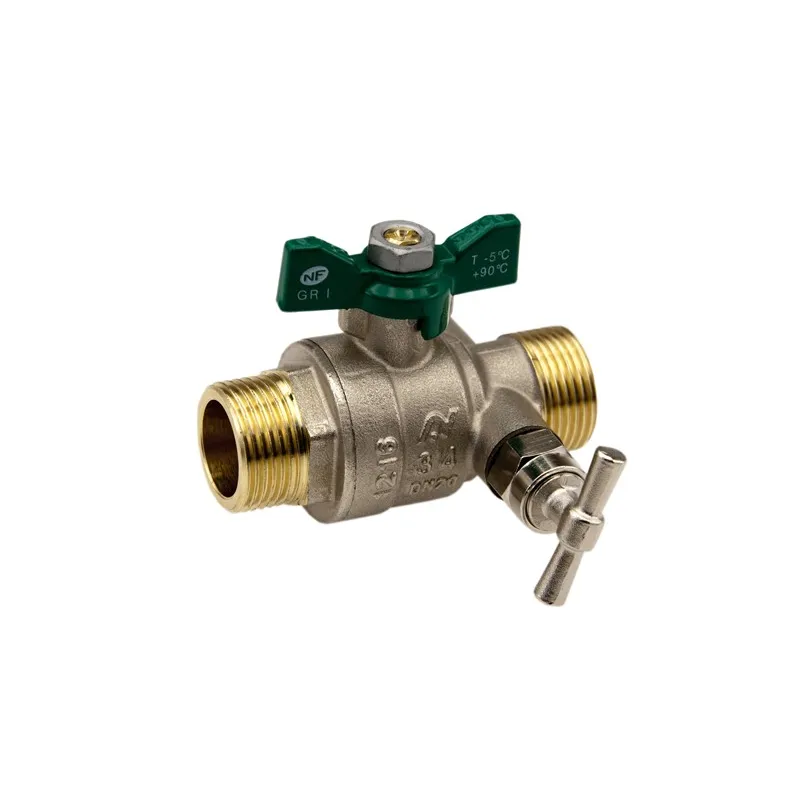

CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain 1" (26/34) green butterfly lever

Vannes à sphère laiton série NF et ACS
Vanne à sphère laiton mâle - mâle titré CW617N à purge poigneé papillon verte
search
  • Vanne à sphère laiton mâle - mâle titré CW617N à purge poigneé papillon verte
  • Nomenclature Vanne à sphère laiton mâle - mâle titré CW617N à purge
  • Courbe Vanne à sphère laiton mâle - mâle titré CW617N à purge

Photos non contractuelles

CW617N-grade brass ball valve, male-to-male with drain, NF and ACS certified

Brass ball valve
with drain

Applications:

Domestic hot water, drinking water, air conditioning, watering, and irrigation. Minimum permissible
temperature Ts: -5°C Maximum permissible
temperature Ts: +90°C (+110°C peak for up to 1 hour) Maximum permissible
pressure Ps: 25 bar

Available in:

  • Green flat steel handle or green aluminum butterfly lever

10-year manufacturer’s warranty (the manufacturer’s warranty does not cover installation defects or wear and tear)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFNormes et certifications : CSTBATType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1" (26/34) green butterfly lever
Are you an individual?
Are you a professional?

Log in to find out your discount.

€30.92 Tax included

25.77 € tax excl.

Unité de vente : Pièce
54500NAP0BMM025
Diameter (in inches): 1" (26/34)
Handle type: Green butterfly lever
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Manufactured in accordance with standard NF079
  • Made in Italy
  • Full bore
  • Non-ejectable pin
  • Solid ball
  • Perforated ball (prevents water from stagnating between the ball and the body)
  • PTFE G200 gland + EPDM 4270 O-ring
  • Flat steel handle with anti-corrosion treatment or aluminum butterfly lever
  • Body markings: Made in Italy, NF, ACS, PN on one side and Logo, DN, Year/Month of manufacture, brass quality on the other side
  • Handle marking: On/Off, Airaga, Made in Italy, minimum and maximum temperature, acoustic class I
  • Reversible handle in RAL 6029 green
  • Optional padlockable system for DN1/2" and 3/4" (Ref. 9810404)

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: Perforated CW617N-titanium-plated brass: limited fluid retention.
  • Ball seals: PTFE.
  • Double shaft seal via PTFE gland and EPDM O-ring.
  • Non-ejectable stem.
  • Handle and nut: corrosion-resistant.
  • Reversible handle.
  • Handle and body traceability.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with the certification requirements of the NF079 mark
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • A.C.S. Sanitary Compliance Certificate No. 13 ACC LY 136
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/2" 3/4" 1"
Passage Ø 15 20 25
PS 25 25 25
Track gauge 66.5 77 89.5

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain

Data sheet

Reference
54500NAP0BMM025
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Bille pleine Joint de sphère PTFE Sphère laiton titré CW617N chromée
Axe
Double étanchéité par joint torique FKM Inéjectable
Commande
Couleur verte En fonction du modèle choisi Poignée et écrou anti-corrosion Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression de service
25B
Température minimum
-5°C
Température maximum
90°C
Température de pointe
110°C pendant 1 heure maximum
Fluide admissible
Arrosage et irrigation Eau chauffage Eau glacée et climatisation Eau sanitaire et potable
Normes et certifications
CSTBAT Certification ACS NF
Normalisation
Directive 97/23/CE
Équipements
Purge Sphère percée (évite la rétention d'eau) jusqu'au 1"1/2
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781121016

Download documentation

FT VSL CW617N

fiche technique Vannes à sphère laiton titré CW617N 506-528-544-549-567-577

Download (2.9MB)

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain

Voici la liste des références et poids correspondants aux options séléctionnées.
54500NAP0BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1/2" (15/21) - Green butterfly lever
Diameter (in inches) 1/2" (15/21)
Handle type Green butterfly lever
Packed weight 0,2562kg
14.04 € tax excl.
Consulter
54400NAP0BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1/2" (15/21) - Green flat handle
Diameter (in inches) 1/2" (15/21)
Handle type Green flat handle
Packed weight 0,28665kg
14.04 € tax excl.
Consulter
54400NAP0BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 3/4" (20/27) - Green flat handle
Diameter (in inches) 3/4" (20/27)
Handle type Green flat handle
Packed weight 0,3801kg
17.91 € tax excl.
Consulter
54500NAP0BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 3/4" (20/27) - Green butterfly lever
Diameter (in inches) 3/4" (20/27)
Handle type Green butterfly lever
Packed weight 0,3507kg
17.91 € tax excl.
Consulter
54400NAP0BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1" (26/34) - Green flat handle
Diameter (in inches) 1" (26/34)
Handle type Green flat handle
Packed weight 0,60165kg
25.77 € tax excl.
Consulter
54500NAP0BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1" (26/34) - Green butterfly lever
Diameter (in inches) 1" (26/34)
Handle type Green butterfly lever
Packed weight 0,55545kg
25.77 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Handle type Packed weight Prix
54500NAP0BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1/2" (15/21) - Green butterfly lever 1/2" (15/21) Green butterfly lever 0,2562kg 14.04 € tax excl.
54400NAP0BMM015 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1/2" (15/21) - Green flat handle 1/2" (15/21) Green flat handle 0,28665kg 14.04 € tax excl.
54400NAP0BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 3/4" (20/27) - Green flat handle 3/4" (20/27) Green flat handle 0,3801kg 17.91 € tax excl.
54500NAP0BMM020 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 3/4" (20/27) - Green butterfly lever 3/4" (20/27) Green butterfly lever 0,3507kg 17.91 € tax excl.
54400NAP0BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1" (26/34) - Green flat handle 1" (26/34) Green flat handle 0,60165kg 25.77 € tax excl.
54500NAP0BMM025 - CW617N Titanium-Plated Brass Ball Valve, Male-to-Male with Drain - 1" (26/34) - Green butterfly lever 1" (26/34) Green butterfly lever 0,55545kg 25.77 € tax excl.
