CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain 1/2" (15/21) green flat handle

Vannes à sphère laiton série NF et ACS

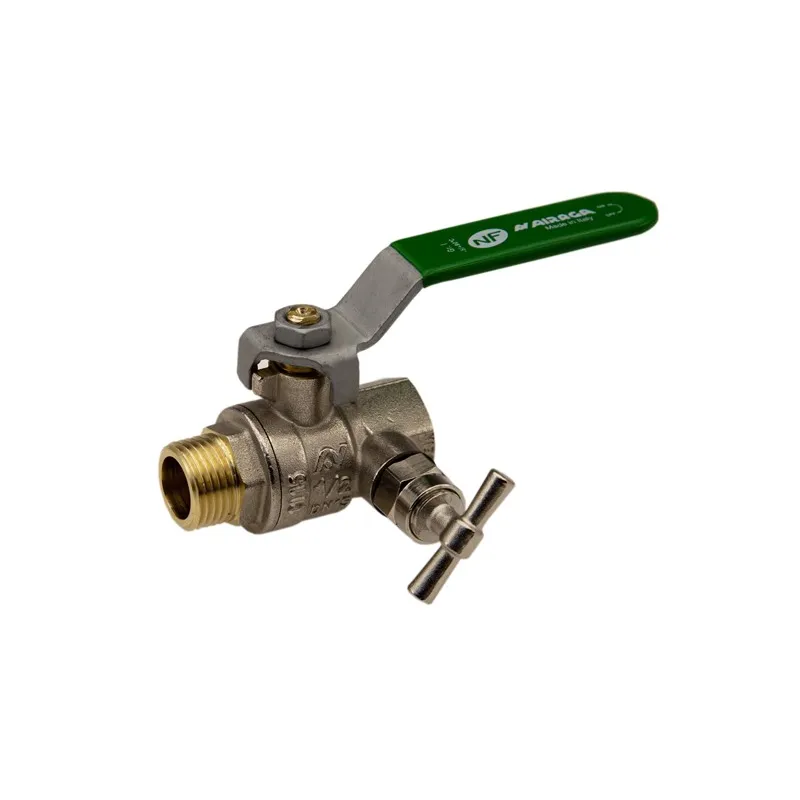

Vanne à sphère laiton mâle - femelle à purge titré CW617N poignée plate verte
search
  • Vanne à sphère laiton mâle - femelle à purge titré CW617N poignée plate verte
  • NOMENCLATURE A PURGE série NF et ACS mâle femelle
  • COURBE PRESSION TEMPERATURE( HORS VAPEUR ) série NF et ACS

Photos non contractuelles

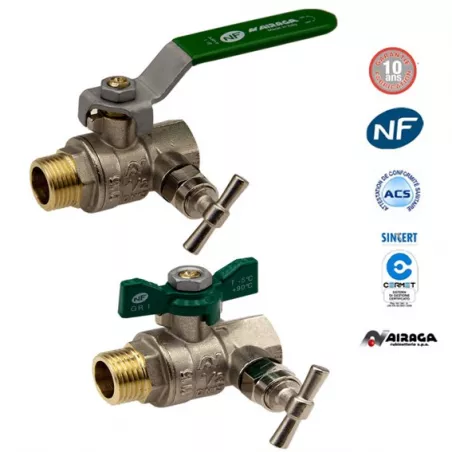

CW617N-grade brass ball valve, male-female, with drain, NF and ACS certified

Brass ball valve
with drain

Applications:

Domestic hot water, drinking water, air conditioning, watering, and irrigation. Minimum permissible
temperature Ts: -5°C Maximum permissible
temperature Ts: +90°C (+110°C peak for up to 1 hour) Maximum permissible
pressure Ps: 25 bar

Available in:

  • Green flat steel handle or green aluminum butterfly lever

10-year manufacturer’s warranty (the manufacturer’s warranty does not cover installation defects or wear and tear)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFNormes et certifications : CSTBATType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21) green flat handle
Are you an individual?
Are you a professional?

Log in to find out your discount.

€16.46 Tax included

13.72 € tax excl.

Unité de vente : Pièce
54900NAP0BMF015
Diameter (in inches): 1/2" (15/21)
Handle type: Green flat handle
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Manufactured in accordance with standard NF079
  • Made in Italy
  • Full bore
  • Non-ejectable pin
  • Solid ball
  • Perforated ball (prevents water from stagnating between the ball and the body)
  • PTFE G200 gland + EPDM 4270 O-ring
  • Flat steel handle with anti-corrosion treatment or aluminum butterfly lever
  • Body markings: Made in Italy, NF, ACS, PN on one side and Logo, DN, Year/Month of manufacture, brass quality on the other side
  • Handle marking: On/Off, Airaga, Made in Italy, minimum and maximum temperature, acoustic class I
  • Reversible handle in RAL 6029 green
  • Optional padlockable system for DN1/2" and 3/4" (Ref. 9810404)

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: Perforated CW617N-titanium-plated brass: limited fluid retention.
  • Ball seals: PTFE.
  • Double shaft seal via PTFE gland and EPDM O-ring.
  • Non-ejectable stem.
  • Handle and nut: corrosion-resistant.
  • Reversible handle.
  • Handle and body traceability.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with the certification requirements of the NF079 mark
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • A.C.S. Sanitary Compliance Certificate No. 13 ACC LY 136
  • Cylindrical BSP female thread and cylindrical BSP male thread in accordance with ISO 228-1

Nominal Ø 1/2" 3/4" 1"
Passage Ø 25 20 25
PS 25 25 25
Track width 60 70 81.5

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain

Data sheet

Reference
54900NAP0BMF015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Bille pleine - Joint de sphère PTFE - Sphère laiton titré CW617N chromée
Axe
Double étanchéité par joint torique FKM - Inéjectable
Commande
Couleur verte - En fonction du modèle choisi - Poignée et écrou anti-corrosion - Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MF (mâle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
25B
Température minimum
-5°C
Température maximum
90°C
Température de pointe
110°C pendant 1 heure maximum
Fluide admissible
Arrosage et irrigation - Eau chauffage - Eau glacée et climatisation - Eau sanitaire et potable
Normes et certifications
CSTBAT - Certification ACS - NF
Normalisation
Directive 97/23/CE
Équipements
Purge - Sphère percée (évite la rétention d'eau) jusqu'au 1"1/2
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3598781120828

Download documentation

FT VSL CW617N

fiche technique Vannes à sphère laiton titré CW617N 506-528-544-549-567-577

Download (2.9MB)

notice montage VSL

notice montage Vannes à sphère laiton titré

Download (47.83KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain

Voici la liste des références et poids correspondants aux options séléctionnées.
54900NAP0BMF015 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1/2" (15/21) - Green flat handle
Diameter (in inches) 1/2" (15/21)
Handle type Green flat handle
Packed weight 0,27825kg
13.72 € tax excl.
Consulter
55000NAP0BMF015 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1/2" (15/21) - Green butterfly lever
Diameter (in inches) 1/2" (15/21)
Handle type Green butterfly lever
Packed weight 0,2499kg
13.72 € tax excl.
Consulter
55000NAP0BMF020 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 3/4" (20/27) - Green butterfly lever
Diameter (in inches) 3/4" (20/27)
Handle type Green butterfly lever
Packed weight 0,35175kg
17.71 € tax excl.
Consulter
54900NAP0BMF020 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 3/4" (20/27) - Green flat handle
Diameter (in inches) 3/4" (20/27)
Handle type Green flat handle
Packed weight 0,38325kg
17.71 € tax excl.
Consulter
54900NAP0BMF025 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1" (26/34) - Green flat handle
Diameter (in inches) 1" (26/34)
Handle type Green flat handle
Packed weight 0,6048kg
25.32 € tax excl.
Consulter
55000NAP0BMF025 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1" (26/34) - Green butterfly lever
Diameter (in inches) 1" (26/34)
Handle type Green butterfly lever
Packed weight 0,5565kg
25.32 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Handle type Packed weight Prix
54900NAP0BMF015 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1/2" (15/21) - Green flat handle 1/2" (15/21) Green flat handle 0,27825kg 13.72 € tax excl.
55000NAP0BMF015 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1/2" (15/21) - Green butterfly lever 1/2" (15/21) Green butterfly lever 0,2499kg 13.72 € tax excl.
55000NAP0BMF020 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 3/4" (20/27) - Green butterfly lever 3/4" (20/27) Green butterfly lever 0,35175kg 17.71 € tax excl.
54900NAP0BMF020 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 3/4" (20/27) - Green flat handle 3/4" (20/27) Green flat handle 0,38325kg 17.71 € tax excl.
54900NAP0BMF025 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1" (26/34) - Green flat handle 1" (26/34) Green flat handle 0,6048kg 25.32 € tax excl.
55000NAP0BMF025 - CW617N Titanium-Plated Brass Ball Valve, Male-Female, with Drain - 1" (26/34) - Green butterfly lever 1" (26/34) Green butterfly lever 0,5565kg 25.32 € tax excl.
