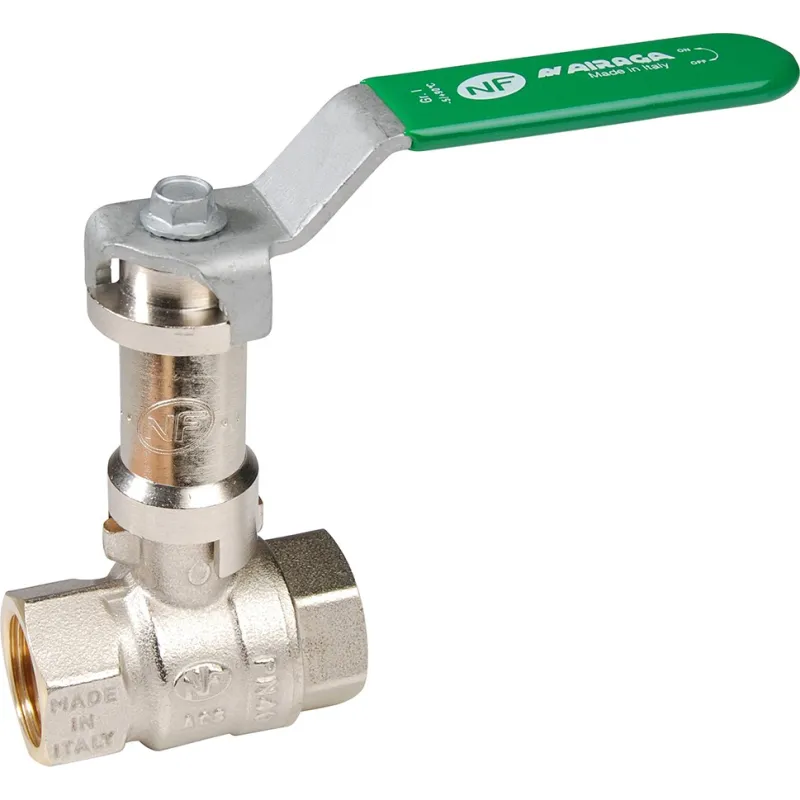

CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension 1/2" (15/21)

Vannes à sphère laiton série NF et ACS
Vanne à sphère laiton titré CW617N à prolongateur femelle - femelle
search
  • Vanne à sphère laiton titré CW617N à prolongateur
  • Vanne à sphère laiton titré CW617N à prolongateur femelle - femelle
  • NOMENCLATURE Vanne à sphère laiton titré CW617N à prolongateur femelle - femelle
  • COURBE PRESSION TEMPERATURE( HORS VAPEUR ) série NF et ACSVanne à sphère laiton à prolongateur

Photos non contractuelles

CW617N-grade brass ball valve with female-to-female extension, NF and ACS certified

Brass ball valve
with extender

Applications:

Sprinkling, irrigation, domestic hot water, drinking water, air conditioning Minimum permissible
temperature Ts: -5°C Maximum permissible
temperature Ts: +90°C (+110°C peak for up to 1 hour)
Maximum allowable pressure Ps: 40 bar up to DN 3/4", 25 bar from 1" to 1-1/4", 16 bar above

Available in:

  • Green flat steel handle or green aluminum butterfly lever

10-year manufacturer’s warranty (the manufacturer’s warranty does not cover installation defects or wear and tear)

Plus de détails
Normes et certifications : Certification ACSNormes et certifications : NFNormes et certifications : CSTBATType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
1/2" (15/21)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€18.13 Tax included

15.11 € tax excl.

Unité de vente : Pièce
61000N000BFF015
Diameter (in inches): 1/2" (15/21)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Manufactured in accordance with standard NF079
  • Made in Italy
  • Full bore
  • Non-ejectable pin
  • Solid ball
  • Perforated ball (prevents water stagnation between the ball and the body) up to DN 1½
  • PTFE G200 gland + EPDM 4270 O-ring
  • Flat steel handle with anti-corrosion treatment
  • Body marking: Made in Italy, NF, ACS, PN on one side and Logo, DN, Year/Month of manufacture, brass quality on the other side
  • Handle marking: On/Off, Airaga, Made in Italy, minimum and maximum temperature, acoustic class I
  • Reversible handle in green RAL 6029
  • Removable extension

Construction:

  • Body: CW617N-grade brass, brushed interior and nickel-plated exterior.
  • Ball: CW617N-alloyed brass, chrome-plated, perforated (up to 1½" DN): limited fluid retention.
  • PTFE ball seals.
  • Double shaft seal via PTFE gland and EPDM O-ring.
  • Non-ejectable stem.
  • Handle and nut: corrosion-resistant.
  • Reversible handle.
  • Handle and body traceability.

Standardization:

  • Manufactured in accordance with ISO 9001:2008
  • Manufactured in accordance with the certification requirements of the NF079 mark
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • A.C.S. Sanitary Compliance Certificate No. 13 ACC LY 137
  • Cylindrical BSP female thread in accordance with ISO 228-1

Nominal Ø 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Passage diameter 15 20 25 32 40 50
PS 40 40 25 25 16 16
Track gauge 50.5 61 71 83.5 93 112
Height (relative to the axis, including handle) 87 90 103 124 130 143

Caractéristiques techniques CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension

Data sheet

Reference
61000N000BFF015
Type de vanne
RBS (robinet à boisseau sphérique)
Passage
Intégral
Corps
Laiton titré CW617N interne brossé et externe nickelé
Obturateur
Bille pleine - Joint de sphère PTFE - Sphère laiton titré CW617N chromée
Axe
Double étanchéité par joint torique FKM - Inéjectable
Commande
Couleur verte - En fonction du modèle choisi - Poignée et écrou anti-corrosion - Réversible
Entraxe
En fonction du modèle choisi
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FF (femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression de service
De 1"1/2 à 2" : 16B - De 1" à 1"1/4 : 25B - De 1/4" à 3/4" : 40B
Température minimum
-5°C
Température maximum
90°C
Température de pointe
110°C pendant 1 heure maximum
Fluide admissible
Arrosage et irrigation - Eau chauffage - Eau glacée et climatisation - Eau sanitaire et potable
Normes et certifications
CSTBAT - Certification ACS - NF
Normalisation
Directive 97/23/CE
Équipements
Prolongateur - Sphère percée (évite la rétention d'eau) jusqu'au 1"1/2
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8027704001333

Download documentation

FT 610

Fiche technique 610 Vanne à sphère laiton titré CW617N à prolongateur

Download (698.83KB)

Caractéristiques liées à la version du produit CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension

Voici la liste des références et poids correspondants aux options séléctionnées.
61000N000BFF015 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1/2" (15/21)
Diameter (in inches) 1/2" (15/21)
Packed weight 0,2625kg
15.11 € tax excl.
Consulter
61000N000BFF020 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,35175kg
18.72 € tax excl.
Consulter
61000N000BFF025 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,5565kg
27.24 € tax excl.
Consulter
61000N000BFF032 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,945kg
44.49 € tax excl.
Consulter
61000N000BFF040 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,24425kg
57.4 € tax excl.
Consulter
61000N000BFF050 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 1,9215kg
90.74 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
61000N000BFF015 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1/2" (15/21) 1/2" (15/21) 0,2625kg 15.11 € tax excl.
61000N000BFF020 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 3/4" (20/27) 3/4" (20/27) 0,35175kg 18.72 € tax excl.
61000N000BFF025 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1" (26/34) 1" (26/34) 0,5565kg 27.24 € tax excl.
61000N000BFF032 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1"1/4 (33/42) 1"1/4 (33/42) 0,945kg 44.49 € tax excl.
61000N000BFF040 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 1"1/2 (40/49) 1"1/2 (40/49) 1,24425kg 57.4 € tax excl.
61000N000BFF050 - CW617N Titanium-Plated Brass Ball Valve with Female-to-Female Extension - 2" (50/60) 2" (50/60) 1,9215kg 90.74 € tax excl.
