Z-ONE Two-Way Spring-Return Motorized Zone Valve 3/4" (20/27)

Vannes directionnelles
Vanne de zone motorisée retour par ressort trois voies Z-ONE
search

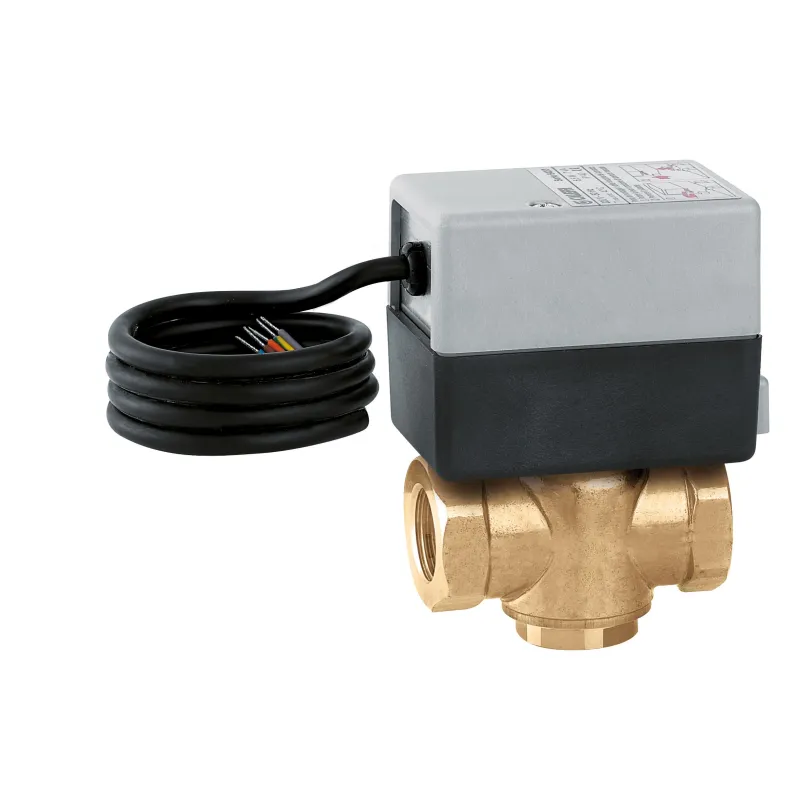

  • Vanne de zone motorisée retour par ressort trois voies Z-ONE
  • schéma dimension vanne de zone motorisée retour par ressort trois voies Z-ONE

Photos non contractuelles

Two-way motorized zone valve, normally closed with spring-return, with auxiliary contact

Function:

Zone valves automatically direct the heat transfer fluid in heating circuits.
The 642 (2-way) and 643 (3-way) series zone valves are equipped with a spring-return disc and a
servomotor with a synchronous motor and auxiliary contact. Thus, this model is suitable for both heating and cooling applications.
The actuator features a quick-connect system to the valve body to simplify removal during maintenance operations.

Model: 3/4" F or 1" F

Maximum glycol content: 30%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€176.16 Tax included

146.8 € tax excl.

Unité de vente : Pièce
V2VNFL000000F20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Z-ONE Two-Way Spring-Return Motorized Zone Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Body: brass, EN 12165 CW617N
  • Shutter shaft: stainless steel
  • Plug: EPDM
  • Compatible fluids: water, glycol water
  • Maximum glycol content: 30%
  • Temperature range: 0–90°C
  • Maximum fluid temperature: 110°C
  • Max. operating pressure: 16 bar
  • Threaded connections: 1/2”, 3/4”, 1” F
.

Actuator:

  • Materials: - housing: PC G10
  • Synchronous motor
  • Normally closed
  • Power supply: 230 V - 50 Hz
  • Power consumption: 6.5 W; 7 VA
  • Opening time: 70–75 s
  • Closing time: 5–7 s
  • Auxiliary contact breaking capacity: 0.8 A (230 V)
  • Protection rating: IP 40
  • Maximum ambient temperature: 40°C
  • Compliant with Directives: 73/23/EC and 89/336/EC
  • Power cord length: 95 cm

Caractéristiques techniques Z-ONE Two-Way Spring-Return Motorized Zone Valve

Data sheet

Reference
V2VNFL000000F20
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
FFF (femelle - femelle - femelle)
Diamètre
En fonction du modèle choisi
Pression maximum
16 bar
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau chauffage - Eau glacée et climatisation - Eau glycolée
Tension électrique
230V AC
Fréquence
50Hz
Indice de protection
IP40
Normes et certifications
73/23 CE - 89/336 CE
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FTVDZ2V20

Fiche technique vanne directionnelle motorisée Z-ONE 2 ou 3 voies

Download (826.36KB)

Caractéristiques liées à la version du produit Z-ONE Two-Way Spring-Return Motorized Zone Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
V2VNFL000000F20 - Z-ONE Two-Way Spring-Return Motorized Zone Valve - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 0,9kg
146.8 € tax excl.
Consulter
V2VNFL000000F25 - Z-ONE Two-Way Spring-Return Motorized Zone Valve - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 1kg
154.99 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
V2VNFL000000F20 - Z-ONE Two-Way Spring-Return Motorized Zone Valve - 3/4" (20/27) 3/4" (20/27) 0,9kg 146.8 € tax excl.
V2VNFL000000F25 - Z-ONE Two-Way Spring-Return Motorized Zone Valve - 1" (26/34) 1" (26/34) 1kg 154.99 € tax excl.
