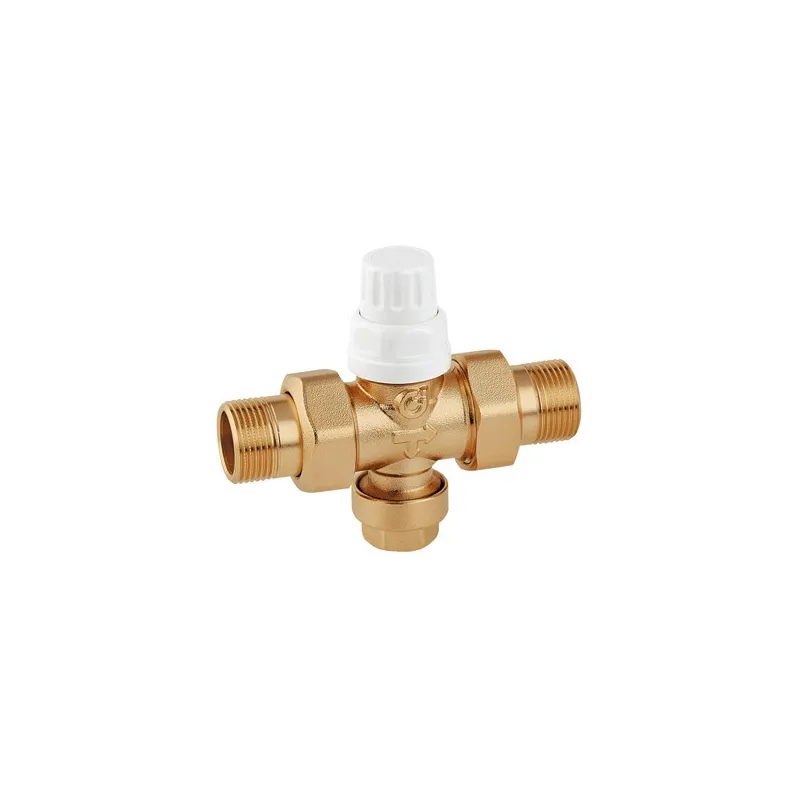

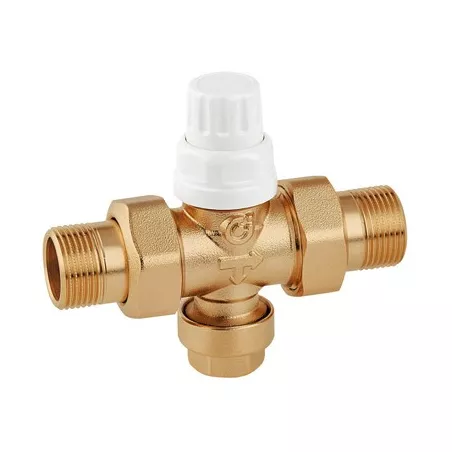

3-way directional zone valve, to be fitted with the TE220SCF electrothermal actuator and its detachable fittings

Function:

Zone valves automatically direct the heat transfer fluid within heating circuits.
When paired with an electrothermal actuator controlled by a room thermostat, they automatically shut off the portion of the hydraulic circuit that is not in use.
These zone valves are designed to control small circuits or heat emitters directly.

Maximum glycol content: 30%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
1/2"-1/2"-1/2"
Are you an individual?
Are you a professional?

Log in to find out your discount.

€64.82 Tax included

54.02 € tax excl.

Unité de vente : Pièce
V3VDZL000000M15
Diamètre raccords: 1/2"-1/2"-1/2"
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 3-way directional zone valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Body: Brass EN12165 CW617N
  • Shutter: Brass EN12164 CW617N
  • Hydraulic seals: EPDM
  • Drive shaft: Stainless steel
  • Fluids: water, glycol solutions
  • Glycol: 30% max
  • Operating temperature range: 0 / 95°C
  • Max. pressure: 10 bar
  • Max. differential pressure: 1.2 bar
  • Kv: 3.7
  • Connections: 1/2" and 3/4" union fittings,
  • 3-way bottom connection: 1/2'' M union fittings

Operating principle:

At the request of the room thermostat, the electrothermal head opens or closes the zone valve.
The valve opens under the action of the expandable wax thermostatic element, controlled directly by a PTC resistor, which automatically limits the flow rate to maintain the set temperature.
When de-energized, the device is "normally closed"

Caractéristiques techniques 3-way directional zone valve

Data sheet

Reference
V3VDZL000000M15
Matière
Laiton
Obturateur
laiton
Joint
EPDM
Internes
Inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Débit
Kv : 3.7
Pression différentielle
Maxi 1.2 bar
Pression maximum
10 bar
Température minimum
0°C
Température maximum
95°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615053708

Download documentation

FT VDC15

Fiche technique vannes de zone directionnelle

Download (616.29KB)

FT CAL-vanne de zone

Fiche Technique CALEFFI vanne de zone

Download (232.1KB)

Mode d'emploi vanne de zone

Mode Emploi Vanne de zone CALEFFI

Download (449.96KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit 3-way directional zone valve

Voici la liste des références et poids correspondants aux options séléctionnées.
V3VDZL000000M15 - 3-way directional zone valve - 1/2"-1/2"-1/2"
Diamètre raccords 1/2"-1/2"-1/2"
Packed weight 0,54495kg
54.02 € tax excl.
Consulter
V3VDZL000000M20 - 3-way directional zone valve - 3/4"-1/2"-3/4"
Diamètre raccords 3/4"-1/2"-3/4"
Packed weight 0,55755kg
54.15 € tax excl.
Consulter
Référence - Désignation Diamètre raccords Packed weight Prix
V3VDZL000000M15 - 3-way directional zone valve - 1/2"-1/2"-1/2" 1/2"-1/2"-1/2" 0,54495kg 54.02 € tax excl.
V3VDZL000000M20 - 3-way directional zone valve - 3/4"-1/2"-3/4" 3/4"-1/2"-3/4" 0,55755kg 54.15 € tax excl.
