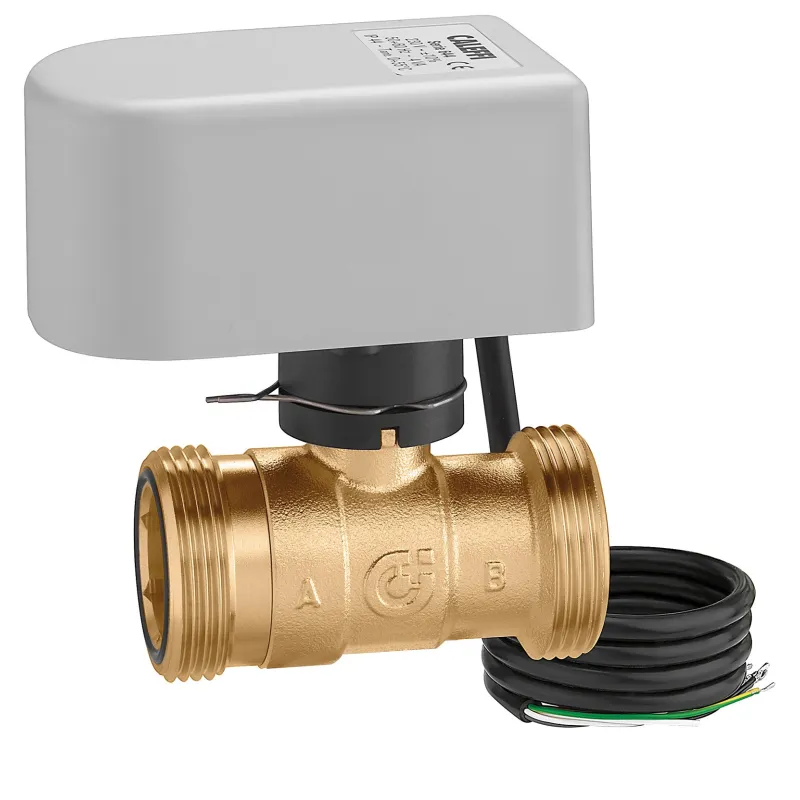

  • Vanne à sphère deux voies directionnelle, motorisée - 40 sec
  • Schéma vanne à sphère deux voies directionnelle, motorisée - 40 sec

Photos non contractuelles

1" Motorized Two-Way Directional Ball Valve - 40 sec

Function:

Motorized directional valves automatically direct the heat transfer fluid in heating, air conditioning
, or plumbing systems.
Their hydraulic performance, capacity, and ease of installation make them particularly well-suited for zone-controlled heating systems.

Supplied without union fittings.

Maximum glycol content: 50%

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€192.28 Tax included

160.23 € tax excl.

Unité de vente : Pièce
V2VDIL000000M25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 1" Motorized Two-Way Directional Ball Valve - 40 sec

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Description:

  • Motorized two-way directional ball valve.
  • Max. operating pressure: 10 bar.
  • Max. pressure drop: 10 bar.
  • Temperature range: -5 to 110°C.
  • Three-point motor with auxiliary contact.
  • Power supply: 230 V (~) or 24 V (~).
  • Power: 4 VA (40 sec); 8 VA (10 sec).
  • Auxiliary contact breaking capacity: 0.8 A (230 V).
  • Ambient temperature range: 0–55°C.
  • Protection rating:
  • IP 44 (if control axis is vertical), IP 40 (if control axis is horizontal).
  • Operating time: 40 s (90° rotation).
  • Power cable length: 100 cm.



Motorized ball valves are primarily used for the following characteristics:

  • No leaks
  • Short operating time (valve opening/closing); available versions have operating times of 10 and 40 seconds.
  • Ability to operate at high differential pressures
  • Low pressure drop
  • 3-point actuator for better control of the opening and closing phases based on the system’s characteristics.
  • Compliant with European directives
  • CE marking in accordance with Directives 89/336/EEC and 73/23/EEC.

Technical specifications:

  • Body: brass EN 12165 CW617N
  • Ball: brass EN 12164 CW614N, chrome-plated
  • Ball seal: PTFE with EPDM O-ring
  • Seal on control shaft: double EPDM O-ring
  • Union fitting seal: EPDM O-ring
  • Protective shell: self-extinguishing polycarbonate
  • Colors: gray RAL 9002
  • Compatible fluids: water, glycol water
  • Maximum glycol content: 50%
  • Max. operating pressure: 10 bar
  • Temperature range: -5 to 110°C
  • Maximum differential pressure: 10 bar
  • Connections: 1/2”–1” M union fitting

Actuator:

  • Synchronous motor
  • Power supply: 230 V (±10%) - 50/60 Hz
  • 24 V (±10%) - 50/60 Hz
  • Power consumption: 4 VA (644346, 644356, 644357, 644366, 644348, 644358, 644359, 644368) 8 VA
  • Auxiliary contact breaking capacity: 0.8 A (230 V)
  • Protection rating: IP 44 (vertical control axis)
  • IP 40 (horizontal control shaft)
  • Operating time (90° rotation angle): 40 s (644346, 644356, 644357, 644366, 644348, 644358, 644359, 644368) 10 s
  • Ambient temperature range: 0–55°C
  • Starting torque: 8 N·m
  • Power cable length: 100 cm

Caractéristiques techniques 1" Motorized Two-Way Directional Ball Valve - 40 sec

Data sheet

Reference
V2VDIL000000M25
Type de vanne
RBS (robinet à boisseau sphérique)
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
1"
Pression différentielle
10 bar max
Pression maximum
10 bar
Température minimum
-5°C
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
24V AC/DC 230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IP40 IP44
Normes et certifications
73/23 CE 89/336 CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615331677
