3-way cylindrical spool directional control valve

Vannes directionnelles

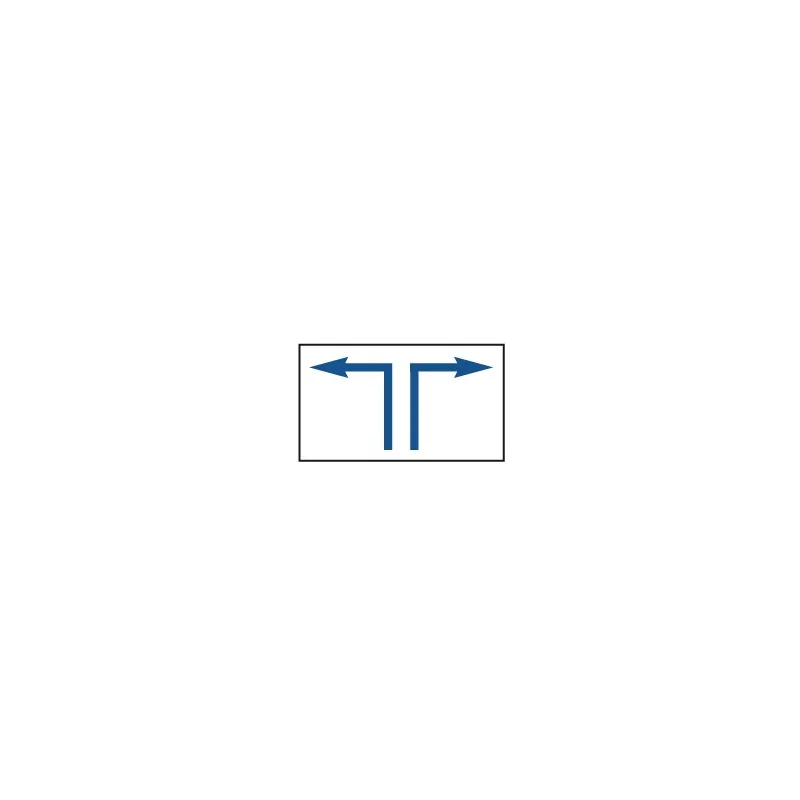

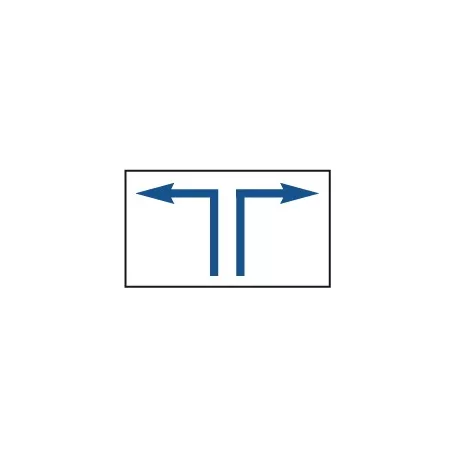

Schéma vanne directionnelle à boisseau cylindrique 3 voies
search
  • Vanne directionnelle à boisseau cylindrique 3 voies
  • Schéma vanne directionnelle à boisseau cylindrique 3 voies

Photos non contractuelles

3-way cylindrical spool directional valve

Function:

The VDEV 3-way cylindrical plug directional valve automatically diverts fluid in heating systems.

Maximum glycol content: 50%

Plus de détails
Normes et certifications : CEType de raccordement : Á visser BSP (pas du gaz)1
Are you an individual?
Are you a professional?

Log in to find out your discount.

€182.83 Tax included

152.36 € tax excl.

Unité de vente : Pièce
V3V12L000000M25
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 3-way cylindrical spool directional control valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Operation:

Port AB is always open. The
120° bore in the plug allows ports A and B to remain open alternately while the motor is running, which always rotates in the same direction; in the event of a blockage, the motor rotates in the opposite direction. Direct
reading of the plug position on the motor

Technical specifications:

Valve body:

  • Body: Brass UNI EN12165 CW617N
  • Plug: brass coated with polypropylene
  • Plug seals: TPE
  • Fluids: water, glycol solutions
  • Glycol: 50% max
  • Max. operating pressure: 10 bar
  • Max. differential pressure: 1 bar
  • Temperature range: 5° / +90°C
  • Kv (m³/h): 7.5

Actuator:

  • Power supply: 230V 50 Hz
  • Power consumption: 5VA
  • IP 40
  • Operating time: 8 s
  • Ambient temperature: 1 / 60°C
  • Power cable: 1 m
  • Built-in relay

Caractéristiques techniques 3-way cylindrical spool directional control valve

Data sheet

Reference
V3V12L000000M25
Type de vanne
RBS (robinet à boisseau sphérique)
Matière
Laiton
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
1"
Pression maximum
10 bar
Température minimum
5°C
Température maximum
90°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
230V monophasé
Fréquence
50Hz
Indice de protection
IP40
Normes et certifications
CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
3523830024581

Download documentation

FT VDB3V

Fiche technique vannes directionnelles à boisseau cylindrique 3 voies
