Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve entre brides pn16 dn 32/40

Vannes gaz et filtres
Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
search
  • Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Nomenclature Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Dimensions dn 32-150 Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Dimensions dn 200 Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Dimensions col et papillon Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Dimensions leviers manuels Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Coefficient de debit Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz
  • Calcul pertes de charges Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz

Photos non contractuelles

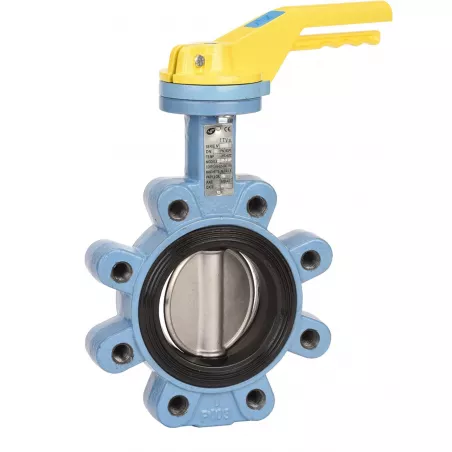

Excellence TTV NF series threaded-ear butterfly valve, gas-rated, cast iron body, stainless steel butterfly disc / cast iron disc, NBR seal

Application:

  • Fluid: Gas
  • Minimum and maximum permissible temperature Ts: -20°C to +60°C
  • Maximum allowable pressure Ps: 5 bar (MOP Class 5)

Available in:

Lever-operated from DN 40 to DN 200

Plus de détails
Normes et certifications : NFNormes et certifications : ATEXNormes et certifications : Lloyd's registerType de raccordement : Entre brides PN10-16Gamme : Excellence
entre brides pn16 dn 32/40
Are you an individual?
Are you a professional?

Log in to find out your discount.

€150.26 Tax included

125.22 € tax excl.

Unité de vente : Pièce
1181FIOTPN16040
Raccordement: Entre brides PN16
Diameter DN: DN 32/40
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Long collar for thermal insulation
  • Motorizable (ISO 5211 mounting plate)
  • Threaded lugs (in DN200, the lugs are reinforced)
  • Fitting between PN10/16 flanges (PN10 in DN200)
  • NF ROBGAZ certification
  • Through-shaft
  • Removable dovetail sleeve
  • Stainless steel butterfly valve up to and including DN100 and chrome-plated cast iron from DN125 to 200
  • 9-position handle, padlockable
  • Rilsan-coated paint, RAL 5024, 250–300 microns thick

Construction:

  • Dimensions: DN40 to 200
  • Connection: Between PN10/16 flanges (PN10 for DN200)
  • Pressure: 5 bar
  • Max. temperature: 60°C
  • Minimum temperature: -20°C
  • Material: GJS 500-7 cast iron body, NBR gas seal

Standardization:

  • ISO 9001:2015 certified manufacturer
  • DIRECTIVE 2014/68/EU: CE No. 0038 Risk
    Category III, Module H
  • Certificate 3.1 available upon request
  • Leak testing in accordance with EN 12266-1, Class A
  • Flange connection in accordance with EN 1092-1 PN10/PN16
  • Base plate in accordance with ISO 5211
  • Spacing in accordance with the following standards:
    o ISO 5752 short series 20
    o EN 558 series 20 (NF 29305)
    o BS 5155 series 4
    o DIN 3202 part 3, series K1
    o API 609 Table 1
    o ASME B16.10 Table 8 column 3
  • ATEX Group II Category 2 G/2D Zone 1 & 21 Zone 2 & 22 upon request
  • NF ROBGAZ Certificate No. ROB 064 in accordance with NF EN 13774 & NF EN 549

Caractéristiques techniques Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve

Data sheet

Reference
1181FIOTPN16040
Gamme
Excellence
Type de vanne
Vanne papillon
Type de raccordement
Entre brides PN10-16
Diamètre
En fonction du modèle choisi
Pression de service
5B
Température minimum
-20°C
Température maximum
60°C
Fluide admissible
Gaz
Normes et certifications
ASME B16-11 ATEX Directive 2014/68/UE ISO 5752 série 20 ISO 9001 : 2015 Lloyd's register NF
Normalisation
Directive 2014/68/UE
Possibilité de certificat 3.1
Oui
Possibilité de marquage ATEX
Oui
Unité de vente
Pièce

Download documentation

FT 1181

Fiche technique Robinet à papillon à oreilles taraudées gamme excellence TTV NF rob-gaz

Download (745.09KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve

Voici la liste des références et poids correspondants aux options séléctionnées.
1181FFOTPN10200 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN10 - DN 200
Raccordement Entre brides PN10
Diameter DN DN 200
Packed weight 19kg
494.91 € tax excl.
Consulter
1181FIOTPN16065 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 65
Raccordement Entre brides PN16
Diameter DN DN 65
Packed weight 4,8kg
142.74 € tax excl.
Consulter
1181FFOTPN16150 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 150
Raccordement Entre brides PN16
Diameter DN DN 150
Packed weight 12kg
262.67 € tax excl.
Consulter
1181FIOTPN16040 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 32/40
Raccordement Entre brides PN16
Diameter DN DN 32/40
Packed weight 2,8kg
125.22 € tax excl.
Consulter
1181FFOTPN16125 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 125
Raccordement Entre brides PN16
Diameter DN DN 125
Packed weight 11kg
225.29 € tax excl.
Consulter
1181FIOTPN16050 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 50
Raccordement Entre brides PN16
Diameter DN DN 50
Packed weight 4,2kg
125.22 € tax excl.
Consulter
1181FIOTPN16100 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 100
Raccordement Entre brides PN16
Diameter DN DN 100
Packed weight 8kg
180.6 € tax excl.
Consulter
1181FIOTPN16080 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 80
Raccordement Entre brides PN16
Diameter DN DN 80
Packed weight 6,2kg
162.47 € tax excl.
Consulter
Référence - Désignation Raccordement Diameter DN Packed weight Prix
1181FFOTPN10200 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN10 - DN 200 Entre brides PN10 DN 200 19kg 494.91 € tax excl.
1181FIOTPN16065 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 65 Entre brides PN16 DN 65 4,8kg 142.74 € tax excl.
1181FFOTPN16150 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 150 Entre brides PN16 DN 150 12kg 262.67 € tax excl.
1181FIOTPN16040 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 32/40 Entre brides PN16 DN 32/40 2,8kg 125.22 € tax excl.
1181FFOTPN16125 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 125 Entre brides PN16 DN 125 11kg 225.29 € tax excl.
1181FIOTPN16050 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 50 Entre brides PN16 DN 50 4,2kg 125.22 € tax excl.
1181FIOTPN16100 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 100 Entre brides PN16 DN 100 8kg 180.6 € tax excl.
1181FIOTPN16080 - Excellence TTV NF Rob-Gaz Series Threaded-Ear Butterfly Valve - Entre brides PN16 - DN 80 Entre brides PN16 DN 80 6,2kg 162.47 € tax excl.
