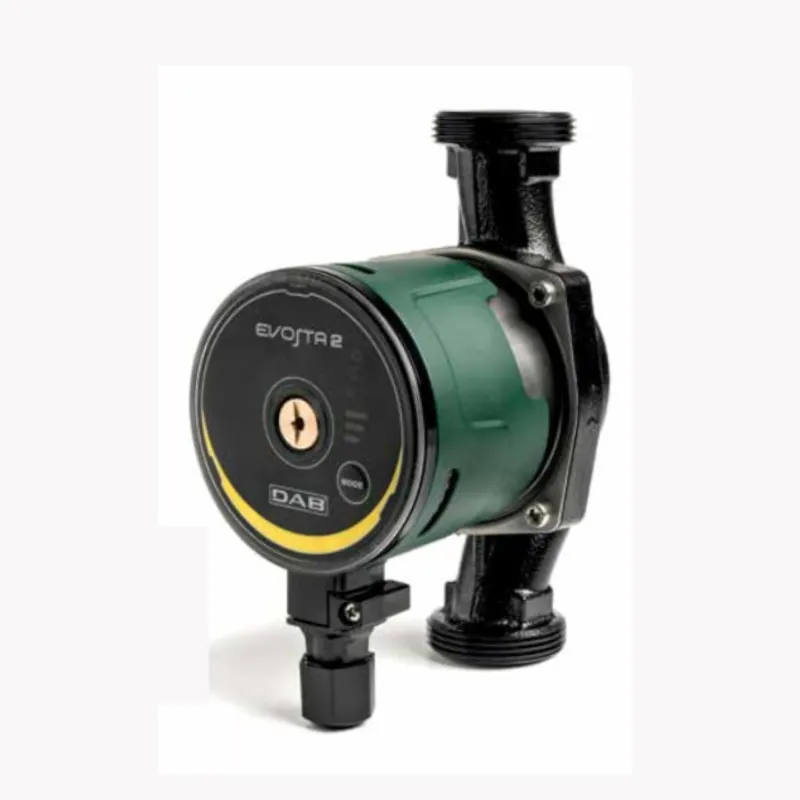

EVOSTA2 Cast Iron Heating Circulator with Union Fittings

EVOSTA2 cast iron union-type circulators for heating, with electronic speed control.

Low energy consumption, compliant with the 2015 European ErP Directive 2009/125/EC (formerly EuP).

A single button to select the operating mode (6 proportional pressure curves, 3 fixed speed curves).

Maximum glycol content: 30%. Fluid quality
requirements: clean, free of solids and mineral oils, non-viscous, chemically neutral, and similar in properties to water.

Plus de détails
Normes et certifications : Erp 2009/125/CEType de raccordement : Á visser BSP (pas du gaz)1
evosta2 40 - 70/180 - 1"1/2
Are you an individual?
Are you a professional?

Log in to find out your discount.

€181.78 Tax included

151.48 € tax excl.

Unité de vente : Pièce
CCDEVFU18000M40
Type - Center distance - Diameter: EVOSTA2 40 - 70/180 - 1"1/2
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Applications:

Low-energy-consumption electronic pump for water circulation in all types of residential heating and air conditioning systems. Operating
range: 0.4–3.6 m³/h with head heights up to 6.9 m

Technical specifications:

  • Fluid temperature range: -10 °C to +110 °C
  • Maximum operating pressure: 10 bar (1000 kPa)
  • Protection rating: IPX5
  • Insulation class: F
  • Installation: with the motor shaft horizontal
  • Standard power supply: single-phase 1 x 230 V ~ 50 / 60 Hz
  • Pumped fluid: Clean, free of solids and traces of mineral oil, non-viscous, chemically neutral, similar to water (max. 30% glycol)

EVOSTA 2 is a new range of DAB circulators that combines the robustness of mechanical circulators with the advantages of electronic models. The permanent magnet synchronous motor, frequency converter, and EEI efficiency rating ≤ 0.18, combined with IPX5 protection and an integrated drain plug, make EVOSTA 2 one of the best products in its class in terms of efficiency and reliability. The EVOSTA 2 circulator range is ideal for replacing older three-speed circulators, thanks to both its compact dimensions and its comprehensive features. The product also simplifies the installer’s work with its single sequential adjustment button and direct access to the motor shaft for potential unblocking.

Pump body made of cataphoretic-coated cast iron and a wet rotor motor. Motor housing made of stainless steel, impeller made of technopolymer. Ceramic motor shaft mounted on ceramic bearings lubricated by the pumped liquid. Stator and rotor sleeves and end cap made of stainless steel. Thrust ring made of graphite. Sealing rings made of EPDM and air vent plug made of brass. Thanks to the motor’s internal protection, the pump requires no additional surge protection.

The operating modes of the EVOSTA 2 circulators can be changed using the control panel located on the cover of the electronic control unit. The pump offers 12 configuration options that can be selected using the MODE button. The pump settings are indicated by six LED segments on the display.

Caractéristiques techniques EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings

Data sheet

Reference
CCDEVFU18000M40
Avis de l'équipe
Le plus économique
Type
Circulateur
Matière
Fonte
Isolation
PEX expansé
Joint
EPDM
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Longueur
En fonction du modèle choisi
Débit
Voir courbe
Colonne d'eau
Voir courbe
Pression maximum
10 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IPX 5
Classe d'isolation
F
Normes et certifications
Erp 2009/125/CE
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8059893033031

Download documentation

Fiche technique DABEVA

Circulateur de chauffage domestique EVOSTA fonte

Download (935.84KB)

FT EVOSTA 2 et 3

Fiche technique Circulateur EVOSTA 2 et 3

Download (4.33MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings

Voici la liste des références et poids correspondants aux options séléctionnées.
CCDEVFU13000M40 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/130 - 1"1/2
Type - Center distance - Diameter EVOSTA2 40 - 70/130 - 1"1/2
Packed weight 2,1kg
159.25 € tax excl.
Consulter
CCDEVFU13000M25 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/130-1/2 - 1"
Type - Center distance - Diameter EVOSTA2 40 - 70/130-1/2 - 1"
Packed weight 1,89kg
161.95 € tax excl.
Consulter
CCDEVFU18000M40 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/180 - 1"1/2
Type - Center distance - Diameter EVOSTA2 40 - 70/180 - 1"1/2
Packed weight 2,205kg
151.48 € tax excl.
Consulter
CCDEVFU18000M50 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/180X - 2"
Type - Center distance - Diameter EVOSTA2 40 - 70/180X - 2"
Packed weight 2,415kg
166.73 € tax excl.
Consulter
Référence - Désignation Type - Center distance - Diameter Packed weight Prix
CCDEVFU13000M40 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/130 - 1"1/2 EVOSTA2 40 - 70/130 - 1"1/2 2,1kg 159.25 € tax excl.
CCDEVFU13000M25 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/130-1/2 - 1" EVOSTA2 40 - 70/130-1/2 - 1" 1,89kg 161.95 € tax excl.
CCDEVFU18000M40 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/180 - 1"1/2 EVOSTA2 40 - 70/180 - 1"1/2 2,205kg 151.48 € tax excl.
CCDEVFU18000M50 - EVOSTA2 Cast Iron Home Heating Circulator with Union Fittings - EVOSTA2 40 - 70/180X - 2" EVOSTA2 40 - 70/180X - 2" 2,415kg 166.73 € tax excl.
