EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) evosta 2 sol 20-75/180

Circulateurs solaires
EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE)
search
  • EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE)
  • Evosta 2 vue eclaté
  • Construction circulateur EVOSTA 2 solaire
  • Plan EVOSTA 2 solaire

Photos non contractuelles

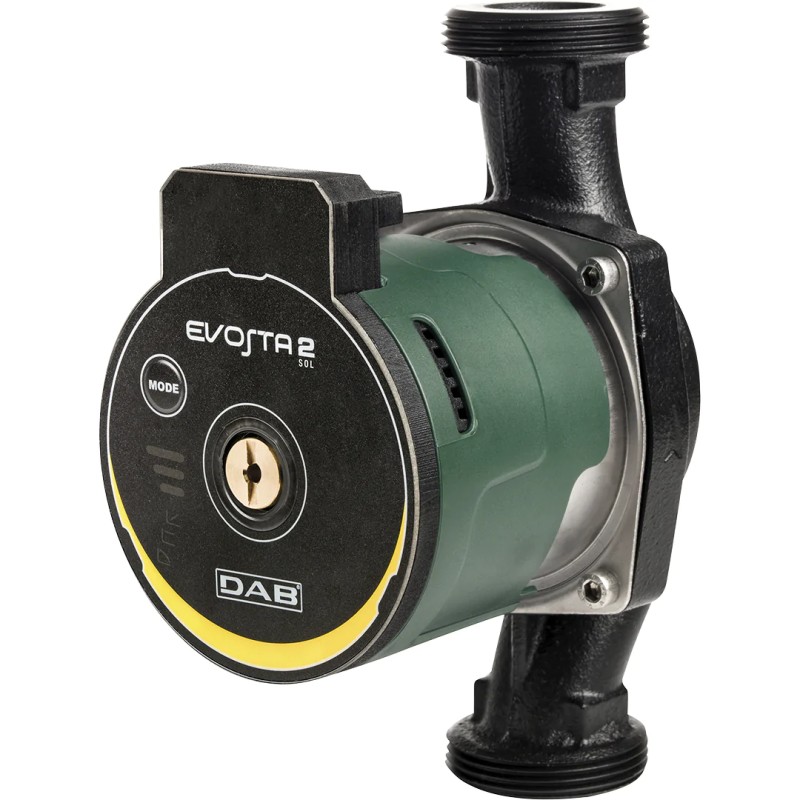

EVOSTA 2 SOLAIRE Electronic Submersible Circulator, up to 7.5 m head

Applications:

Low-energy-consumption electronic pump for water circulation in all types of solar heating systems.

Maximum glycol content: 50% Fluid quality
requirements: clean, free of solids and mineral oils, non-viscous, chemically neutral, and with properties similar to water.

Plus de détails
Type de raccordement : Á visser BSP (pas du gaz)1
evosta 2 sol 20-75/180
Are you an individual?
Are you a professional?

Log in to find out your discount.

€294.49 Tax included

245.41 € tax excl.

Unité de vente : Pièce
EVO2S0002075180
Type - Center distance - Diameter: EVOSTA 2 SOL 20-75/180
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE)

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Operating range: 0–4 m³/h with a head of up to 14.5 meters
  • Fluid temperature range: -10 °C to +110 °C (130 °C to 60 °C ambient)
  • Operating pressure: 10 bar (1000 kPa)
  • Protection rating: IPX4
  • Insulation class: F
  • Installation: with the motor shaft horizontal
  • Standard power supply: single-phase 1 x 115–230 V ~ 50/60 Hz
  • Power connector: Molex connector with 1.5 m cable
  • PWM signal connector: connector with 1.5 m cable (OEM versions only)

CONSTRUCTION FEATURES:

Cast iron pump body with cataphoretic coating and wet rotor motor. Steel motor housing, technopolymer impeller. Ceramic motor shaft mounted on ceramic bearings lubricated by the pumped liquid. Stator and rotor sleeves and sealing flange made of stainless steel. Graphite thrust ring. EPDM sealing rings and brass air vent plug. Thanks to the motor’s internal protection, the pump requires no form of overload protection.

CONTROL PANEL:

The functions of the EVOSTA 2 SOL circulators can be modified via the control panel located on the cover of the electronic control unit. The pump has nine configuration options, which can be selected using the MODE button.

The pump settings are indicated by six illuminated segments on the display. The EVOSTA SOL PWM version can be controlled by an external control unit using a digital PWM (Pulse Width Modulation) signal. The setpoint of the control curve—which can be of the pressure-proportional or
constant-speed type
—is adjusted via the duty cycle of the applied PWM signal in accordance with VDMA Standard 24244 “Wet runner circulating pumps – Specification of PWM
control signals.”
Additionally, a PWM signal output from the board indicates the operating status of the circulator, as shown below

Caractéristiques techniques EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE)

Data sheet

Reference
EVO2S0002075180
Application
SOLAIRE
Type
Circulateur
Joint
EPDM
Entraxe
150 mm
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MM (mâle - mâle)
Diamètre
En fonction du modèle choisi
Longueur
En fonction du modèle choisi
Débit
Voir courbe
Colonne d'eau
Voir courbe
Pression maximum
10 bar
Température minimum
-10°C
Température maximum
110°C
Fluide admissible
Eau chauffage Eau glacée et climatisation Eau glycolée
Tension électrique
230V monophasé
Fréquence
50 / 60Hz
Indice de protection
IPX4
Classe d'isolation
F
Unité de vente
Pièce
Garantie fabricant
1 an

Download documentation

FT EVOSTA 2 solaire

Fiche Technique EVOSTA 2 solaire

Download (1.41MB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE)

Voici la liste des références et poids correspondants aux options séléctionnées.
EVO2S0002075180 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/180
Type - Center distance - Diameter EVOSTA 2 SOL 20-75/180
Packed weight 2,3kg
245.41 € tax excl.
Consulter
EVO2S0002075130 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/130
Type - Center distance - Diameter EVOSTA 2 SOL 20-75/130
Packed weight 2,15kg
245.41 € tax excl.
Consulter
EVO2S0207513026 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/130 26
Type - Center distance - Diameter EVOSTA 2 SOL 20-75/130 26
Packed weight 2kg
245.41 € tax excl.
Consulter
Référence - Désignation Type - Center distance - Diameter Packed weight Prix
EVO2S0002075180 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/180 EVOSTA 2 SOL 20-75/180 2,3kg 245.41 € tax excl.
EVO2S0002075130 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/130 EVOSTA 2 SOL 20-75/130 2,15kg 245.41 € tax excl.
EVO2S0207513026 - EVOSTA 2 SOLAIRE Circulator, Head Up to 7.5 m (CE) - EVOSTA 2 SOL 20-75/130 26 EVOSTA 2 SOL 20-75/130 26 2kg 245.41 € tax excl.
