CW617N brass vertical-lift check valve with brass disc 1" (26/34)

Clapet à levée verticale
Clapet de non-retour à levée verticale laiton titré CW617N à obturateur laiton
search
  • Clapet de non-retour à levée verticale laiton titré CW617N à obturateur laiton
  • NOMENCLATURE 308
  • DIMENSIONS ( en mm ) 308
  • POSITIONS DE MONTAGE 308

Photos non contractuelles

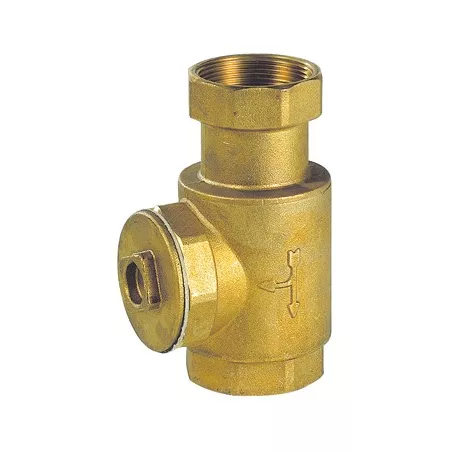

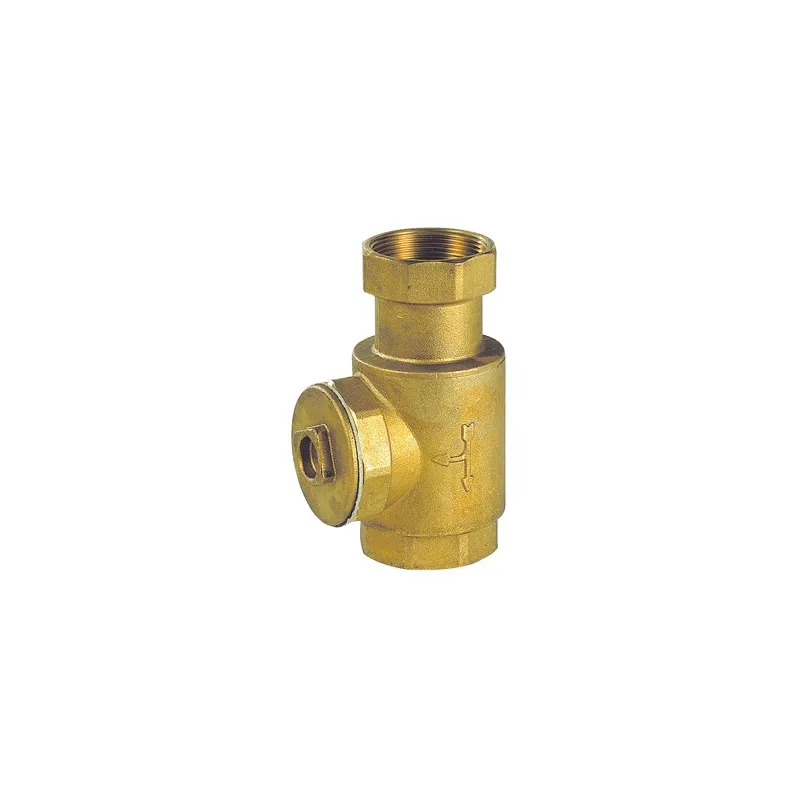

CW617N brass vertical-lift check valve with brass disc

Also known as: pile valve or pendulum valve

Applications:

  • Heating, water supply, distribution, and drainage systems
  • Minimum permissible temperature Ts: +0°C
  • Maximum permissible temperature Ts: +90°C
  • Maximum allowable pressure PN: 16 bar

Available in:

  • Female–Female BSP cylindrical model from DN 1" to DN 2"

Follow the flow direction indicated on the body by an arrow

Plus de détails
Normes et certifications : ISO 9001 DNVType de raccordement : Entre brides PN10-16-25-401
1" (26/34)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€63.53 Tax included

52.94 € tax excl.

Unité de vente : Pièce
30800L000BFF025
Diameter (in inches): 1" (26/34)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Certificates materials pour CW617N brass vertical-lift check valve with brass disc

Would you like to order materials that require a material certificate?

Here are the steps to follow :

1. Add product to cart.

2. Vérifiez que la référence produit actuellement sélectionnée corresponde au produit concerné et ajoutez au panier le material certificate desired).

Currently selected product reference : --

Complément d'information CW617N brass vertical-lift check valve with brass disc

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Features:

  • Follow the direction of flow (indicated on the body by an arrow)
  • Vertical installation only
  • Straight or right-angle flow (by reversing the internal valve)
  • Natural rubber seal
  • Brass plug
  • With inspection plug
  • Also known as a pile valve or pendulum valve
  • Opening pressure between 50 and 300 mbar

Construction:

  • Body, bonnet, and valve made of brushed CW617N brass
  • Shutter: Brass
  • Seal: Natural rubber
  • Inspection plug: Brass
  • Dimensions: DN 1" to 2"
  • Connection: Female / Female BSP
  • Material: Brass body

Standards:

  • Manufactured in accordance with ISO 9001:2008
  • DIRECTIVE 97/23/EC: Products excluded from the directive (Article 1, § 3.2)
  • Cylindrical BSP female thread in accordance with ISO 228-1

Nominal Ø 1" 1"1/4 1-1/2" 2"
PS 16 16 16 16

Caractéristiques techniques CW617N brass vertical-lift check valve with brass disc

Data sheet

Reference
30800L000BFF025
Type de clapet / filtre
Horizontal Système à levée verticale Équerre par inversion du clapet interne
Corps
Laiton titré CW617N
Obturateur
laiton
Joint
Caoutchouc
Entraxe
En fonction du modèle choisi
Type de raccordement
Entre brides PN10-16-25-40
Diamètre
En fonction du modèle choisi
Pression de service
16B
Température minimum
0°C
Température maximum
90°C
Fluide admissible
Eau Eau chauffage Eau glacée et climatisation réseaux d'adduction et distribution d'eau
Normes et certifications
ISO 9001 DNV
Normalisation
Directive 2014/68/UE : produits exclus (article 1, § 2b)
Équipements
Bouchon
Possibilité de certificat 3.1
Oui
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8029437009808

Download documentation

NM clapet laiton bronze inox

Instructions montage clapets laiton bronze et inox taraudés

Download (39.93KB)

FT 308

Fiche technique Clapet de non-retour à levée verticale laiton titré CW617N 308

Download (721.06KB)

Caractéristiques liées à la version du produit CW617N brass vertical-lift check valve with brass disc

Voici la liste des références et poids correspondants aux options séléctionnées.
30800L000BFF025 - CW617N brass vertical-lift check valve with brass disc - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 0,5775kg
52.94 € tax excl.
Consulter
30800L000BFF032 - CW617N brass vertical-lift check valve with brass disc - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 0,8925kg
63.12 € tax excl.
Consulter
30800L000BFF040 - CW617N brass vertical-lift check valve with brass disc - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 1,134kg
79.01 € tax excl.
Consulter
30800L000BFF050 - CW617N brass vertical-lift check valve with brass disc - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 1,953kg
95.94 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
30800L000BFF025 - CW617N brass vertical-lift check valve with brass disc - 1" (26/34) 1" (26/34) 0,5775kg 52.94 € tax excl.
30800L000BFF032 - CW617N brass vertical-lift check valve with brass disc - 1"1/4 (33/42) 1"1/4 (33/42) 0,8925kg 63.12 € tax excl.
30800L000BFF040 - CW617N brass vertical-lift check valve with brass disc - 1"1/2 (40/49) 1"1/2 (40/49) 1,134kg 79.01 € tax excl.
