Adapter and clip for branching off the HYDRONIC manifold

Adaptateur et clip pour dérivation du collecteur type HYDRONIC
search
  • Adaptateur et clip pour dérivation du collecteur type HYDRONIC
  • Schéma d'installation Adaptateur et clip pour dérivation du collecteur type HYDRONIC
  • Schéma de branchement Adaptateur et clip pour dérivation du collecteur type HYDRONIC

Photos non contractuelles

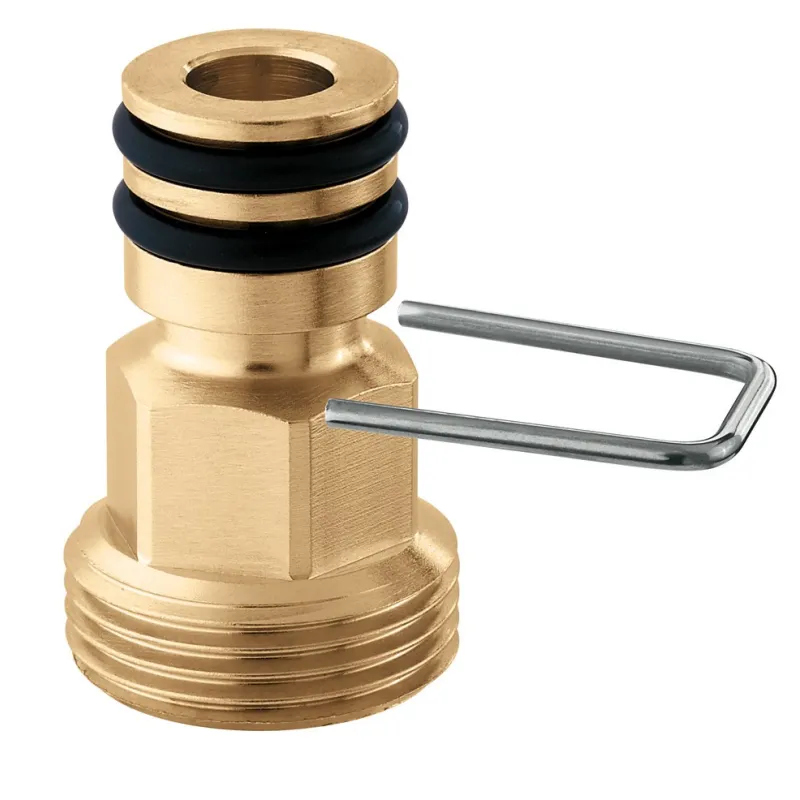

Adapter and clip for HYDRONIC-type manifold

  • Compatible fluids: water, glycol solutions
  • Maximum glycol content: 30%
  • Max. operating pressure: 10 bar
  • Temperature range: 0–100°C, 5–60°C (when installed in manifold 670)
  • Connection: 3/4” M - Ø 18 - clip-on mounting
1
Are you a professional?

Log in to find out your discount.

€5.27 Tax included

4.39 € tax excl.

Unité de vente : Pièce
ADAHY0000000000
Quantity

Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information Adapter and clip for branching off the HYDRONIC manifold

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Specifications:

  • Body: brass EN 12164 CW614N
  • Seal: double EPDM O-ring
  • Mounting clip: stainless steel

Connecting the pipes of the various loops:

Installing pipes on manifolds is often difficult due to the limited space available at the manifold branches. To facilitate this installation, the Caleffi system allows the plastic pipe fitting to be screwed onto an adapter outside the manifold beforehand.
Once tightened, the adapter can then be snapped onto the corresponding manifold branch and secured using the clip provided for this purpose.

Caractéristiques techniques Adapter and clip for branching off the HYDRONIC manifold

Data sheet

Reference
ADAHY0000000000
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615120974
