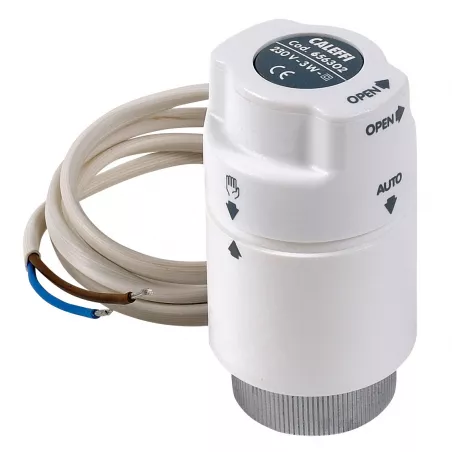

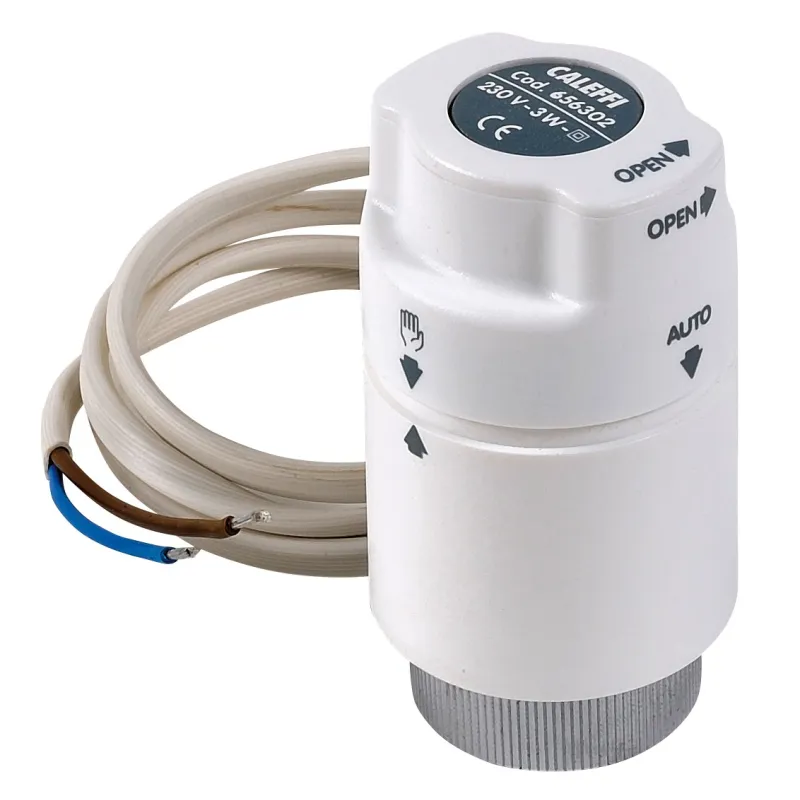

230V electrothermal head with manual opening option

Features:

• Normally closed
• Power supply: 230 V (AC)
• Inrush current: ≤ 1 A
• Steady-state current: 230 V (AC) = 13 mA
• Steady-state power consumption: 3 W
• Auxiliary contact breaking capacity: (code 656312/14): 0.8 A (230 V)
• Protection rating: IP 40
• Double-insulated version: CE
• Max. ambient temperature: 50°C
• Operating time: opening and closing from 120 s to 180 s
• Power cord length: 80 cm

Materials:

• Protective housing: self-extinguishing polycarbonate (code 656312/14) RAL 9002 gray
• Color: (code 656302/04) white RAL 9010

Operating principle:

When de-energized, the device (control + valve) is "normally closed."
When energized, the valve opens under the action of the expandable wax thermostatic element, directly controlled by a PTC resistor.
Design features The 6563 series electrothermal control is equipped with a valve opening position indicator in automatic mode, a handle for manually opening the valve, and a mechanism for returning to automatic mode when power is restored.
The presence of the manual operating handle and the automatic return from manual to automatic mode is particularly useful during the testing phase or during system maintenance to:

• perform hydraulic checks without necessarily having to connect or power the controls.
• leave the handle in the manual position after the checks are complete.

In this case, the control automatically returns to automatic mode when power is restored to the system.
