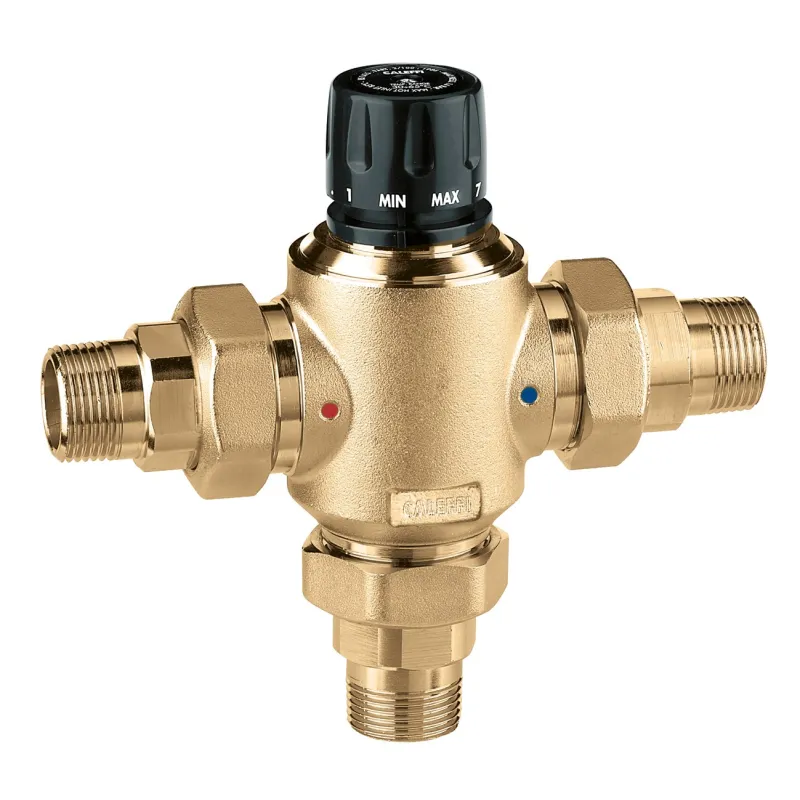

523 Thermostatic Centralized Mixer for Multi-Unit Buildings

Function:

The MT523 thermostatic mixer, installed at the tank outlet, delivers domestic hot water at a constant temperature. It provides high flow rates with excellent control precision.

  • Adjustable mixed water temperature from 30 to 65°C (from 36 to 60°C for 1-1/2" and 2" models)
  • Field-serviceable cartridge for maintenance (*flow rate at 1 bar differential pressure)

With anti-scald safety feature; total shut-off of mixed water flow for 3/4" models.
Above this size, flow is limited to 4% of the nominal flow rate.

Plus de détails
Normes et certifications : Certification ACSType de raccordement : Á visser BSP (pas du gaz)Fluide admissible : Eau sanitaire et potable1
3/4" (20/27)
Are you an individual?
Are you a professional?

Log in to find out your discount.

€879.49 Tax included

732.91 € tax excl.

Unité de vente : Pièce
MT523L000000M20
Diameter (in inches): 3/4" (20/27)
Quantity

Consulter les produits disponibles sous forme de liste
Are you an individual?

Save time and have it delivered to your workplace..

Are you a professional?

Turn your personal account into a pro account and get discounts and preferential rates.. More about the pro account

Complément d'information 523 Centralized Thermostatic Mixer for Multi-Unit Buildings

The tables and information provided on this page are for indicative purposes only. For tolerances and exact specifications, please refer to the applicable product standards.

Technical specifications:

  • Max. static pressure: 14 bar / Dynamic pressure: 5 bar
  • Max. temperature: 85°C
  • Maximum pressure ratio EF/EC: 2:1
  • Minimum temperature difference between EC and EM for optimal operation: 15°C

Construction:

  • Stamped brass body
  • Stainless steel spring
  • EPDM seals

Info:

The thermostatic mechanism of the 523 mixer valve operates a double valve and allows for high flow rates.
The temperature can be precisely adjusted across the flow range. The control mechanism is housed in a removable cartridge. This makes maintenance extremely easy.

Part numberConnectionrangeMax. flow rateAccessories
MT523L000000M20 3/4" M x 3 30–65°C 4500 l/h * with check valves
MT523L000000M25 1" M x 3 30–65°C 6,900 l/h * with check valves
MT523L000000M32 1-1/4" M x 3 30–65°C 9,100 l/h * with check valves
MT523L000000M40 1-1/2" M x 3 36–60°C 14,500 l/h *
MT523L000000M50 2" M x 3 36–60°C 19,000 l/h *

Caractéristiques techniques 523 Centralized Thermostatic Mixer for Multi-Unit Buildings

Data sheet

Reference
MT523L000000M20
Matière
Laiton
Joint
EPDM
Internes
Inox
Type de raccordement
Á visser BSP (pas du gaz)
Raccordement
MMM (mâle - mâle - mâle)
Diamètre
En fonction du modèle choisi
Pression maximum
5 bar
Température maximum
85°C
Fluide admissible
Eau sanitaire et potable
Normes et certifications
Certification ACS
Unité de vente
Pièce
Garantie fabricant
1 an

Specific References

ean13
8016615072983

Download documentation

FT MT52320

Fiche technique Mitigeurs centralisés 523 thermostatiques

Download (548.42KB)

Accessoires et équipements (vendus séparément)

Caractéristiques liées à la version du produit 523 Centralized Thermostatic Mixer for Multi-Unit Buildings

Voici la liste des références et poids correspondants aux options séléctionnées.
MT523L000000M20 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 3/4" (20/27)
Diameter (in inches) 3/4" (20/27)
Packed weight 2,07165kg
732.91 € tax excl.
Consulter
MT523L000000M25 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1" (26/34)
Diameter (in inches) 1" (26/34)
Packed weight 3,339kg
925.47 € tax excl.
Consulter
MT523L000000M32 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1"1/4 (33/42)
Diameter (in inches) 1"1/4 (33/42)
Packed weight 3,30435kg
1012.41 € tax excl.
Consulter
MT523L000000M40 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1"1/2 (40/49)
Diameter (in inches) 1"1/2 (40/49)
Packed weight 7,94955kg
1440.95 € tax excl.
Consulter
MT523L000000M50 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 2" (50/60)
Diameter (in inches) 2" (50/60)
Packed weight 8,2005kg
1664.52 € tax excl.
Consulter
Référence - Désignation Diameter (in inches) Packed weight Prix
MT523L000000M20 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 3/4" (20/27) 3/4" (20/27) 2,07165kg 732.91 € tax excl.
MT523L000000M25 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1" (26/34) 1" (26/34) 3,339kg 925.47 € tax excl.
MT523L000000M32 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1"1/4 (33/42) 1"1/4 (33/42) 3,30435kg 1012.41 € tax excl.
MT523L000000M40 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 1"1/2 (40/49) 1"1/2 (40/49) 7,94955kg 1440.95 € tax excl.
MT523L000000M50 - 523 Centralized Thermostatic Mixer for Multi-Unit Buildings - 2" (50/60) 2" (50/60) 8,2005kg 1664.52 € tax excl.
